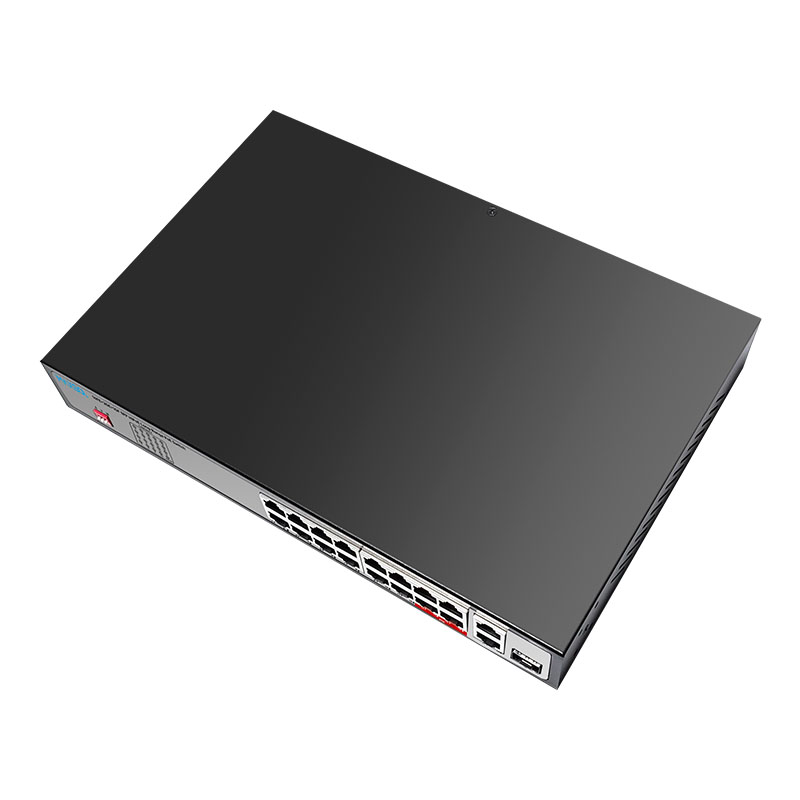

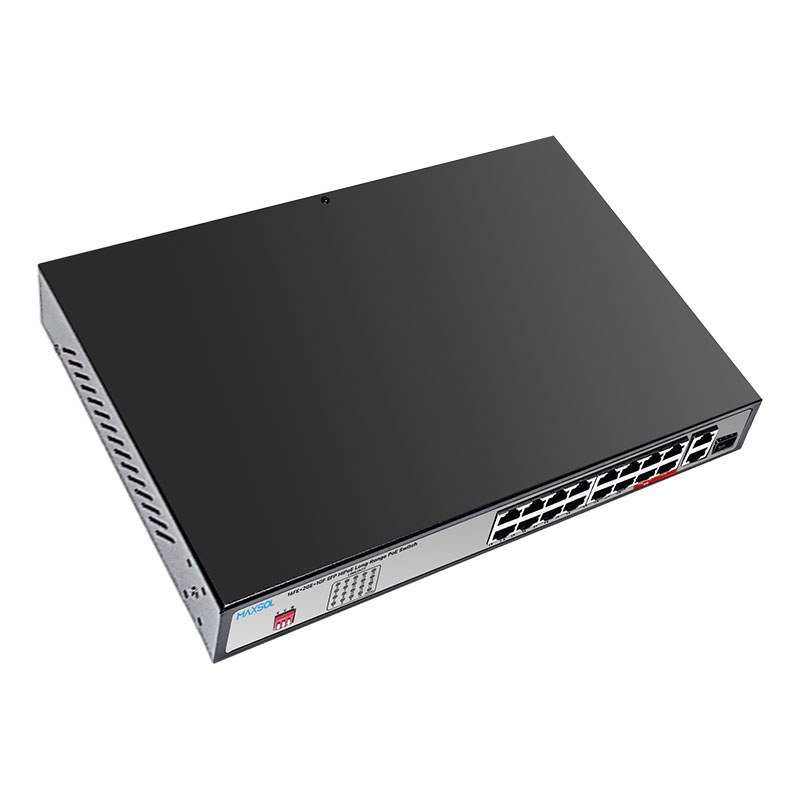

16-Port Hi-PoE Switch with Gigabit and SFP Uplinks
16-port Fast Ethernet PoE switch with 60W Hi-PoE support, 2 Gigabit RJ45 uplinks, 1 SFP slot, VLAN isolation, Extend mode and watchdog.
Key features
- 16FE+2GE+1GF Uplink HiPoE 300M Long Range PoE Switch
- Supports smart watchdog function to monitor compliant PD
- Port 13-16 supports Hi-PoE power up to 60W fit IEEE 802.3bt compliant PDs
- Port 1-12 supports PoE 30W fit IEEE 802.3af/at compliant PDs
- Support VLAN
- Internal power adapter supply 200W (included)
- Support port priority
Specification
Interfaces
- Model
- PS11602FE
- Fixed Port
16*10/100Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX RJ45 ports (Data)
1*100/1000Base-X uplink SFP fiber slot (Data)
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000base-X;
IEEE802.3x.
- Ethernet Port Feature
- 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
- Forwarding Mode
- Store and Forward
PoE
- PoE Port
- Port 1-16 support PoE @ IEEE802.3af/at
- Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-16 Port support each port Isolation & VLAN;
W: Turn on, 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
- Fan
- Non-Fan, silent working status can satisfy more users with different requirement.
- PoE Standard
- IEEE802.3af/at
Switch Property
- Switching Capacity
- 9.2Gbps (non-blocking)
- Forwarding Rate
- 6.84Mpps
- MAC address table
- 8K
- Buffer Memory
- 4M
- Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-TX: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX Power Per Port
- Port 1-14 30W, port 15-16 60W
- Total PWR / Input Voltage
- 200W
- Power Consumption
Standby:<5W
Full load:<200W
Physical Characteristics

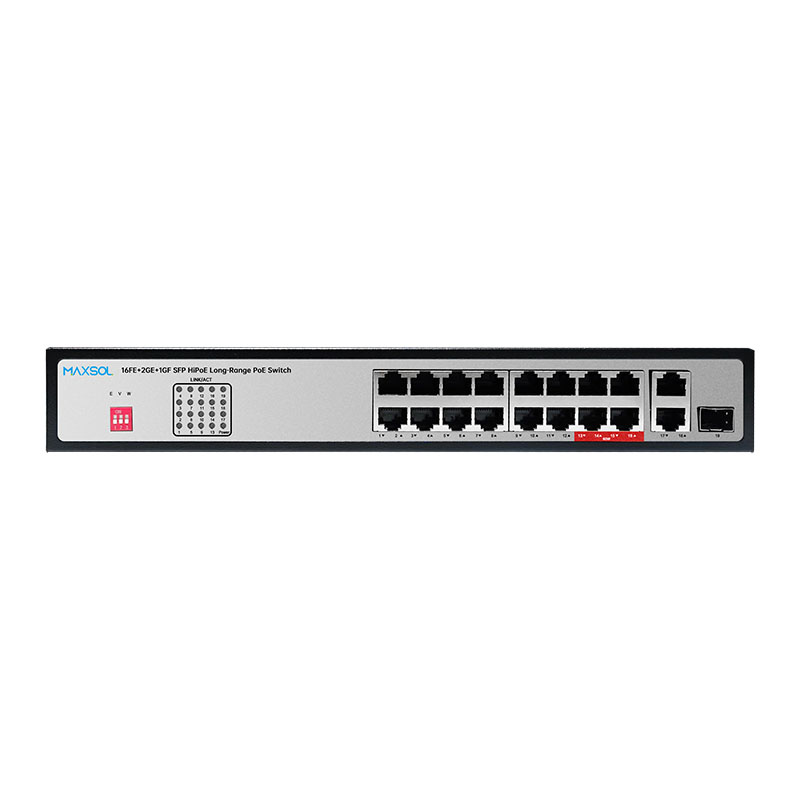

- LED Indicator
Power indicator: PWR (Green);
Network indicator: 1-16(Link/Act)/ (Green),17-19(Link/Act)/ (Green)

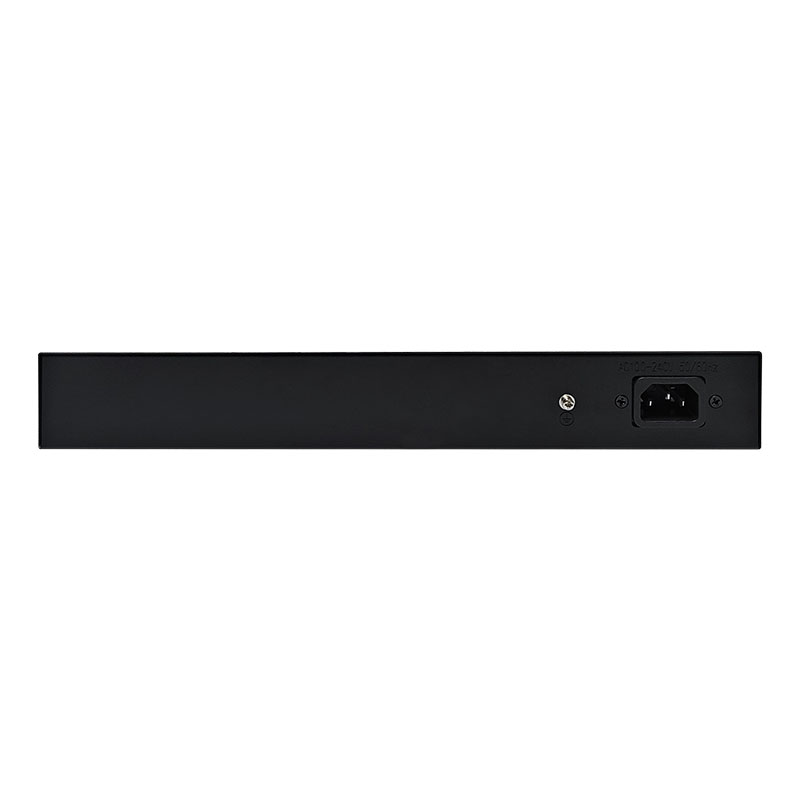

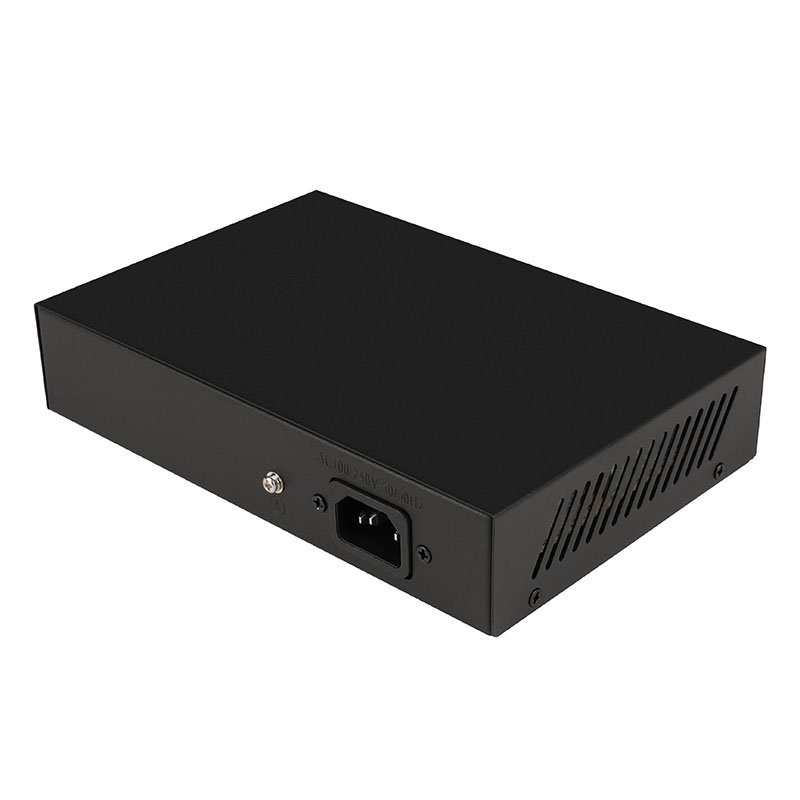

- Power Supply
- Build-in power adaptor AC100~240V 50-60Hz,200W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 310*205*44mm
Certification
- Certification
- CE, FCC, RoHS

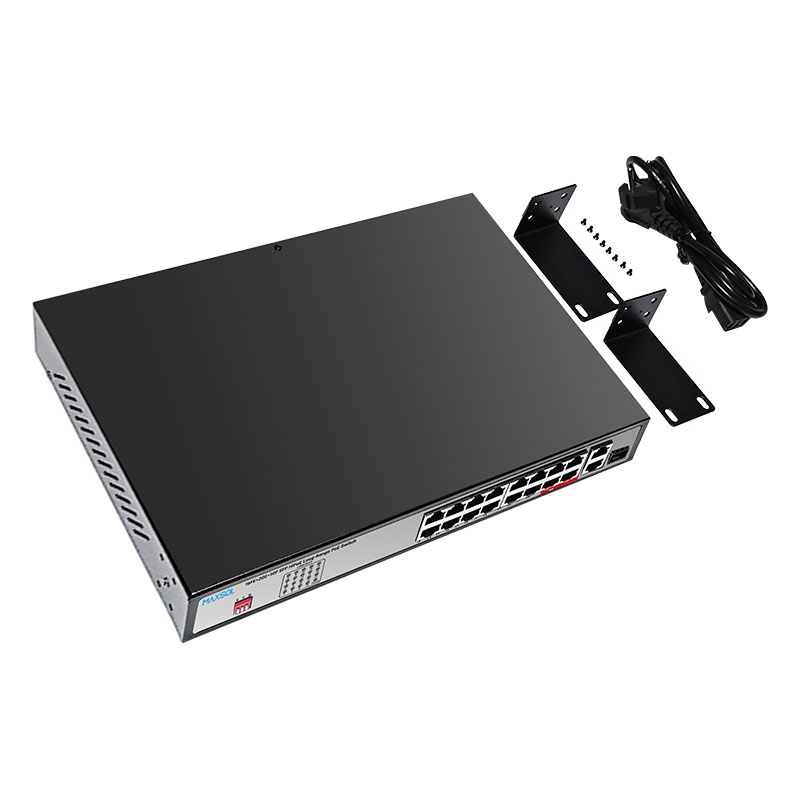

Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Hanging Ears
- 1 pcs
- Quick installation guide
- 1 pcs
Interfaces
- Model
- PS11602FE
- Fixed Port
16*10/100Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX RJ45 ports (Data)
1*100/1000Base-X uplink SFP fiber slot (Data)
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000base-X;
IEEE802.3x.
- Ethernet Port Feature
- 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
- Forwarding Mode
- Store and Forward
PoE
- PoE Port
- Port 1-16 support PoE @ IEEE802.3af/at
- Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-16 Port support each port Isolation & VLAN;
W: Turn on, 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
- Fan
- Non-Fan, silent working status can satisfy more users with different requirement.
- PoE Standard
- IEEE802.3af/at
Switch Property
- Switching Capacity
- 9.2Gbps (non-blocking)
- Forwarding Rate
- 6.84Mpps
- MAC address table
- 8K
- Buffer Memory
- 4M
- Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-TX: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX Power Per Port
- Port 1-14 30W, port 15-16 60W
- Total PWR / Input Voltage
- 200W
- Power Consumption
Standby:<5W
Full load:<200W
Physical Characteristics
- LED Indicator
Power indicator: PWR (Green);
Network indicator: 1-16(Link/Act)/ (Green),17-19(Link/Act)/ (Green)
- Power Supply
- Build-in power adaptor AC100~240V 50-60Hz,200W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 310*205*44mm
Certification
- Certification
- CE, FCC, RoHS
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Hanging Ears
- 1 pcs
- Quick installation guide
- 1 pcs
