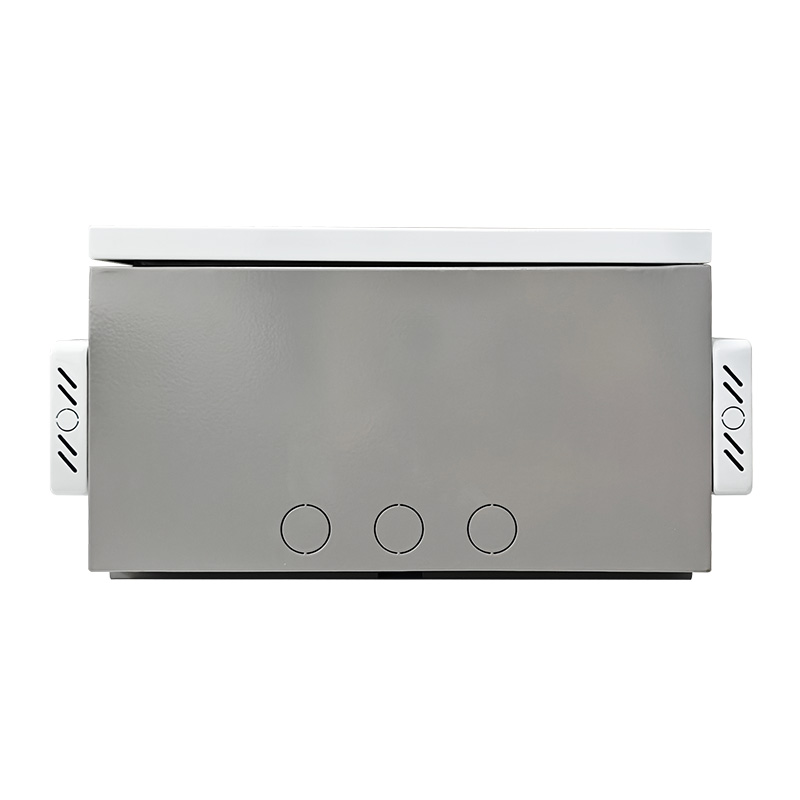

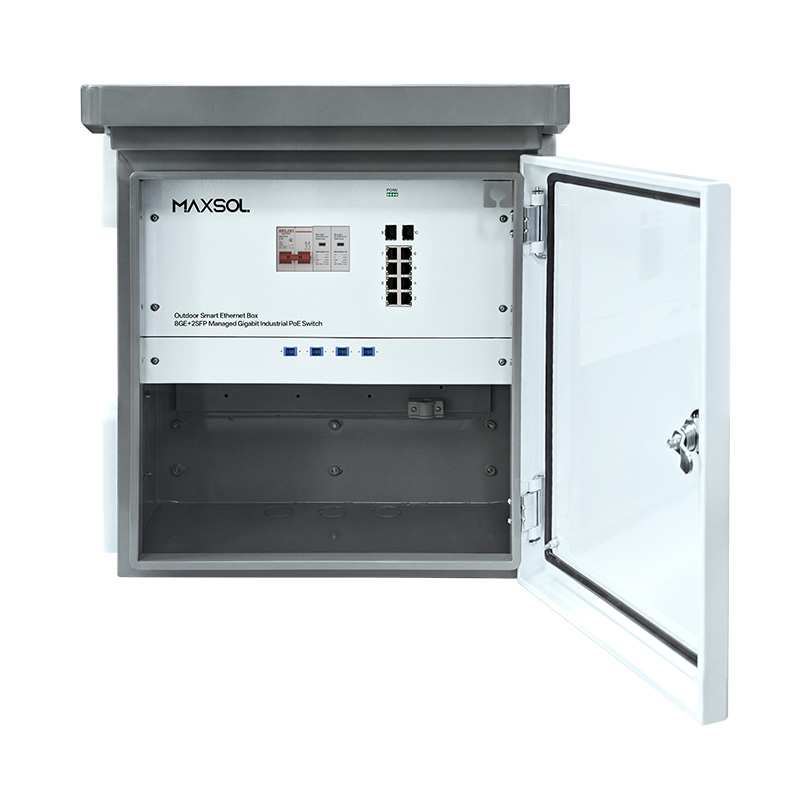

8GE+2GF Managed Outdoor Industrial PoE Switch Box

IP65 managed outdoor industrial PoE switch box with 8 Gigabit PoE ports, 2 Gigabit SFP slots, Layer 2 management, and a built-in 240W UPS power module.

Key features

  • 8GE+2GF Managed Outdoor Industrial PoE Switch Box
  • Layer 2 management with VLAN, QoS, multicast, LLDP, STP, ERPS, PoE management, and SNMP
  • Input voltage: AC100-240V, 50/60Hz
  • Surge Proof:（8KV/6KV)；ESD:(8K/15K)
  • IP65 ingress protection
  • -40℃～75℃ working temperature
  • Built-in 240W DC55V UPS power module
Send Inquiry By Emailsales@maxsol-tech.com
DatasheetDownloadView

Specification

Interfaces

Model
SBOX2802SFG-I
Interface

8*10/100/1000Base-T PoE ports (Data/Power)

2*100/1000Base-X uplink SFP fiber slot port (Data)

Ethernet Port
Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption

PoE

PoE Standard
IEEE802.3af/at/bt (Ports 1-2 support up to 90W PoE output)
SFP Port
Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Power Adaptor
240 W

Physical Characteristics

LED Indicators
PWR，OPT, NMC，ALM
Power Interface
AC Input
Optical Cable

Multimode: 850nm 0 ~ 550M,

single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Network Topology
Support Star topology, Bus topology, Tree Topology, Hybrid topology
Input voltage
AC100-240V, 50/60Hz; built-in 240W DC55V UPS power module
Total Power consumption
≤10W without PoE (full load); ≤250W with PoE (full load)
External battery backup
Supports DC12V/24V/48V lead-acid or lithium battery (not included)
Voltage Alarm
Support

Switch Property

Switching capacity
20 G
Packet forwarding rate
14.88 Mpps
MAC address table
8 K
Buffer
4.1 M
Forwarding delay
<10 us
MDX/MIDX
Support
Jumbo Frame
Support 10K Bytes
Network Topology

Ring topology

Star topology

Bus topology

Tree Topology

Hybrid topology

Layer 2/3 Switching

User Management
Support
System Log
Support
Upgrade Firmware
Support
Configuration File Download/Upload
Support
SNMP
Support
WEB Managed
Support
CLI
Support
Telnet/SSH
Support
RMON
Support
Surveillance VLAN
Support
MAC VLAN
Support
Etherchannle/ 802 .3ad
Support
LACP
Support
Interface Speed
Support
Duplex Mode
Support
Flow Control
Support
Jumbo frame
Support
DHCP Client
Support
SNTP Client
Support
Port Statistics
Support
Protected Ports
Support
Ethernet Ring Protection Switching
Support
LLDP
Support
LLDP 802.1 TLV
Support
MSTP / RSTP / STP
Support
STP BPDU Filter
Support
STP BPDU guard
Support
STP Port Fast
Support
IGMP Snooping
Support
MLD Snooping
Support
MVR
Support
IPV4
Support
IPV6
Support
ARP
Support
Loop back Interface
Support
DHCP Server
Support
DNS Server
Support

Environment

Operating temperature

-40℃~+75℃

The device is tested for 4 hours at temperatures in 85℃

Storage temperature
-40℃~+85℃
Relative humidity
5%~95% non-condensing
Thermal methods
Auto Fans Cooling
MTBF
100,000 hours

Cabinet Description

Product size
450 × 500 × 284 mm
Cooling fan
220V automatic cooling fan, 3000 RPM ±10%, 92 × 92 × 25 mm
Miniature circuit breaker
230/400VAC, 6-63A, 50Hz, -35℃ to +75℃, IP40

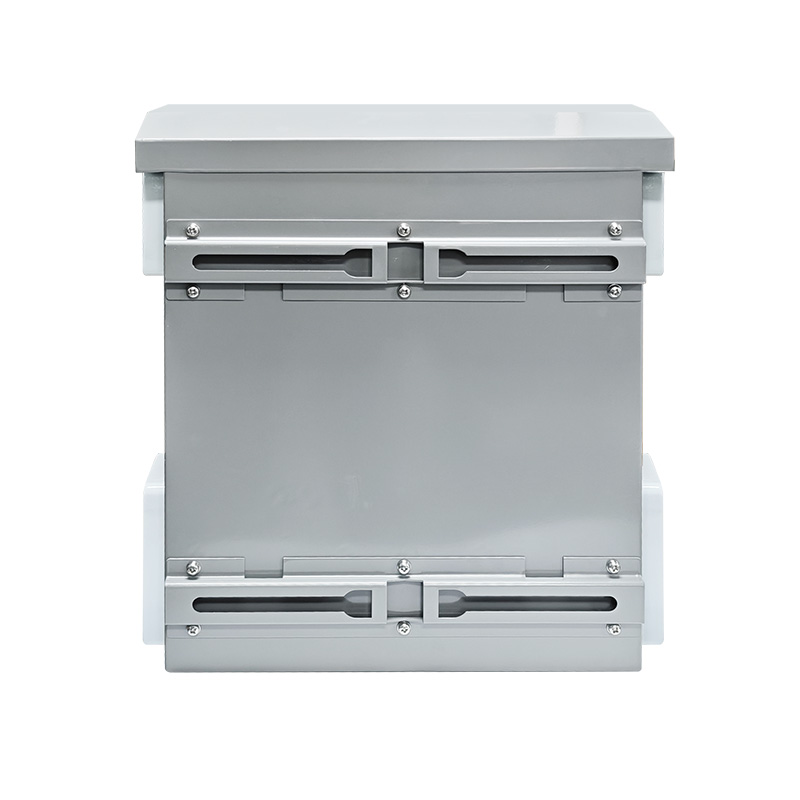

Installation Method
Wall Mounting/Pole Mounting

EMC & Ingress Protection

IP Level
IP65
Surge protection of Power
IEC 61000-4-5, 8kV/6kV
Surge protection of Ethernet port
IEC 61000-4-5, 8kV/6kV
ESD
IEC 61000-4-2 Level 4, 8kV/15kV
