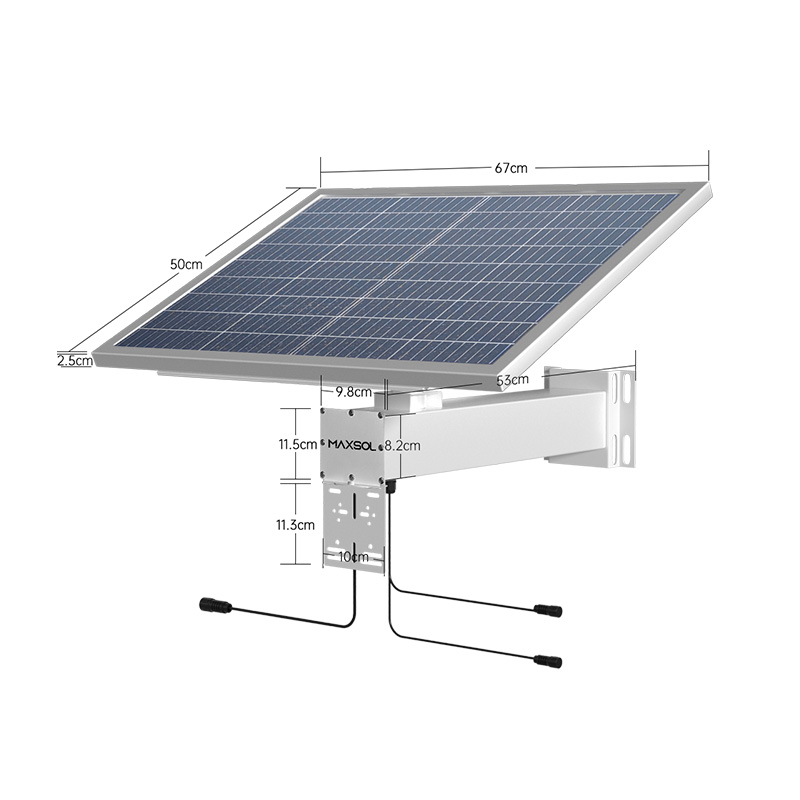

60W Solar Power System with 384Wh LiFePO4 Battery
Robust 60W solar solution for off-grid CCTV. 384Wh LiFePO4 battery with MPPT & RS485 support. High-efficiency power for industrial security integrators.
Key features
- CCTV Solar Power Supply 60W30AH 384WH Solution
- Solar panel: 60W monocrystalline silicon solar panel
- Battery: 30AH12.8V LifePO4 Battery, total: 384WH
- MPPT Solar Controller, 3*DC12V Output Port
- Installation Bracket for Solar Panel and Battery
- Other accessories: Battery Mount, Screws, DC Cable, etc
- Optional Selection: RS485
Specification
Solar Panel Specification
- Model
- CS6030 (60W30AH12.8V)
- STC peak power
- 60W (single piece)
- Module packaging
- Tempered glass/EVAcell/EVA backplane
- Solar silicon crystal
- Mono-crystalline silicon
- Crystalline silicon characteristics
- High efficiency of strong light conversion
- Cell size and quantity
- 210*40/33
- Maximum output power
- 60W
- Maximum operating voltage
- 19.38V
- Maximum operating current
- 3.10A
- Open circuit voltage
- 22.0V
- Short circuit current
- 3.47A
- Tolerance
- 5%
- Maximum system open circuit voltage
- 1000V
- Solar Panel Dimensions
- 530mm*350mm*25mm
- Operating temperature range
- -40~85℃
- Relative humidity
- <90%
- Frame thickness
- 0.88MM
- Frame
- Anodized aluminum alloy
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/30AH (384WH)
- Charging indication
- LED status indicator
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 2-way output
- Output voltage
- 12V±50mV
- Output current
- ≤3A±50mA (total of two outputs)
- Discharge utilization
- ≤90%
- Operating temperature
Charging: 0~45℃
Discharging: -10~55℃ (accuracy: ±1℃)
- Over-current protection
- >4A (over-current protection for more than 3 seconds, green light flashes)
- Overcharge and over-discharge protection
Over-discharge protection: <10V;
Over-charge protection: >14.6V (accuracy: ±0.1V)
- Output short circuit protection
- Green light flashes, green light stays on after short circuit is removed
- RS-485 communication
- Output power, voltage, current and other information according to customer needs
- Battery heating function
- When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃
- Heating power
- Maximum 15W
- Storage temperature
- -20~35℃
- Battery case Dimensions
- 500mm*98mm*82mm
- Product capacity
- 20%-30%
- Battery material
- Lithium iron phosphate/LifePO4 battery
Battery life and charging
- Power off battery life
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Power on battery life
- About 25 days (normal temperature, no load)
- Load battery life
- About 3 days (room temperature, no charging, mounted mobile camera sample + sound column measurement)
- Recharge time (0~100% power)
Conditions: normal temperature, 60W photovoltaic panel, standard light duration 4~5 hours/day
Without load: about 1 day
With load: about 1.2 days
All-in-one Package
- Size
- 730mm*520mm*240mm
- Weight (Include bracket and accessories)
- 11.5KG
- Content
1* Solar Panel
1* Battery case (inside with battery) with DC output connectors
1* Bracket for Solar panel &Battery case
1* U Shape mount for Pole installation
1* Screws pack
Solar Panel Specification
- Model
- CS6030 (60W30AH12.8V)
- STC peak power
- 60W (single piece)
- Module packaging
- Tempered glass/EVAcell/EVA backplane
- Solar silicon crystal
- Mono-crystalline silicon
- Crystalline silicon characteristics
- High efficiency of strong light conversion
- Cell size and quantity
- 210*40/33
- Maximum output power
- 60W
- Maximum operating voltage
- 19.38V
- Maximum operating current
- 3.10A
- Open circuit voltage
- 22.0V
- Short circuit current
- 3.47A
- Tolerance
- 5%
- Maximum system open circuit voltage
- 1000V
- Solar Panel Dimensions
- 530mm*350mm*25mm
- Operating temperature range
- -40~85℃
- Relative humidity
- <90%
- Frame thickness
- 0.88MM
- Frame
- Anodized aluminum alloy
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/30AH (384WH)
- Charging indication
- LED status indicator
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 2-way output
- Output voltage
- 12V±50mV
- Output current
- ≤3A±50mA (total of two outputs)
- Discharge utilization
- ≤90%
- Operating temperature
Charging: 0~45℃
Discharging: -10~55℃ (accuracy: ±1℃)
- Over-current protection
- >4A (over-current protection for more than 3 seconds, green light flashes)
- Overcharge and over-discharge protection
Over-discharge protection: <10V;
Over-charge protection: >14.6V (accuracy: ±0.1V)
- Output short circuit protection
- Green light flashes, green light stays on after short circuit is removed
- RS-485 communication
- Output power, voltage, current and other information according to customer needs
- Battery heating function
- When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃
- Heating power
- Maximum 15W
- Storage temperature
- -20~35℃
- Battery case Dimensions
- 500mm*98mm*82mm
- Product capacity
- 20%-30%
- Battery material
- Lithium iron phosphate/LifePO4 battery
Battery life and charging
- Power off battery life
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Power on battery life
- About 25 days (normal temperature, no load)
- Load battery life
- About 3 days (room temperature, no charging, mounted mobile camera sample + sound column measurement)
- Recharge time (0~100% power)
Conditions: normal temperature, 60W photovoltaic panel, standard light duration 4~5 hours/day
Without load: about 1 day
With load: about 1.2 days
All-in-one Package
- Size
- 730mm*520mm*240mm
- Weight (Include bracket and accessories)
- 11.5KG
- Content
1* Solar Panel
1* Battery case (inside with battery) with DC output connectors
1* Bracket for Solar panel &Battery case
1* U Shape mount for Pole installation
1* Screws pack
