Industrial IP65 ABS Outdoor Distribution Box
Model: IP652

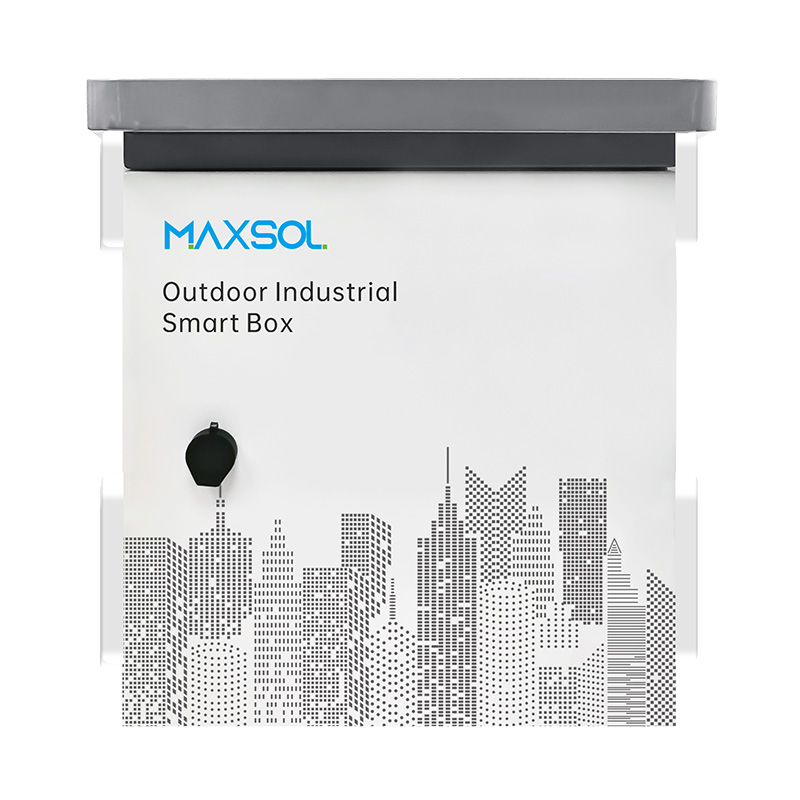

IB552 IP65 IK10 Outdoor Steel Enclosure
IB552 outdoor enclosure with IP65 and IK10 protection, 550 × 450 × 280mm galvanized steel housing, DIN rail and wall or pole mounting.
Key features
- IP65 IK10 Industrial Outdoor Smart Box
- Size: 550x450x280mm
- Material: 1.2mm Galvanized Steel + Powder Coating
- included 4pcs M25 Waterproof Connectors, 3pcs MountingPlates, 1pcs grounding connector
- Support Wall & Pole Mount installation
- Operating Temperature: -40~ 70℃
- Application: Battery,Control, Monitoring, Junction Use
Specification
Basic Information
- Model
- IB552
- Dimensions (length x width x height)
- 550*450*280mm
- Weight（kg）
- 12.7
- Material
- Hot-dip galvanized steel sheet
- Thickness
- 1.2mm
- IP Level
- IP65
- Color
- White+Gray
- Surface Treatment
- Electrostatic Spraying
- Door
- 1
- Installation
- Pole/Wall Mounting
Function
- Function
Junction, Distribution, Electrical, Battery, Control, Monitoring etc.
Outdoor waterproof Enclosure Box，IPC/Wireless AP mounting hole
Package Content
- BOX
- 1PCS
- Quick Installation Guide
- 1PCS
- Waterproof Connector
- 4PCS
- IP Camera/AP/CPE Mounting Plate
- 4PCS
- Key
- 2PCS
- Grounding Connector
- 1PCS
Installation Accessories
- Installation
- Pole/Wall Mounting
- DIN-rail
- 1PCS
- Inside Mounting Plate
- 2PCS (Removable)
- Pole Mounting Accessories
2*1.2m Stainless Steel Cable Ties (50-350mm in diameter)
2*Stainless Steel Universal Clips
- Option Accessory
- Thermostat Switches of fans or other devices according to the temperature.
Basic Information
- Model
- IB552
- Dimensions (length x width x height)
- 550*450*280mm
- Weight（kg）
- 12.7
- Material
- Hot-dip galvanized steel sheet
- Thickness
- 1.2mm
- IP Level
- IP65
- Color
- White+Gray
- Surface Treatment
- Electrostatic Spraying
- Door
- 1
- Installation
- Pole/Wall Mounting
Function
- Function
Junction, Distribution, Electrical, Battery, Control, Monitoring etc.
Outdoor waterproof Enclosure Box，IPC/Wireless AP mounting hole
Package Content
- BOX
- 1PCS
- Quick Installation Guide
- 1PCS
- Waterproof Connector
- 4PCS
- IP Camera/AP/CPE Mounting Plate
- 4PCS
- Key
- 2PCS
- Grounding Connector
- 1PCS
Installation Accessories
- Installation
- Pole/Wall Mounting
- DIN-rail
- 1PCS
- Inside Mounting Plate
- 2PCS (Removable)
- Pole Mounting Accessories
2*1.2m Stainless Steel Cable Ties (50-350mm in diameter)
2*Stainless Steel Universal Clips
- Option Accessory
- Thermostat Switches of fans or other devices according to the temperature.
