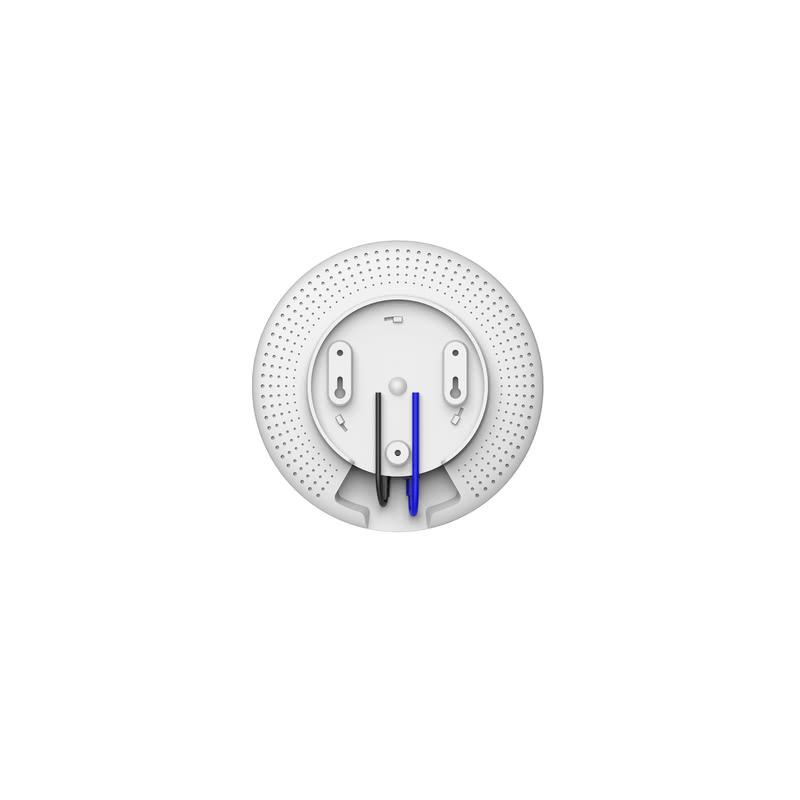

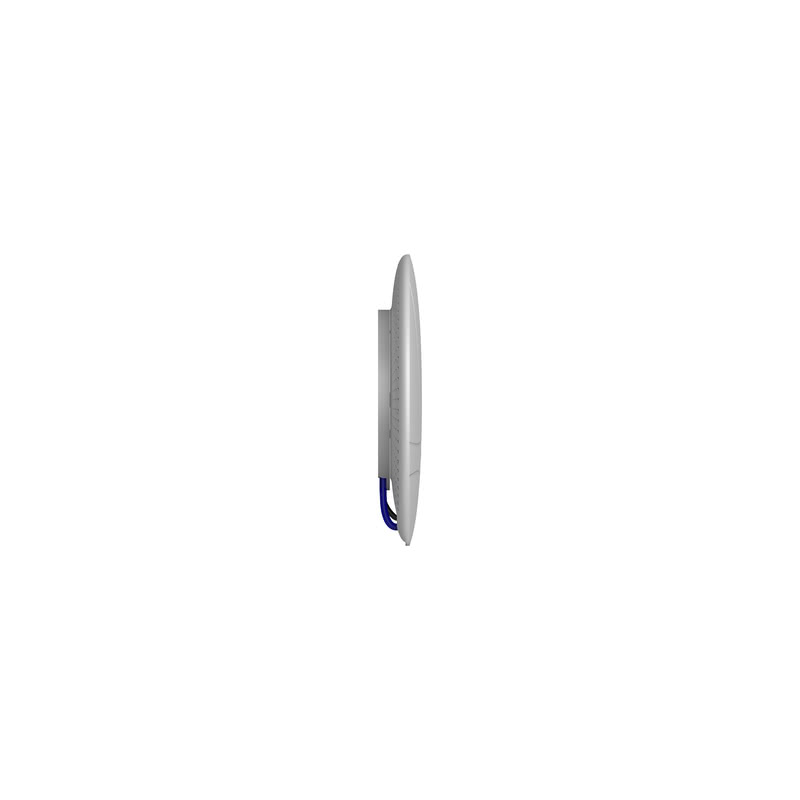

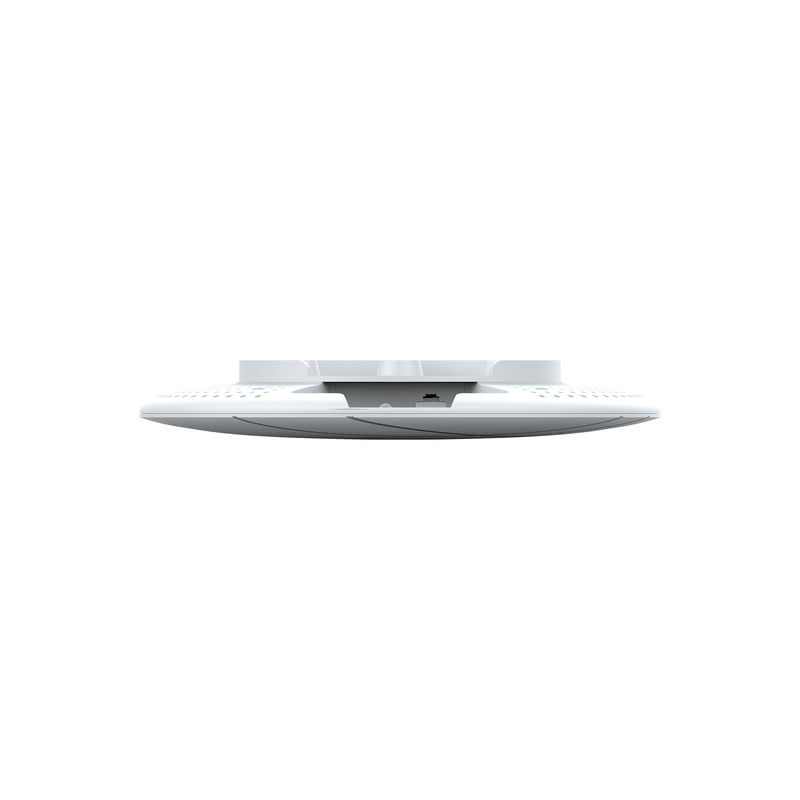

AP306X AX3000 Wi-Fi 6 Ceiling Access Point
AP306X dual-band AX3000 ceiling access point with a Qualcomm processor, Gigabit PoE, Mesh backhaul and WPA3 security for indoor wireless networks.
Key features
- 802.11AX WIFI6 2.4G&5.8G 3000M Indoor Wireless Ceiling AP
- 11AX 2.4GHz 574Mbps+5.8Ghz 2400Mbps
- Qualcomm chipset Dual -core A53(64bit,vB ISA)@1.0GHz , 4Gb DDR3,1Gb nand Flash, access 254users
- 1× Gigabit Port/POE
- 2.4G internal 3.5 dBix2PCS, 5G internal 5dBi x3PCS，All-directional Omni
- Support 48V350mA/ 802.3af/at,12VDC
- Supports AP mode, DHCP routing, up to 254 users, Wi-Fi hotspot and MESH backhaul
- WEB management, local firmware upgrade or centralized online upgrade; WPA/WPA2/WPA3 with mixed-user access
Specification
Hardware Specifications
- Model
- AP306X
- Wi-Fi standard
Wi-Fi 6
5.8 GHz IEEE 802.11ax/ac/n/a
2.4 GHz IEEE 802.11ax/n/b/g
- Wireless speed
AX3000
5 GHz:2400 Mbps (802.11ax,HE160)
2.4 GHz:574 Mbps (802.11ax)
- Antenna
5GHz 5 dBi,Omni-directional
2.4 GHz 3.5 dBi,Omni-directional
- Max EIRP
5 GHz 31 dBm
2.4 GHz 29.5 dBm
EIRP may be limited by country regulations
- SOC
- Dual-core A53(64bit,vB ISA)@1.0GHz
- RAM
- 4Gb DDR3
- FLASH
- 1Gb nand Flash
- Interface
- 1× ETH/POE,1 x DC
- LEDs
- SYS
- Overall dimensions
- 210 x 22.3 mm (with an installation bracket of 8 mm)
- Work environment
Operating temperature:-10℃ to 45℃ Storage temperature:-40℃ to 70℃
Operating humidity:10% to 90%RH (no condensation)
Storage humidity:5% to 90%RH (no condensation)
- Protection level
- 15KV ESD
- Power consumption
- ≤13W
- Power supply method
- 48V300mA /802.3af/at
- Packaging accessories
1 AP
4.Install screws
1.User manual
1.Warranty card
Software Specifications
- Work mode
- AP access point
DHCP routing
- Total number of users connected to the entire system
- 254
- Networking method
- WiFi hotspot
MESH backhaul
- Management approach
- WEB management
- Wireless Security
- WPA,WPA2,WPA3,and Pre-RSNA users are mixedly accessing the network.
- System update
- WEB Local upgrade,centralized management of online upgrade
Hardware Specifications
- Model
- AP306X
- Wi-Fi standard
Wi-Fi 6
5.8 GHz IEEE 802.11ax/ac/n/a
2.4 GHz IEEE 802.11ax/n/b/g
- Wireless speed
AX3000
5 GHz:2400 Mbps (802.11ax,HE160)
2.4 GHz:574 Mbps (802.11ax)
- Antenna
5GHz 5 dBi,Omni-directional
2.4 GHz 3.5 dBi,Omni-directional
- Max EIRP
5 GHz 31 dBm
2.4 GHz 29.5 dBm
EIRP may be limited by country regulations
- SOC
- Dual-core A53(64bit,vB ISA)@1.0GHz
- RAM
- 4Gb DDR3
- FLASH
- 1Gb nand Flash
- Interface
- 1× ETH/POE,1 x DC
- LEDs
- SYS
- Overall dimensions
- 210 x 22.3 mm (with an installation bracket of 8 mm)
- Work environment
Operating temperature:-10℃ to 45℃ Storage temperature:-40℃ to 70℃
Operating humidity:10% to 90%RH (no condensation)
Storage humidity:5% to 90%RH (no condensation)
- Protection level
- 15KV ESD
- Power consumption
- ≤13W
- Power supply method
- 48V300mA /802.3af/at
- Packaging accessories
1 AP
4.Install screws
1.User manual
1.Warranty card
Software Specifications
- Work mode
- AP access point
DHCP routing
- Total number of users connected to the entire system
- 254
- Networking method
- WiFi hotspot
MESH backhaul
- Management approach
- WEB management
- Wireless Security
- WPA,WPA2,WPA3,and Pre-RSNA users are mixedly accessing the network.
- System update
- WEB Local upgrade,centralized management of online upgrade
