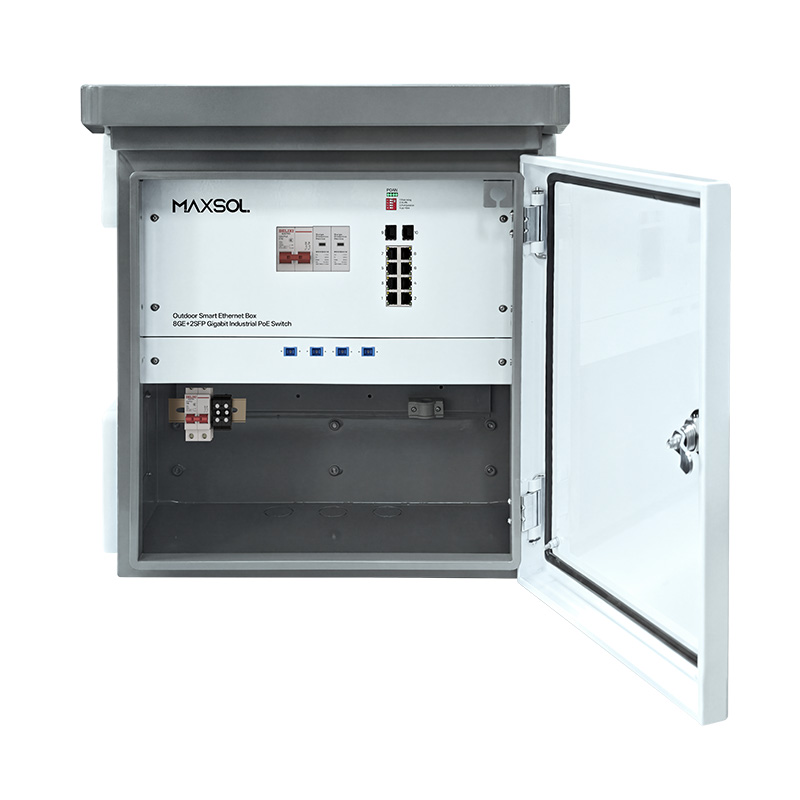

8GE+2GF Unmanaged Outdoor Industrial PoE Switch Box

IP65 unmanaged outdoor industrial PoE switch box with 8 Gigabit PoE ports, 2 Gigabit SFP slots, smart DIP functions, and a 300W power supply.

Key features

8GE+2GF Unmanaged Outdoor Industrial PoE Switch Box
DIP switch supports AI Watchdog, port isolation, VLAN, and port priority + QoS
Input voltage: AC100-240V, 50/60Hz
Surge Proof:（8KV/6KV)；ESD:(8K/15K)
IP65 ingress protection
-40℃～75℃ working temperature
Include 300W power supply

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

Interfaces

Model

SBOX1802SFG-I

Interface

8*10/100/1000Base-T PoE ports (Data/Power)

2*100/1000Base-X uplink SFP fiber slot port (Data)

Ethernet Port

Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption

DIP Switch

AI Watchdog, Port isolation, VLAN, Port Priority +QOS

PoE

PoE Standard: IEEE802.3af/at
PoE Output: Ports 1-8 support IEEE 802.3af/at; 15.4W standard output and up to 30W per port
SFP Port: Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Power Adaptor: 300 W

Physical Characteristics

LED Indicators

PWR，OPT, NMC，ALM

Power Interface

AC Input

Optical Cable

Multimode: 850nm 0 ~ 550M,

single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.

Network Topology

Support Star topology, Bus topology, Tree Topology, Hybrid topology

Input voltage

AC100-240V, 50/60Hz

Total Power consumption (POE)

< 246 W

Voltage Alarm

Support

Layer 2 Switching

Switching capacity: 26 G
Packet forwarding rate: 19.34 Mpps
MAC address table: 16 K
Buffer: 2 M
Forwarding delay: <5 us
MDX/MIDX: Support
Jumbo Frame: Support 10K Bytes
WatchDog: Support
Port Isolation: Support

Environment

Operating temperature

-40℃~+75℃

The device is tested for 4 hours at temperatures in 85℃

Storage temperature

-40℃~+85℃

Relative humidity

5%~95% non-condensing

Thermal methods

Auto Fans Cooling

MTBF

100,000 hours

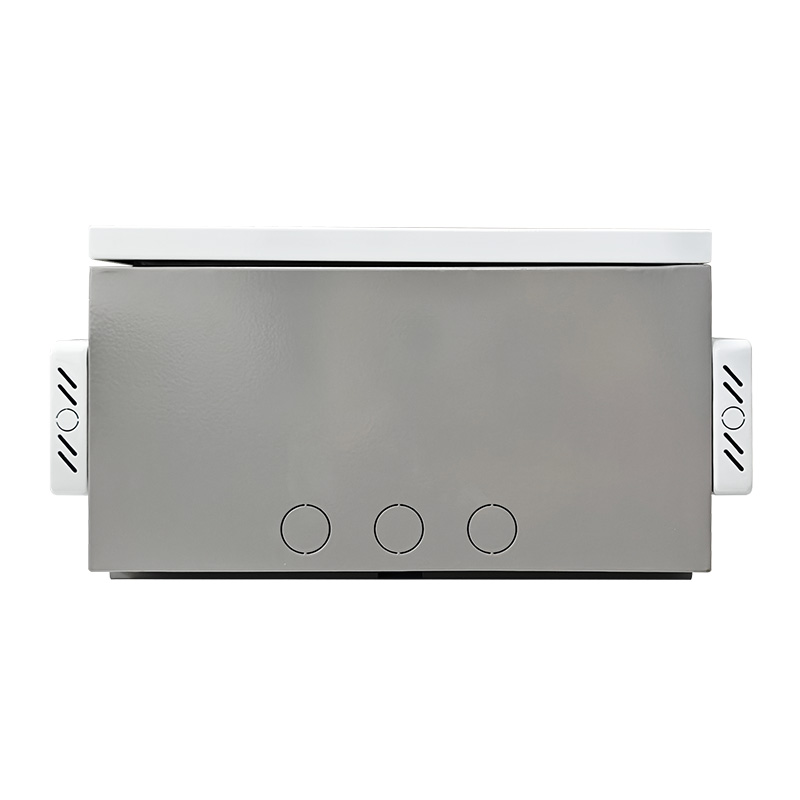

Cabinet Description

Product size: 450 × 500 × 284 mm
Cooling fan: 220V automatic cooling fan, 3000 RPM ±10%, 92 × 92 × 25 mm
Miniature circuit breaker: 230/400VAC, 6-63A, 50Hz, -35℃ to +75℃, IP40

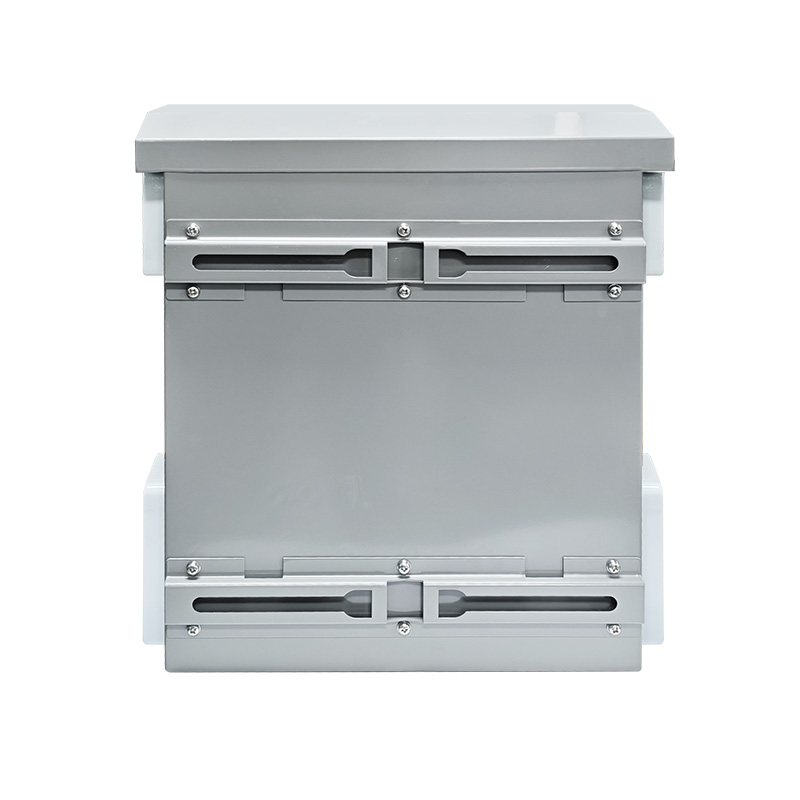

Installation Method: Wall Mounting/Pole Mounting

EMC & Ingress Protection

IP Level: IP65
Surge protection of Power: IEC 61000-4-5 Level X（8KV/6KV）
Surge protection of Ethernet port: IEC 61000-4-5 Level X（8KV/6KV）
RS: IEC 61000-4-3 Level 3（10V/m）
EFI: IEC 61000-4-4 Level 3（1V/2V）
CS: IEC 61000-4-6 Level 3（10V/m）
PFMF: IEC 61000-4-8 Level 4（30A/m）
DIP: IEC 61000-4-11 Level 3 （10V）
ESD: IEC 61000-4-2 Level 4（8K/15K）
