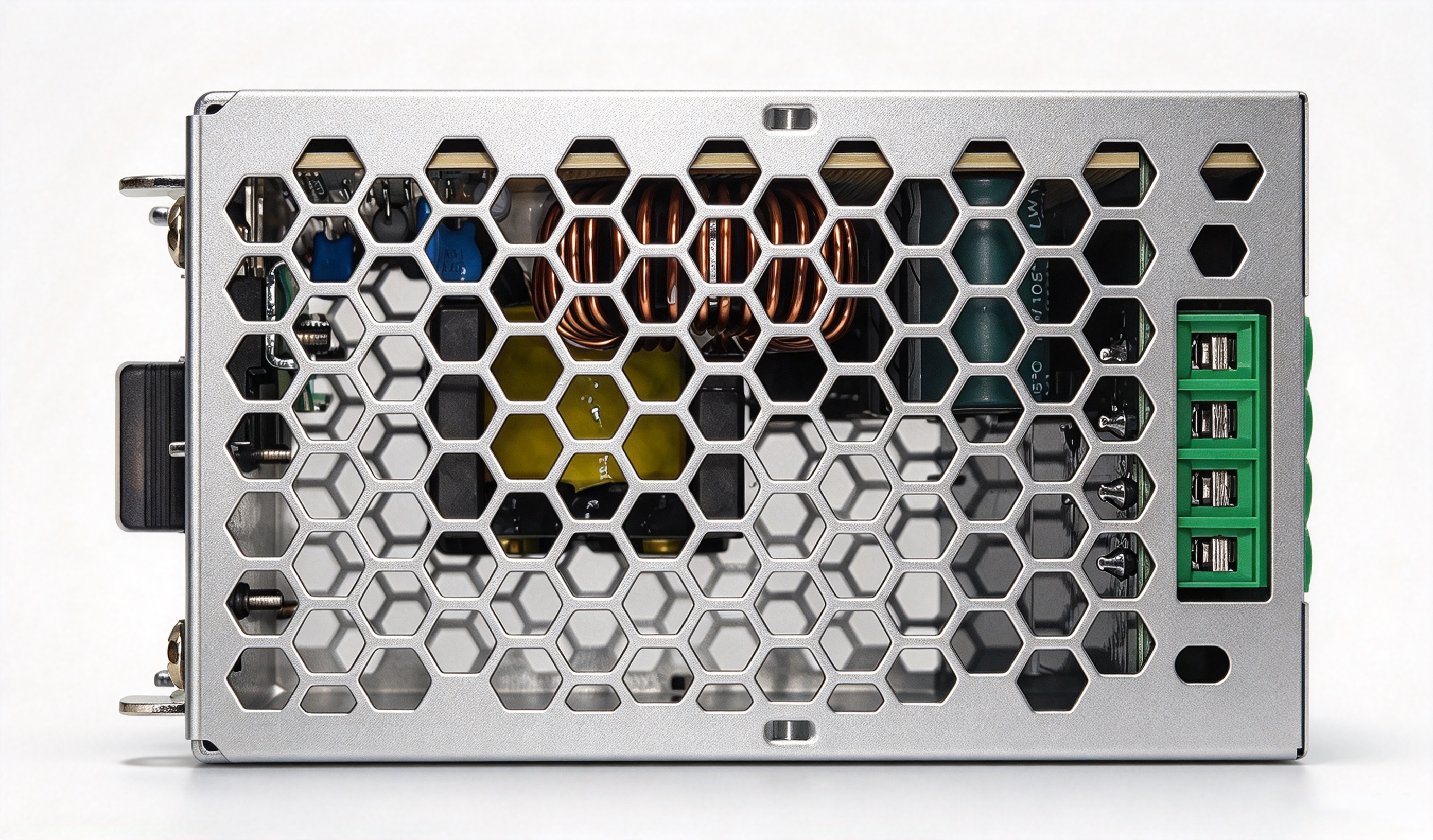

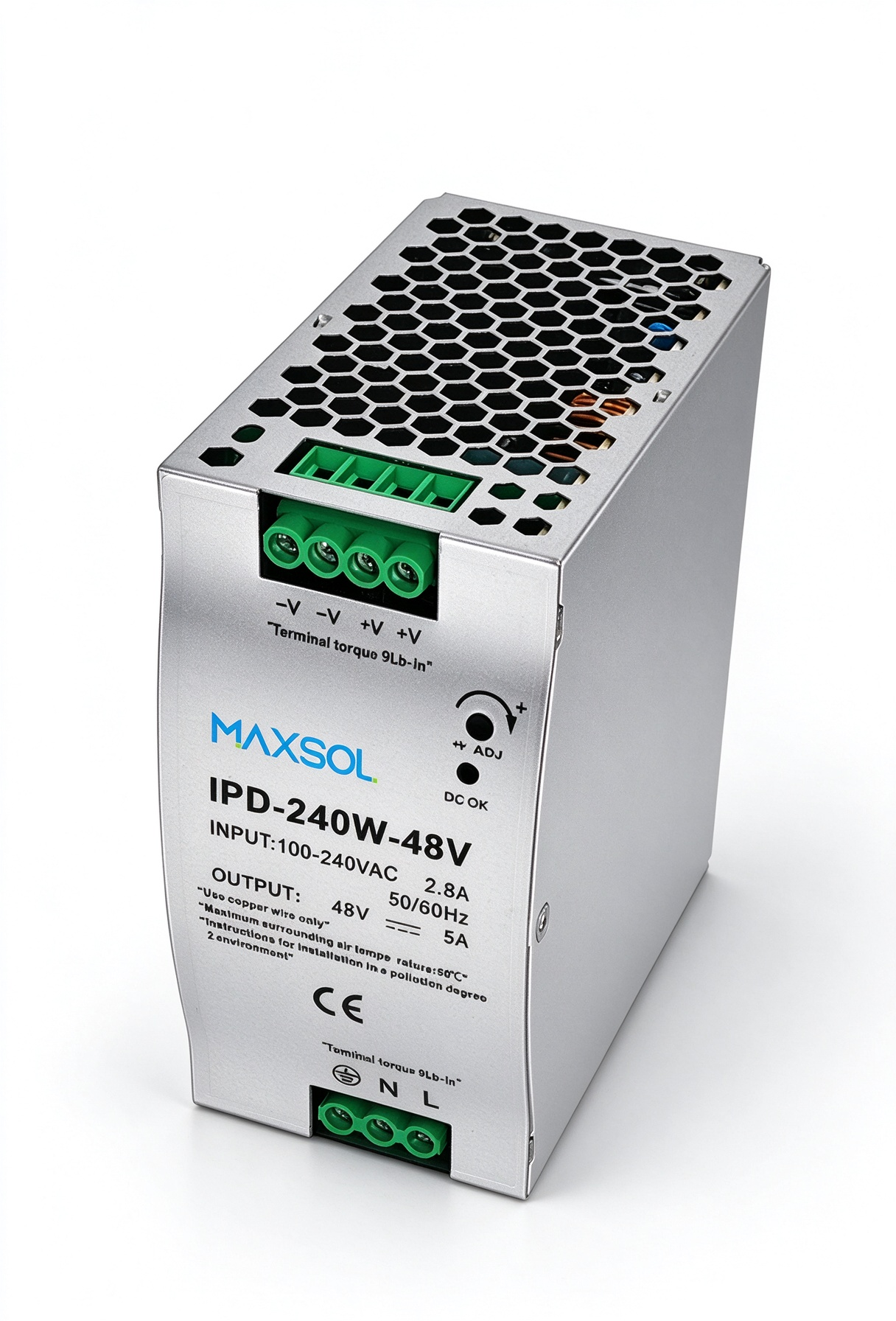

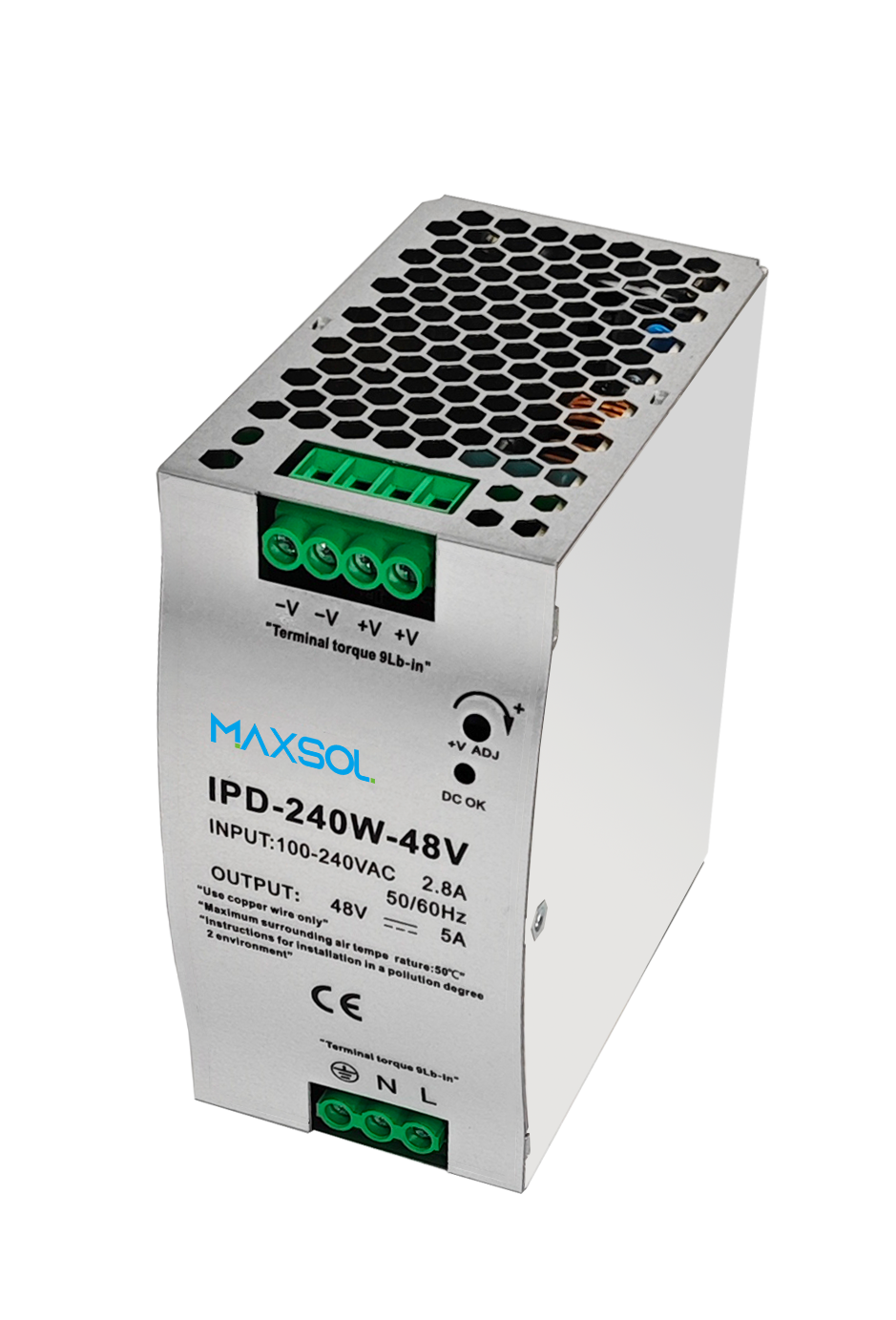

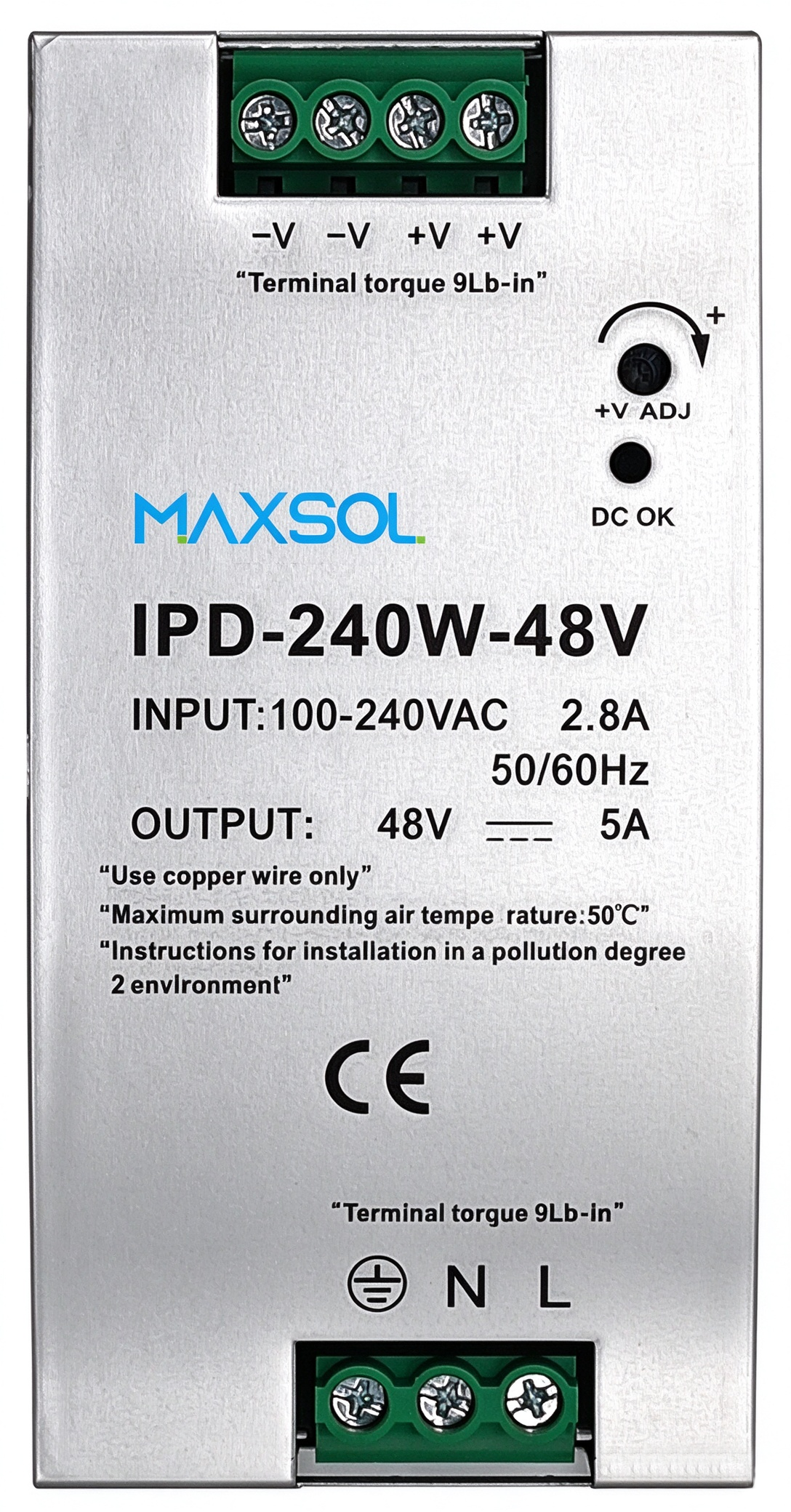

Industrial 48V 240W DIN-Rail Power Supply Unit
Reliable 48V 240W DIN-rail power supply for industrial automation. Features 5A output, high efficiency & overload protection. Ideal for systems integrators.
Key features
- DIN-Rail Industrial Power Supply (48V / 240W)
- Output: 48V DC, 5A (0–5A), 240W
- Ripple & Noise: 480mV
- Voltage Adj.: 47.2–48.8V, Accuracy ±1%
- Input: 100–240 VAC, 47–63 Hz
- Input Current: 4A @115V / 2A @230V
- Efficiency: 87%
- Protection: OLP / OVP / SCP
- Size: 63 × 125.2 × 113.5 mm

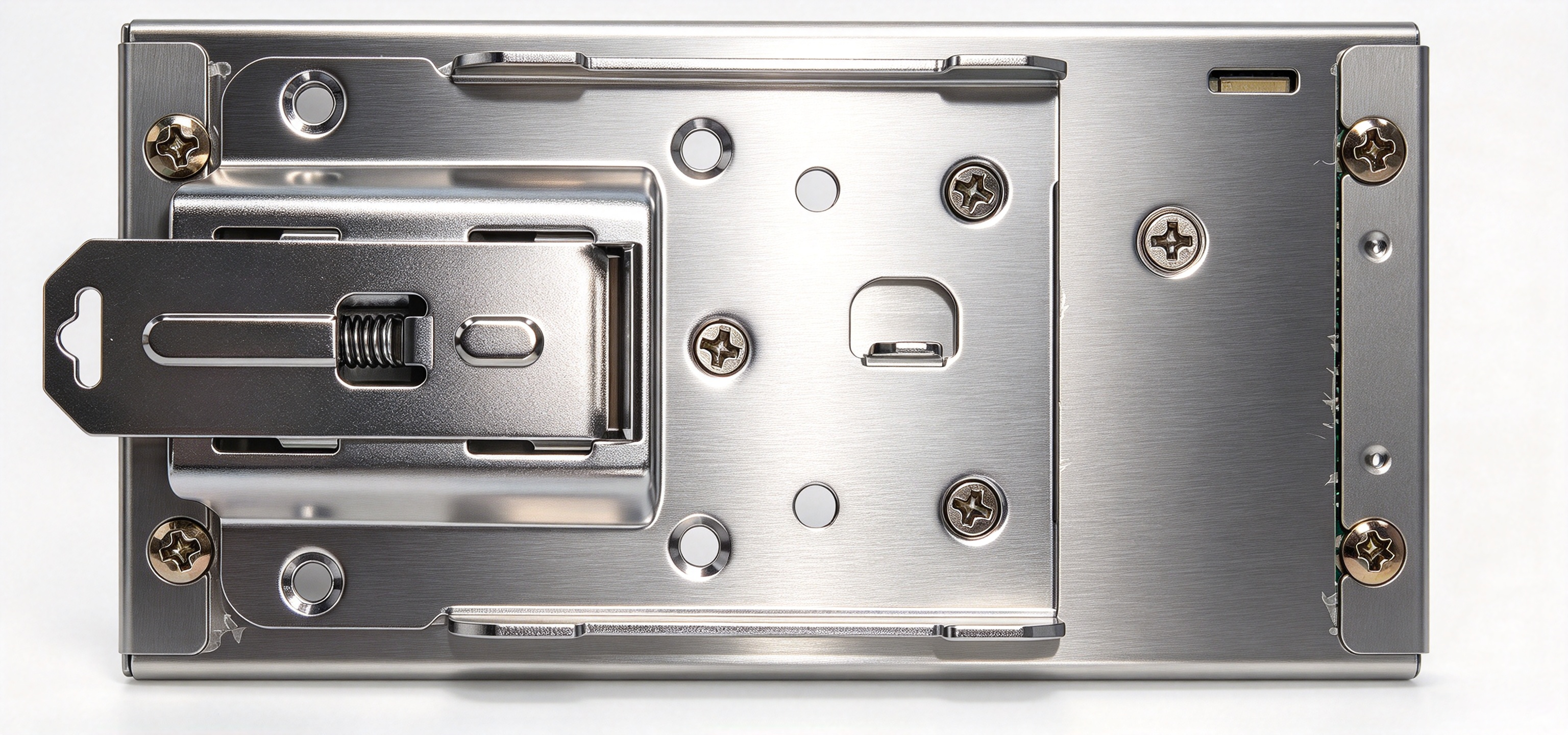

- Mounting: DIN Rail
Specification
Output
- Model
- IPD-240W-48V
- DC voltage
- 48V
- Rated current
- 5A
- Current range
- 0-5A
- Rated power
- 240W
- RIPPLE & NOISE
- 480mV
- Voltage adjustment range
- 47.2~48.8V
- VOLTAGE TOLERANCE Note.3
- ±2.0％
- Linear regulation
- ±0.5%
- Load regulation
- ±1%
- Start-up time
≤1000ms/230VAC (full load)
≤2000ms/115VAC (full load)
- Hold-up time (Typ.)
- 30ms/230VAC (full load)
Input
- Voltage range
- 175-264VAC
- Frequency Range (Hz)
- 47~63Hz
- Efficiency（Typ.）
- 86%
- AC current（Typ.）
- 1.8A Max 220VAC
- Inrush current(Typ.)
- Cold start: <50A/230VAC
- Leakage current
- ＜0.75mA/240VAC
Protection
- Short circuit protection
- Protection Method: Hiccup Mode, Automatic Recovery After Abnormal Removal
- Overload protection
110%~150% of Rated Output Power
Protection Method: Hiccup Mode, Automatic Recovery After Abnormal Removal
- Protection type
- Shut down O/P voltage,re-power on to recover
Condition
- Working temperature（℃）
- -25～+55℃，20～90%RH(non-condensing)
- Storage temperature、humidity
- -20～+85℃，10～95％RH
- Temperature coefficient
- ±0.3‰（ 0 – 50℃ ）
- Vibration resistance
- 10-500Hz, 2g, 10 minutes/cycle, 60 minutes each for X, Y, and Z axes
Safety standard
- Withstand voltage(VAC)
- I/P-O/P:1.5KVAC,I/P-FG:0.5KVAC,OP-FG:0.5KVAC 60S
- Safety standard Reference
- Designed to EN/UL60950-1 and GB4943 standards
- Insulation resistance
- I/P-O/P,I/P-FG,O/P-FG: 100M Ohm/500VDC/25℃
Package
- product size
- 63*125.2 *113.5(mm)(W*H*D)
- Weight
- 0.54kg
