Managed Solar IoT PoE Switch with 8 Gigabit Ports
Model: IOTM2802SFG-S
Managed Solar PoE Switch with 8 Gigabit Ports
Industrial 8GE+2GF Managed Solar PoE Switch featuring 90W BT and PV monitoring. Robust design for remote IoT and surveillance. Ideal for network integrators.
Key features
- 8GE + 2GF Managed Solar Industrial PoE Switch | BT 90W | 120W Budget | PV & Battery Monitoring
- PoE Management: Displays PoE supply voltage/current/power in real-time. Ports 1-2 support 90W BT standard. Ports 3-4 configurable for 24V/48V PoE (remote setting)，Ports 5-8 deliver up to 30W output. Configurable PoE priority & 120W max power budget
- Power In: Support PV panel & battery input: DC22~29.2V, AC Adapter 24V input
- Support LED and FAN DIDO
- PV Panel Monitoring: Real-time voltage/current/power readings
- Battery Status Tracking: Daily min/max voltage. Charge/discharge peak current & power. Amp-hour (Ah) charge/discharge totals. Daily energy generation/consumption
- Operating Temperature: -30℃-70℃
Specification
Core Advantages & Functional Features
- Model
- IOT2802SFG-S
- Highly Integrated Design
- Combines solar power, IoT, communication, PoE, and intelligent O&M technologies into one system for simplified installation.
- Eco-Friendly & Energy-Efficient
- Zero environmental pollution with reduced reliance on traditional energy sources.
- Remote Intelligent O&M
Proactive Fault Prediction (sets thresholds and preemptively identifies potential failures before reaching critical values)
Real-Time Incident Handling
Post-Event Analysis to improve equipment availability and reduce long-term operational costs
- Smart Enclosure Management
Intelligent Temperature Control: Auto-activates cooling fans based on preset parameters
Real-Time Monitoring: Displays temperature, humidity, and door status for enhanced security
- Battery Management System
Supports intelligent charging control
Supports intelligent Discharging control
Supports Reverse Polarity Protection
Overcharge Protection: Prevents battery damage from excessive charging
Over-discharge Protection: Avoids deep discharge battery failure
Low-Temp Charging Protection: Suspends charging when battery temperature < 0°C
Low-Temp Discharging Protection: Halts discharge when battery temperature < -20°C
High-Temp Charging Protection: Interrupts charging when battery temperature > 70°C
High-Temp Discharging Protection: Stops discharge when battery temperature > 70°C
- Ethernet Port Management
Jumbo Frame Support: Ensures stable transmission of large data frames
Flow Control: Auto-adjusts transmission rate for optimal performance
VLAN Support: Isolates different services without interference
MAC Whitelist: Enables secure access authentication
Port Traffic Statistics: Provides detailed data usage monitoring
- PoE Management
Displays PoE supply voltage/current/power in real-time
Ports 1-2 support 90W BT standard
Ports 3-4 configurable for 24V/48V PoE (remote setting)
Ports 5-8 deliver up to 30W output
Configurable PoE priority & 120W max power budget
- Solar Control Management
PV Panel Monitoring: Real-time voltage/current/power readings
Battery Status Tracking: Daily min/max voltage. Charge/discharge peak current & power. Amp-hour (Ah) charge/discharge totals. Daily energy generation/consumption
System Diagnostics: Operating days count and Over-discharge/Full-charge cycle records
- System Administration
User Authentication: Password-protected access
Version Control: Displays software/hardware versions
Firmware/configuration remote updates
System reboot capability
Factory reset option
NTP clock support
Application Scenarios
- Application Scenarios
Security surveillance
Forest fire prevention
Smart agriculture
Environmental monitoring
Oil/Gas operations
Power/Water utilities
Geological disaster prevention
Scenic areas
Unattended remote installations
Communication Interfaces
- Communication Interfaces
- 2×1000M SFP ports
- Ethernet ports
- 8×10/100/1000M Ethernet ports (with PoE support)
- Management Ports
1×RJ45 out-of-band management port
1×RJ45 console port
- Communication Protocols
- Serial transparent transmission, MQTT, TCP/IP, UDP, HTTP, etc
Power & PoE

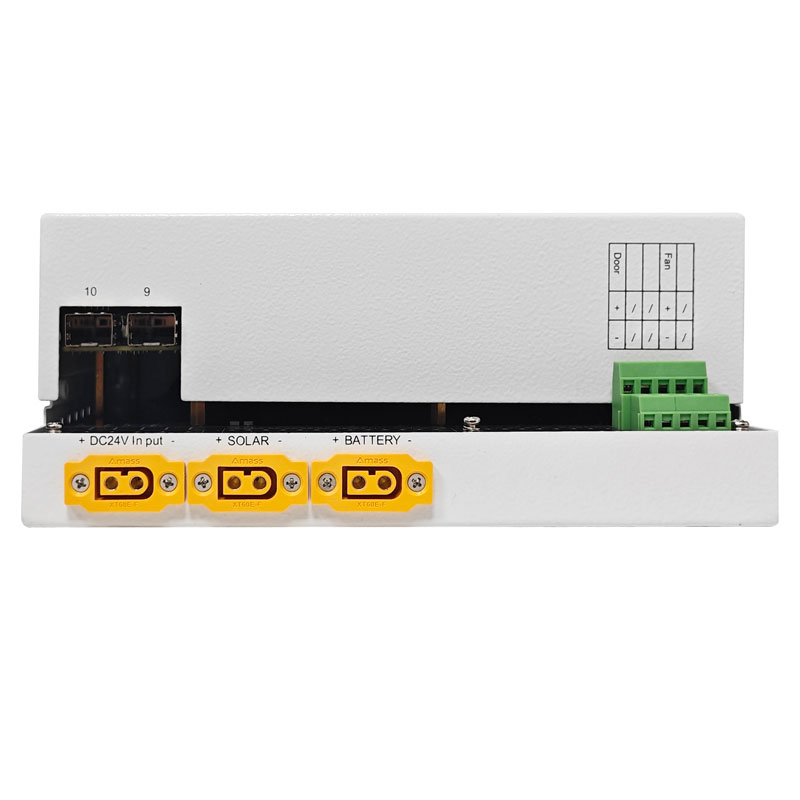

- Power Input
- DC24V input
- PV panel & battery input
- DC22~29.2V
- PoE Standards
- IEEE 802.3af/at/bt

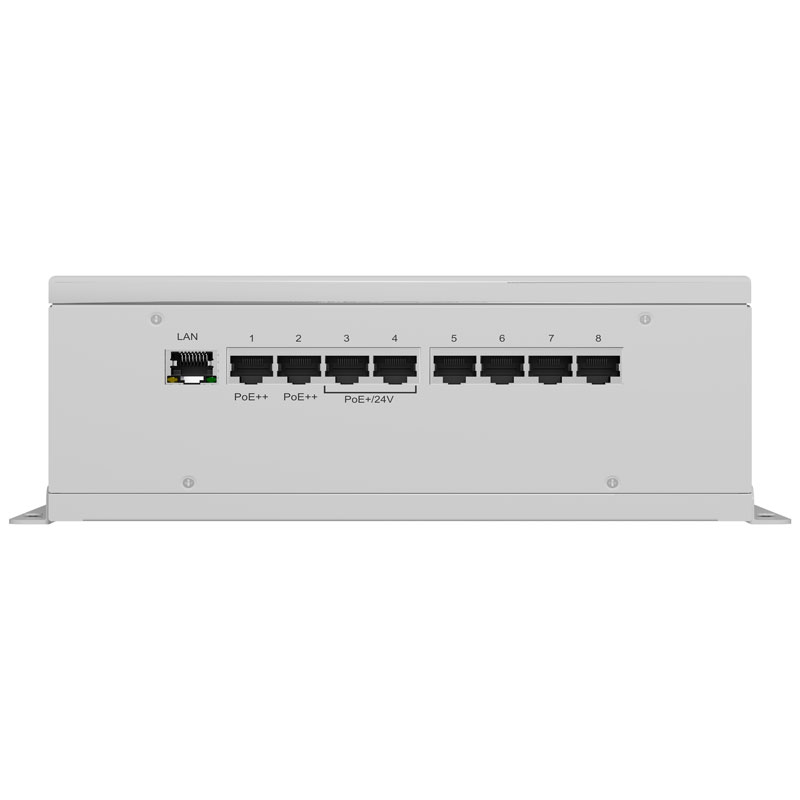

- PoE ports
- Ports 1-8 (Ports 1-2 support BT, Ports 3-4 support 24V PoE)
- Power Consumption
Smart terminal: 13W
Full load: 140W
System Specifications
- Processor
- A40i, 1.2GHz clock speed, 1GB total memory

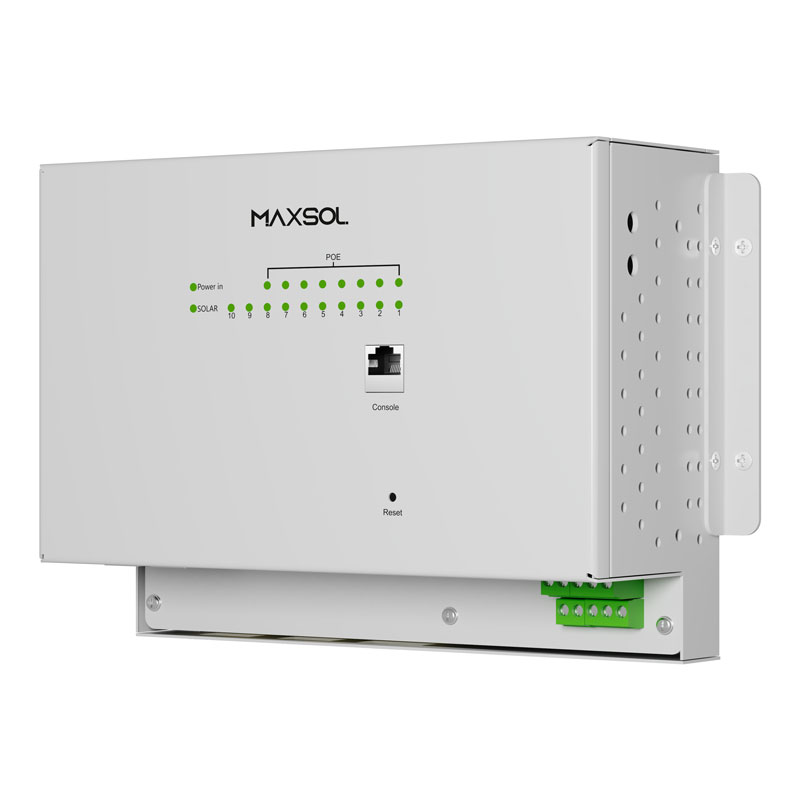

- Reset Button
- Press and hold for 10s to reboot and restore factory settings
Physical & Environmental
- Dimensions
- 163.5mm × 216mm × 88.7mm
- Weight
- 1.5kg

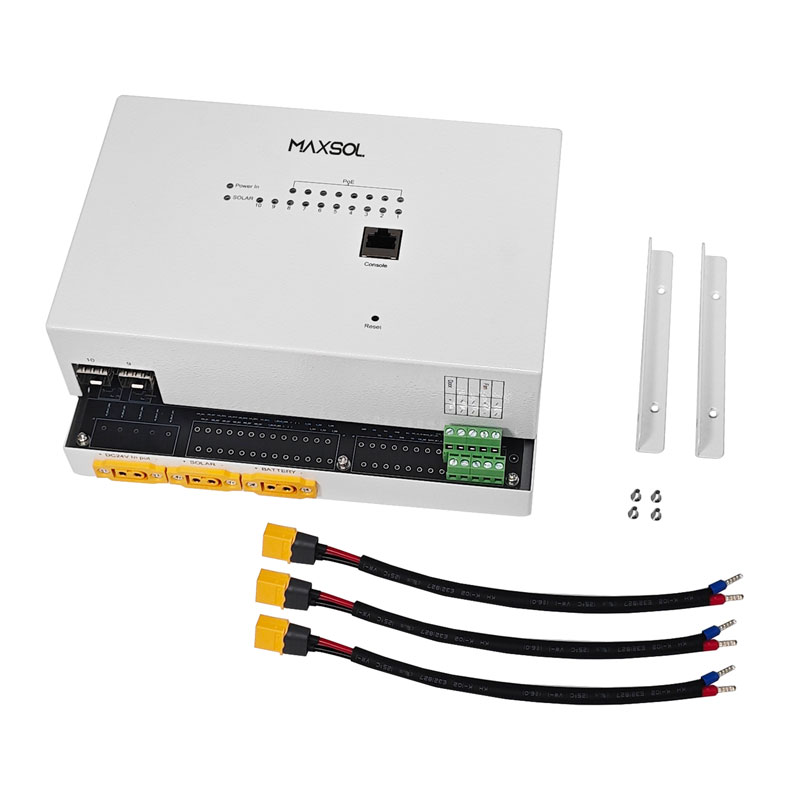

- Installation Methods
- Desktop, wall-mounted, or built-in enclosure
- Protection Rating
- IP20
- Operating Temperature
Low: -30°C
High: 70°C
