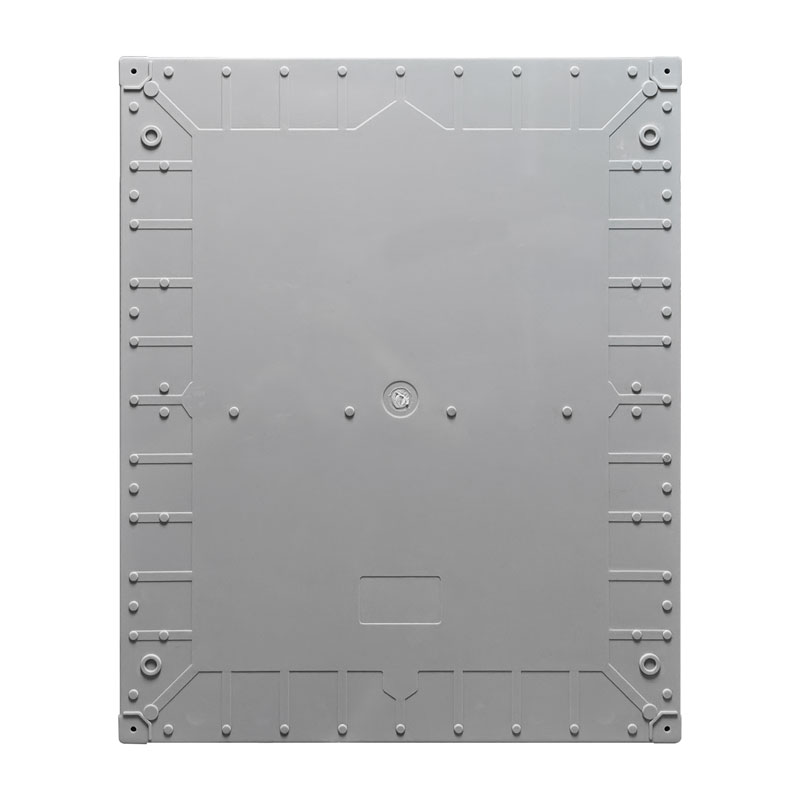

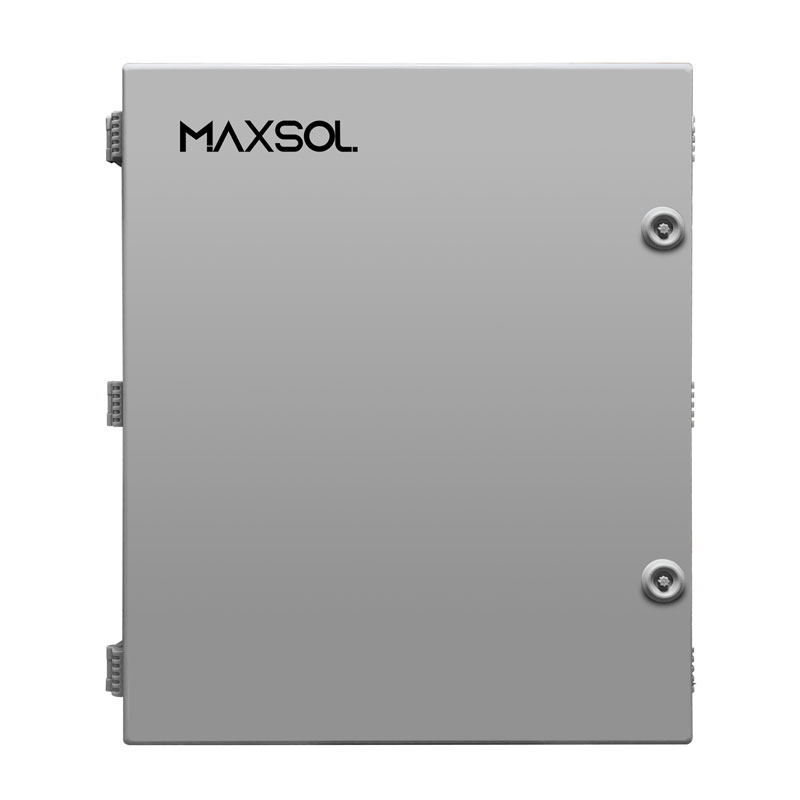

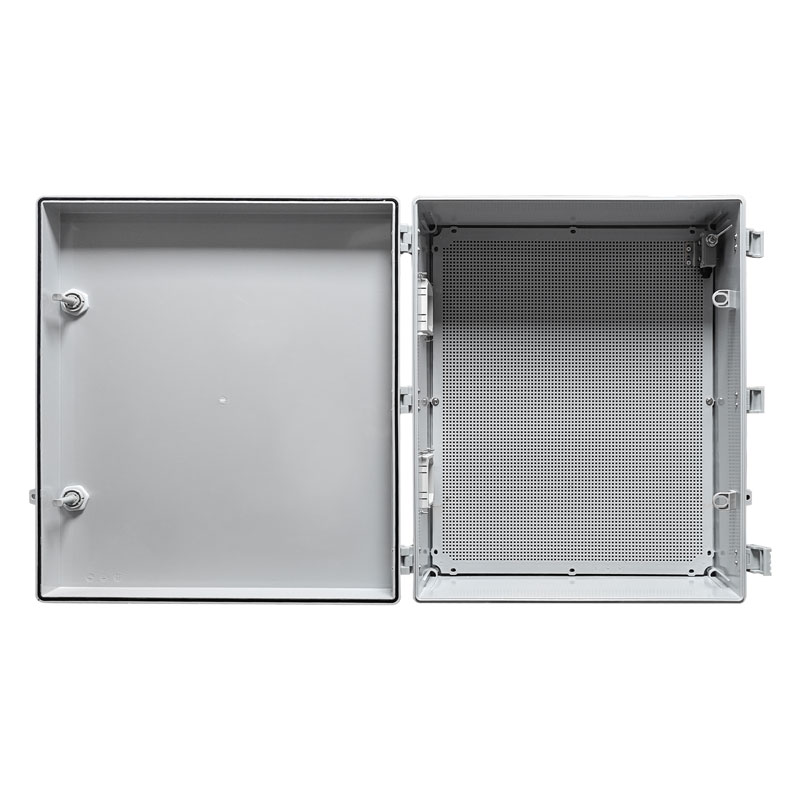

IP65 IK10 Industrial Outdoor Smart Box Enclosure
Model: IB542
Industrial IP65 ABS Outdoor Distribution Box
Rugged IP65 ABS enclosure for outdoor industrial control. Features IK09 impact resistance, 600x500mm size, and pole mounting. Ideal for system integrators.
Key features
- Outdoor Waterproof Enclosure Box (IP65 / IK09)
- Size: 600 × 500 × 220 mm | Weight: 4.45 kg
- Durable ABS housing, 4 mm thickness, gray color, built for outdoor use
- IP65 waterproof & dustproof, IK09 impact resistance for harsh environments
- Suitable for junction, distribution, battery, control & monitoring applications
- Built-in IPC / Wireless AP mounting holes, supports pole or wall mounting
Specification
Basic Information
- Model
- IP652
- Dimensions (length x width x height)
- 600*500*220mm
- Weight（kg）
- 4.45kg
- Material
- ABS
- Thickness
- 4mm
- IP Level
- IP65
- Color
- Gray
- Door
- 1
- Installation
- Pole/Wall Mounting
Function
- Function
Junction, Distribution, Electrical, Battery, Control, Monitoring etc.
Outdoor waterproof Enclosure Box，IPC/Wireless AP mounting hole
Installation Accessories
- Pole Mount Kit
- 1 set

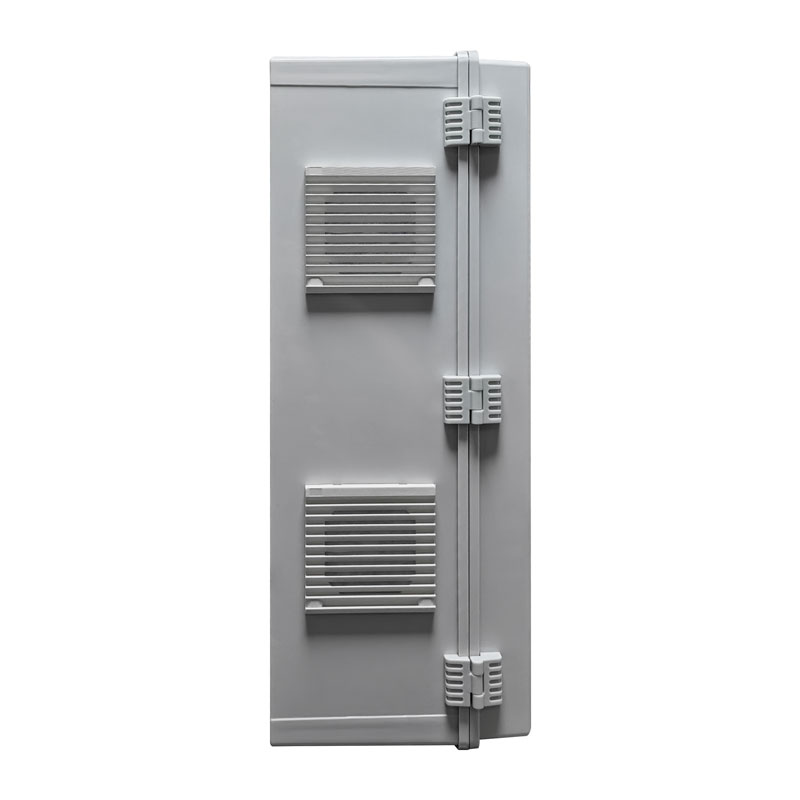

- Filter for incoming airflow and for ejecting fan
- 2PCS
- Door lock
- 2PCS
- Ground wire terminal
- 1PCS
- Exhaust filter + Exhaust integrated fan
- 1PCS
- Door opening stopper
- 1PCS
- C45 rail strip
- 2PCS
- M20 waterproof fitting
- 10PCS
- Mounting accessories
- Included
Basic Information
- Model
- IP652
- Dimensions (length x width x height)
- 600*500*220mm
- Weight（kg）
- 4.45kg
- Material
- ABS
- Thickness
- 4mm
- IP Level
- IP65
- Color
- Gray
- Door
- 1
- Installation
- Pole/Wall Mounting
Function
- Function
Junction, Distribution, Electrical, Battery, Control, Monitoring etc.
Outdoor waterproof Enclosure Box，IPC/Wireless AP mounting hole
Installation Accessories
- Pole Mount Kit
- 1 set
- Filter for incoming airflow and for ejecting fan
- 2PCS
- Door lock
- 2PCS
- Ground wire terminal
- 1PCS
- Exhaust filter + Exhaust integrated fan
- 1PCS
- Door opening stopper
- 1PCS
- C45 rail strip
- 2PCS
- M20 waterproof fitting
- 10PCS
- Mounting accessories
- Included
Recommended Products
More from Outdoor Industrial Cabinet
Compare related Maxsol products for your next outdoor power or networking project.
IB552 IP65 IK10 Outdoor Steel Enclosure
Model: IB552

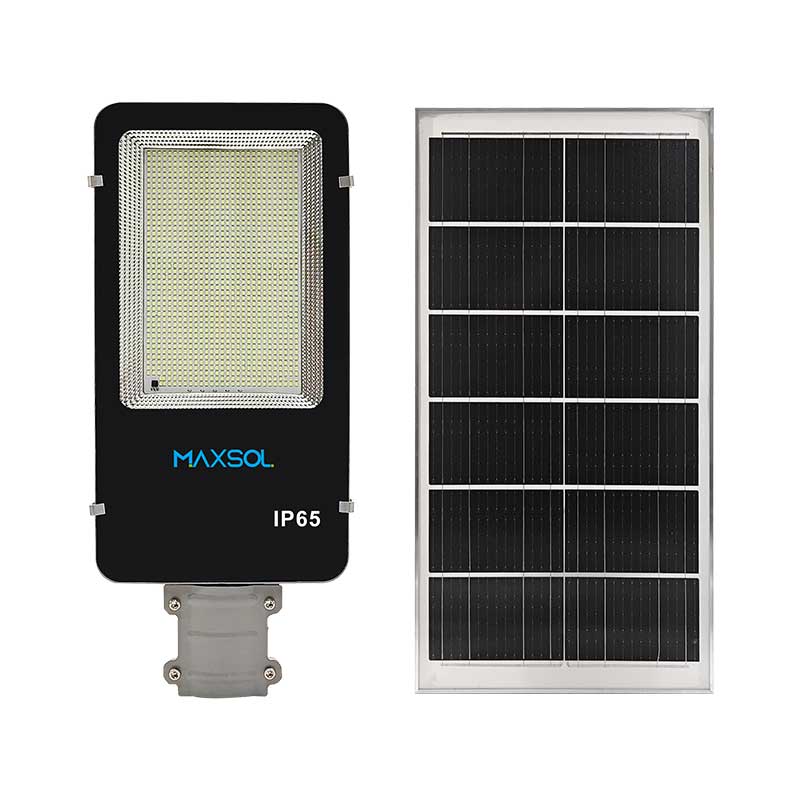

SR600W 30W Solar Street Light with 30Ah Battery
