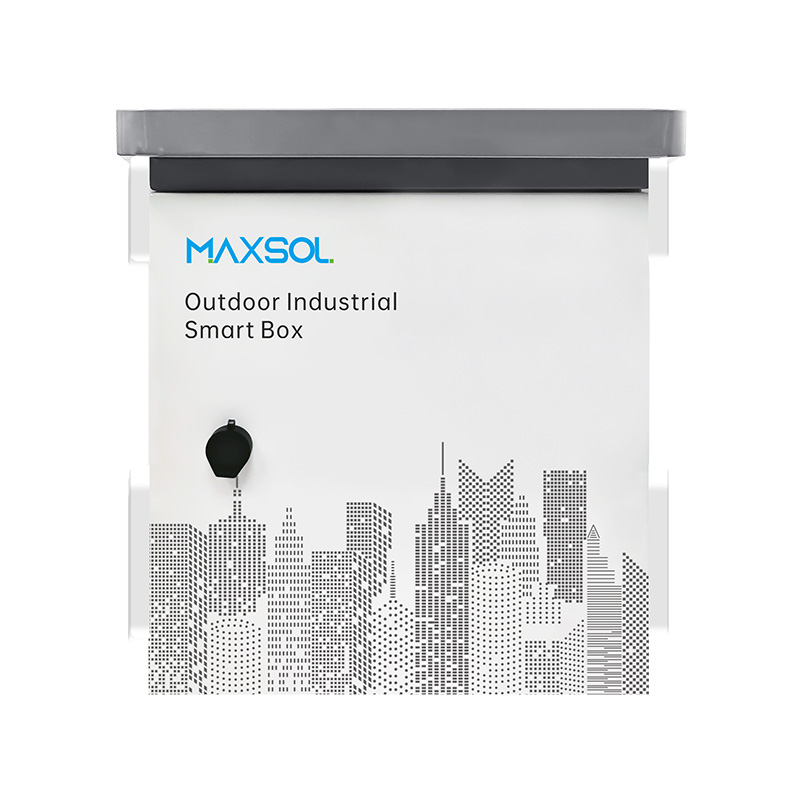

8GE+2GF Unmanaged Outdoor Industrial PoE Switch Box
Model: SBOX1802SFG-I
8GE+2GF Managed Outdoor Industrial PoE Switch Box with 288Wh Battery
IP65 managed outdoor industrial PoE switch box with 8 Gigabit PoE ports, 2 Gigabit SFP slots, a 240W UPS power module, and a built-in 48V 6Ah 288Wh LiFePO4 battery.
Key features
- 8GE+2GF Managed Outdoor Industrial PoE Switch Box
- Built-in 48V 6Ah 288Wh LiFePO4 battery
- Layer 2 management with VLAN, QoS, multicast, LLDP, STP, ERPS, PoE management, and SNMP
- Input voltage: AC100-240V, 50/60Hz
- Surge Proof:（8KV/6KV)；ESD:(8K/15K)
- IP65 ingress protection
- -40℃～75℃ working temperature
- Include 240W power supply
Specification
Interfaces
- Model
- SBOX2802SFG-I-288WH
- Interface
8*10/100/1000Base-T PoE ports (Data/Power)
2*100/1000Base-X uplink SFP fiber slot port (Data)
- Ethernet Port
Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex
MDI/MDI-X self-adaption
- UPS Battery
- Built-in 48V 6Ah 288Wh LiFePO4 battery with 240W UPS power module
PoE
- PoE Standard
- IEEE802.3af/at/bt (Port1-Port2 Support BT90W Output)
- SFP Port
Gigabit SFP optical fiber port, default matching optical modules
(optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
- Power Adaptor
- 240 W
- LED Indicators
- PWR，OPT, NMC，ALM
- Power Interface
- AC Input
- Optical Cable
Multimode: 850nm 0 ~ 550M,
single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
- Network Topology
- Support Star topology, Bus topology, Tree Topology, Hybrid topology
- Input voltage
AC100-240V, 50/60Hz
240W DC55V UPS power module built-in
- Total Power consumption
≤10W without PoE (full load)
≤250W with PoE (full load)
- Battery backup
- Built-in 48V 6Ah 288Wh LiFePO4 battery
- Voltage Alarm
- Support
Switch Property
- Switching capacity
- 20 G
- Packet forwarding rate
- 14.88 Mpps
- MAC address table
- 8 K
- Buffer
- 4.1 M
- Forwarding delay
- <10 us
- MDX/MIDX
- Support
- Jumbo Frame
- Support 10K Bytes
- Network Topology
Ring topology
Star topology
Bus topology
Tree Topology
Hybrid topology
Layer 2/3 Switching
- User Management
- Support
- System Log
- Support
- Upgrade Firmware
- Support
- Configuration File Download/Upload
- Support
- SNMP
- Support
- WEB Managed
- Support
- CLI
- Support
- Telnet/SSH
- Support
- RMON
- Support
- Surveillance VLAN
- Support
- MAC VLAN
- Support
- Etherchannle/ 802 .3ad
- Support
- LACP
- Support
- Interface Speed
- Support
- Duplex Mode
- Support
- Flow Control
- Support
- Jumbo frame
- Support
- DHCP Client
- Support
- SNTP Client
- Support
- Port Statistics
- Support
- Protected Ports
- Support
- Ethernet Ring Protection Switching
- Support
- LLDP
- Support
- LLDP 802.1 TLV
- Support
- MSTP / RSTP / STP
- Support
- STP BPDU Filter
- Support
- STP BPDU guard
- Support
- STP Port Fast
- Support
- IGMP Snooping
- Support
- MLD Snooping
- Support
- MVR
- Support
- IPV4
- Support
- IPV6
- Support
- ARP
- Support
- Loop back Interface
- Support
- DHCP Server
- Support
- DNS Server
- Support
Environment
- Operating temperature
-40℃~+75℃
The device is tested for 4 hours at temperatures in 85℃
- Storage temperature
- -40℃~+85℃
- Relative humidity
- 5%~95% non-condensing
- Thermal methods
- Auto Fans Cooling
- MTBF
- 100,000 hours

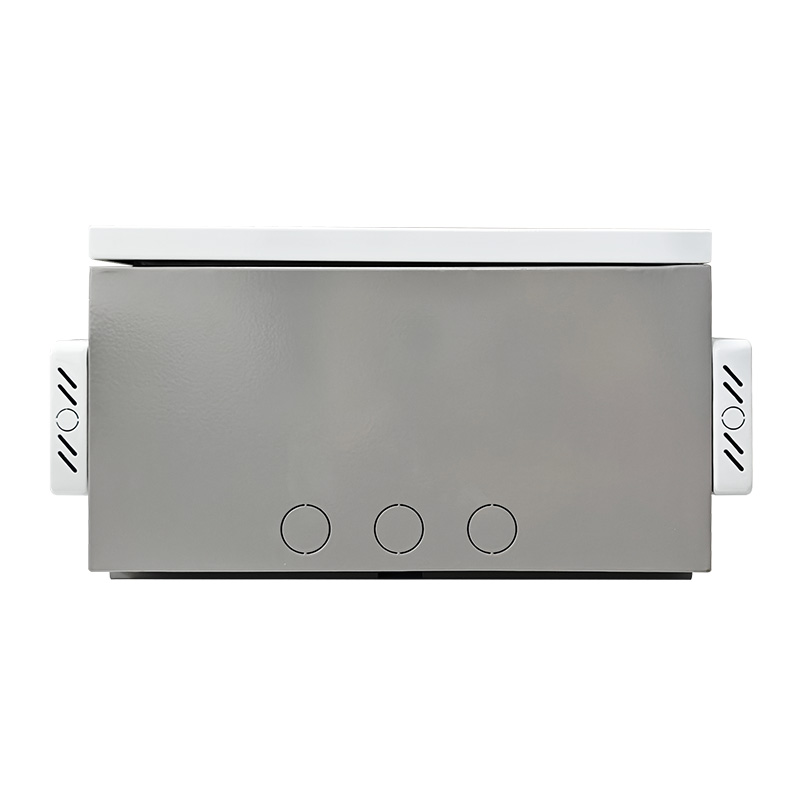

Cabinet Description
- Product size
- 450 × 500 × 284 mm
- Cooling fan
- 220V automatic cooling fan, 3000 RPM ±10%, 92 × 92 × 25 mm
- Miniature circuit breaker
- 230/400VAC, 6-63A, 50Hz, -35℃ to +75℃, IP40

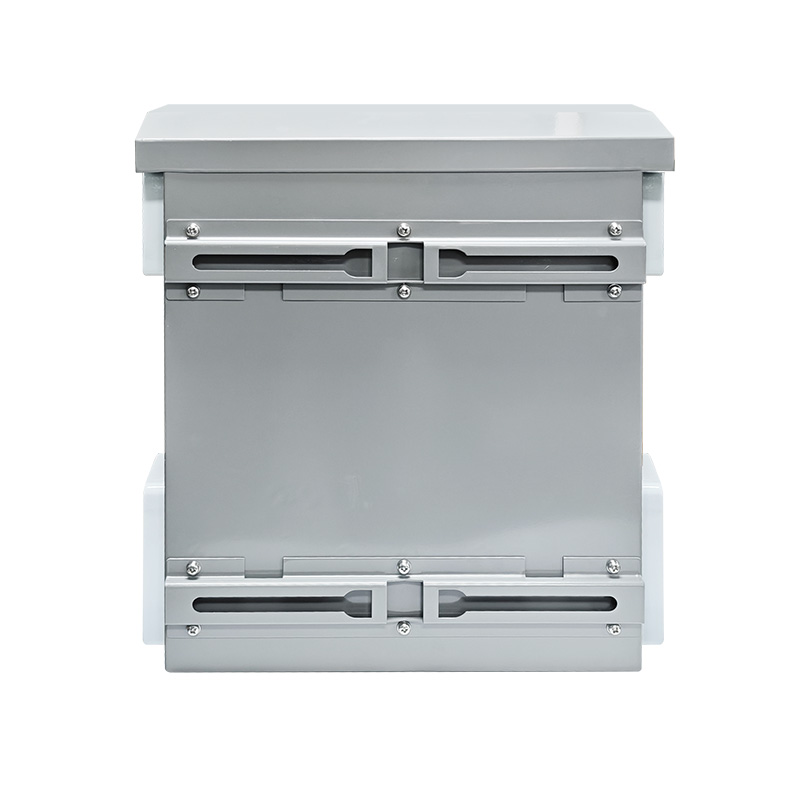

- Installation Method
- Wall Mounting/Pole Mounting
EMC & Ingress Protection
- IP Level
- IP65
- Surge protection of Power
- IEC 61000-4-5, 8kV/6kV
- Surge protection of Ethernet port
- IEC 61000-4-5, 8kV/6kV
- ESD
- IEC 61000-4-2 Level 4, 8kV/15kV
Interfaces
- Model
- SBOX2802SFG-I-288WH
- Interface
8*10/100/1000Base-T PoE ports (Data/Power)
2*100/1000Base-X uplink SFP fiber slot port (Data)
- Ethernet Port
Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex
MDI/MDI-X self-adaption
- UPS Battery
- Built-in 48V 6Ah 288Wh LiFePO4 battery with 240W UPS power module
PoE
- PoE Standard
- IEEE802.3af/at/bt (Port1-Port2 Support BT90W Output)
- SFP Port
Gigabit SFP optical fiber port, default matching optical modules
(optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
- Power Adaptor
- 240 W
- LED Indicators
- PWR，OPT, NMC，ALM
- Power Interface
- AC Input
- Optical Cable
Multimode: 850nm 0 ~ 550M,
single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
- Network Topology
- Support Star topology, Bus topology, Tree Topology, Hybrid topology
- Input voltage
AC100-240V, 50/60Hz
240W DC55V UPS power module built-in
- Total Power consumption
≤10W without PoE (full load)
≤250W with PoE (full load)
- Battery backup
- Built-in 48V 6Ah 288Wh LiFePO4 battery
- Voltage Alarm
- Support
Switch Property
- Switching capacity
- 20 G
- Packet forwarding rate
- 14.88 Mpps
- MAC address table
- 8 K
- Buffer
- 4.1 M
- Forwarding delay
- <10 us
- MDX/MIDX
- Support
- Jumbo Frame
- Support 10K Bytes
- Network Topology
Ring topology
Star topology
Bus topology
Tree Topology
Hybrid topology
Layer 2/3 Switching
- User Management
- Support
- System Log
- Support
- Upgrade Firmware
- Support
- Configuration File Download/Upload
- Support
- SNMP
- Support
- WEB Managed
- Support
- CLI
- Support
- Telnet/SSH
- Support
- RMON
- Support
- Surveillance VLAN
- Support
- MAC VLAN
- Support
- Etherchannle/ 802 .3ad
- Support
- LACP
- Support
- Interface Speed
- Support
- Duplex Mode
- Support
- Flow Control
- Support
- Jumbo frame
- Support
- DHCP Client
- Support
- SNTP Client
- Support
- Port Statistics
- Support
- Protected Ports
- Support
- Ethernet Ring Protection Switching
- Support
- LLDP
- Support
- LLDP 802.1 TLV
- Support
- MSTP / RSTP / STP
- Support
- STP BPDU Filter
- Support
- STP BPDU guard
- Support
- STP Port Fast
- Support
- IGMP Snooping
- Support
- MLD Snooping
- Support
- MVR
- Support
- IPV4
- Support
- IPV6
- Support
- ARP
- Support
- Loop back Interface
- Support
- DHCP Server
- Support
- DNS Server
- Support
Environment
- Operating temperature
-40℃~+75℃
The device is tested for 4 hours at temperatures in 85℃
- Storage temperature
- -40℃~+85℃
- Relative humidity
- 5%~95% non-condensing
- Thermal methods
- Auto Fans Cooling
- MTBF
- 100,000 hours
Cabinet Description
- Product size
- 450 × 500 × 284 mm
- Cooling fan
- 220V automatic cooling fan, 3000 RPM ±10%, 92 × 92 × 25 mm
- Miniature circuit breaker
- 230/400VAC, 6-63A, 50Hz, -35℃ to +75℃, IP40
- Installation Method
- Wall Mounting/Pole Mounting
EMC & Ingress Protection
- IP Level
- IP65
- Surge protection of Power
- IEC 61000-4-5, 8kV/6kV
- Surge protection of Ethernet port
- IEC 61000-4-5, 8kV/6kV
- ESD
- IEC 61000-4-2 Level 4, 8kV/15kV
Recommended Products
More from Smart Ethernet Box
Compare related Maxsol products for your next outdoor power or networking project.
8GE+2GF Managed Outdoor Industrial PoE Switch Box
Model: SBOX2802SFG-I

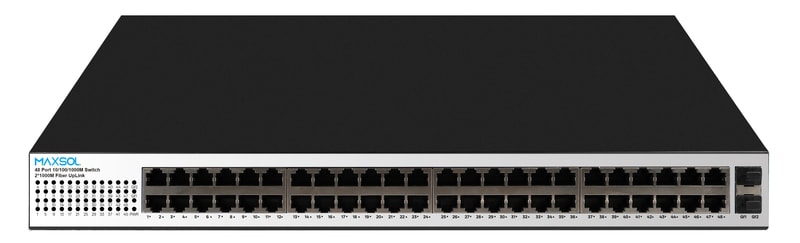

48-Port Long-Range Gigabit Unmanaged PoE Switch, 400W
