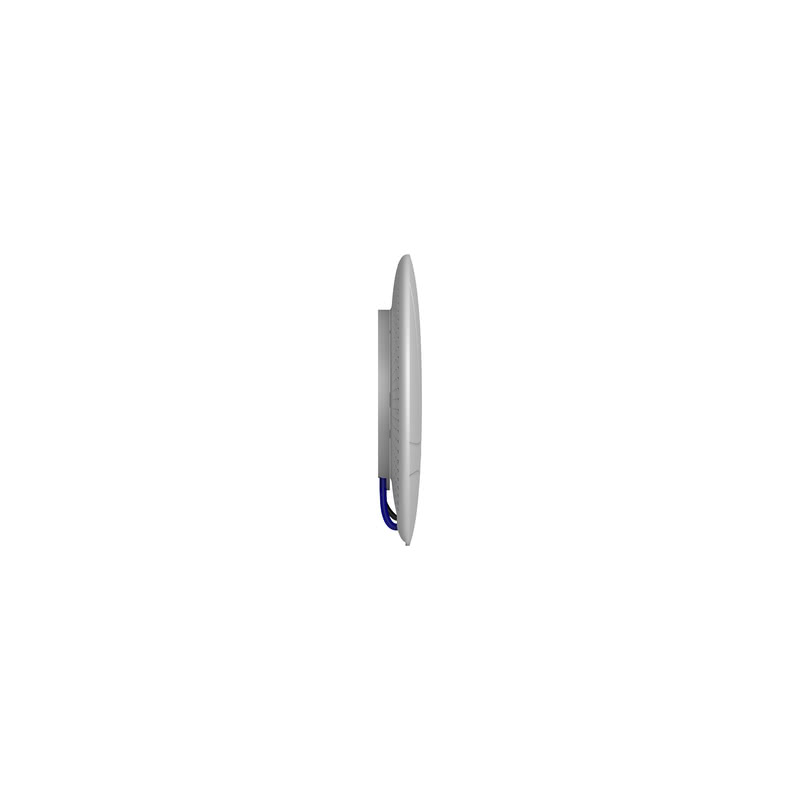

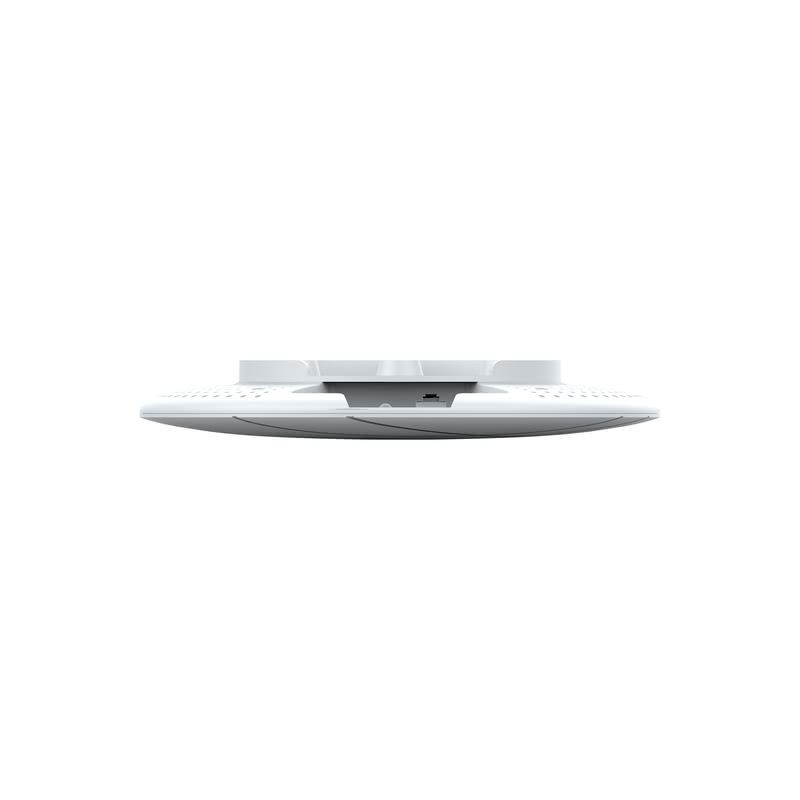

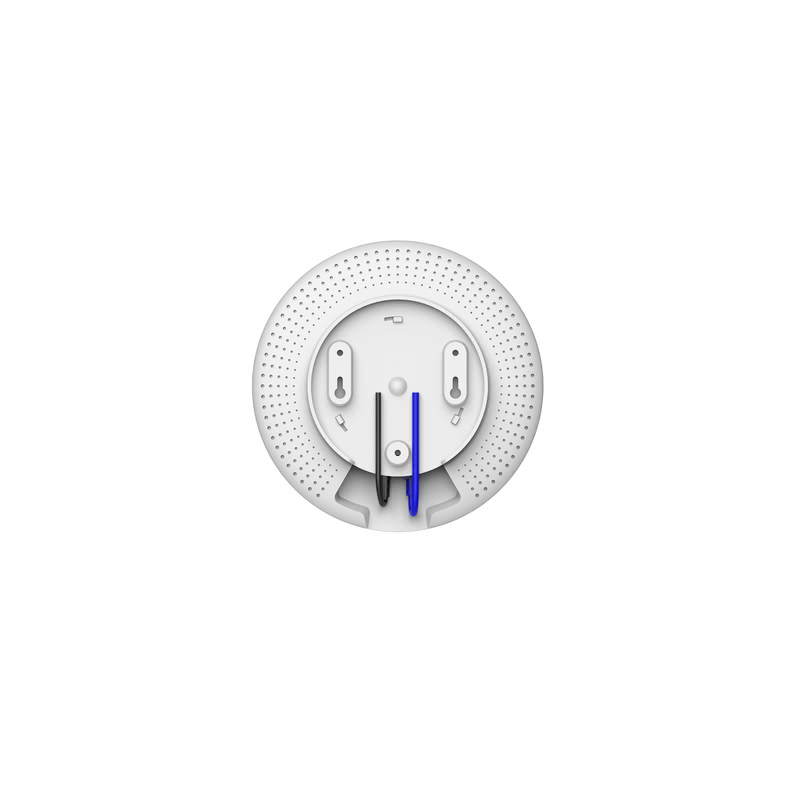

AP306X AX3000 Wi-Fi 6 Ceiling Access Point
Model: AP306X
AP306 AX3000 Wi-Fi 6 Ceiling Access Point
AP306 dual-band AX3000 ceiling access point with a MediaTek MT7981B processor, Gigabit PoE, Mesh backhaul and support for up to 128 users.
Key features
- 802.11AX WIFI6 2.4G&5.8G 3000M Indoor Wireless Ceiling AP
- 11AX 2.4GHz 574Mbps+5.8Ghz 2400Mbps
- MTK chipset Dual core 1.3GHz,MT7981B, 2Gb DDR3, 128Gb norFlash ,access 128users
- 1× Gigabit Port/POE
- 2.4G internal 4.5 dBix2PCS, 5G internal 6dBi x3PCS，All-directional Omni
- Support 48V300mA /802.3af/at,12VDC
- Supports AP mode, DHCP routing, up to 128 users, Wi-Fi hotspot and MESH backhaul
- WEB management, local firmware upgrade or centralized online upgrade; WPA/WPA2/WPA3 with mixed-user access
Specification
Hardware Specifications
- Model
- AP306
- Wi-Fi standard
Wi-Fi 6
5.8 GHz IEEE 802.11ax/ac/n/a
2.4 GHz IEEE 802.11ax/n/b/gAt
- Wireless speed
AX3000
5 GHz: 2400 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
- Antenna
5GHz 6 dBi, Omni-directional
2.4 GHz 4.5 dBi, Omni-directional
- Max EIRP
5 GHz 32 dBm
2.4 GHz 30.5 dBm
EIRP may be limited by country regulations
- SOC
- Dual core 1.3GHz,MT7981B
- RAM
- 2Gb DDR3
- FLASH
- 128Gb norFlash
- Interface
- 1× Gigabit Port/POE,1 x DC
- LEDs
- SYS
- Overall dimensions
- 210 x 22.3 mm (with an installation bracket of 8 mm)
- Work environment
Operating temperature: -10℃ to 45℃ Storage temperature: -40℃ to 70℃
Operating humidity: 10% to 90%RH (no condensation)
Storage humidity: 5% to 90%RH (no condensation)
- Protection level
- 15KV ESD
- Power consumption
- ≤10W
- Power supply method
- 48V300mA /802.3af/at,12VDC
- Packaging accessories
1 AP
4. Install screws
1. User manual
1. Warranty card
Software Specifications
- Work mode
- AP access point
DHCP routing
- Total number of users connected to the entire system
- 128
- Networking method
- WiFi hotspot
MESH backhaul
- Management approach
- WEB management
- Wireless Security
- WPA,WPA2,WPA3,and Pre-RSNA users are mixedly accessing the network.
- System update
- WEB Local upgrade,centralized management of online upgrade
Hardware Specifications
- Model
- AP306
- Wi-Fi standard
Wi-Fi 6
5.8 GHz IEEE 802.11ax/ac/n/a
2.4 GHz IEEE 802.11ax/n/b/gAt
- Wireless speed
AX3000
5 GHz: 2400 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
- Antenna
5GHz 6 dBi, Omni-directional
2.4 GHz 4.5 dBi, Omni-directional
- Max EIRP
5 GHz 32 dBm
2.4 GHz 30.5 dBm
EIRP may be limited by country regulations
- SOC
- Dual core 1.3GHz,MT7981B
- RAM
- 2Gb DDR3
- FLASH
- 128Gb norFlash
- Interface
- 1× Gigabit Port/POE,1 x DC
- LEDs
- SYS
- Overall dimensions
- 210 x 22.3 mm (with an installation bracket of 8 mm)
- Work environment
Operating temperature: -10℃ to 45℃ Storage temperature: -40℃ to 70℃
Operating humidity: 10% to 90%RH (no condensation)
Storage humidity: 5% to 90%RH (no condensation)
- Protection level
- 15KV ESD
- Power consumption
- ≤10W
- Power supply method
- 48V300mA /802.3af/at,12VDC
- Packaging accessories
1 AP
4. Install screws
1. User manual
1. Warranty card
Software Specifications
- Work mode
- AP access point
DHCP routing
- Total number of users connected to the entire system
- 128
- Networking method
- WiFi hotspot
MESH backhaul
- Management approach
- WEB management
- Wireless Security
- WPA,WPA2,WPA3,and Pre-RSNA users are mixedly accessing the network.
- System update
- WEB Local upgrade,centralized management of online upgrade
