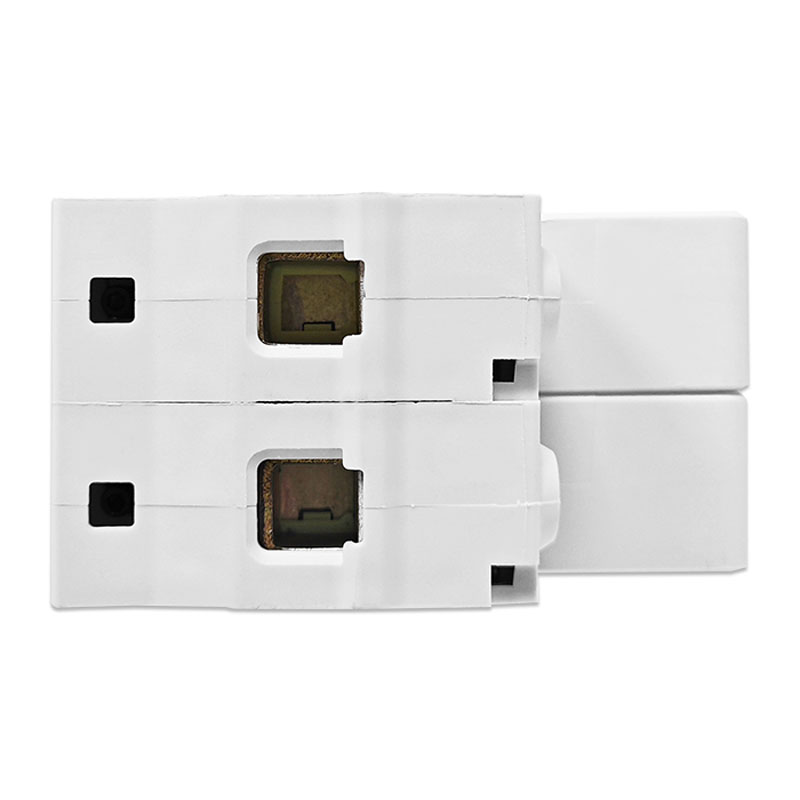

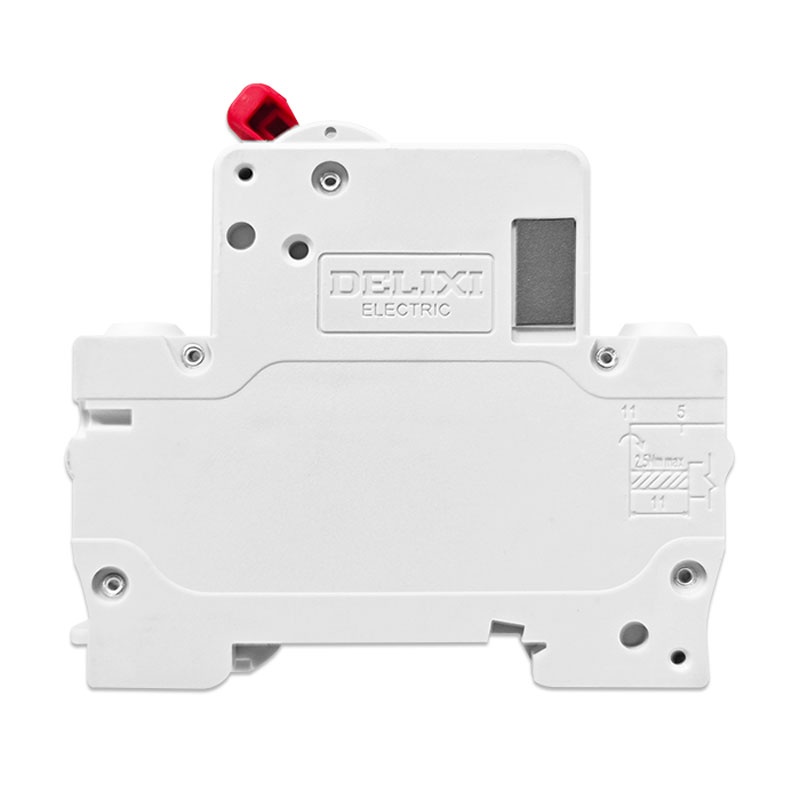

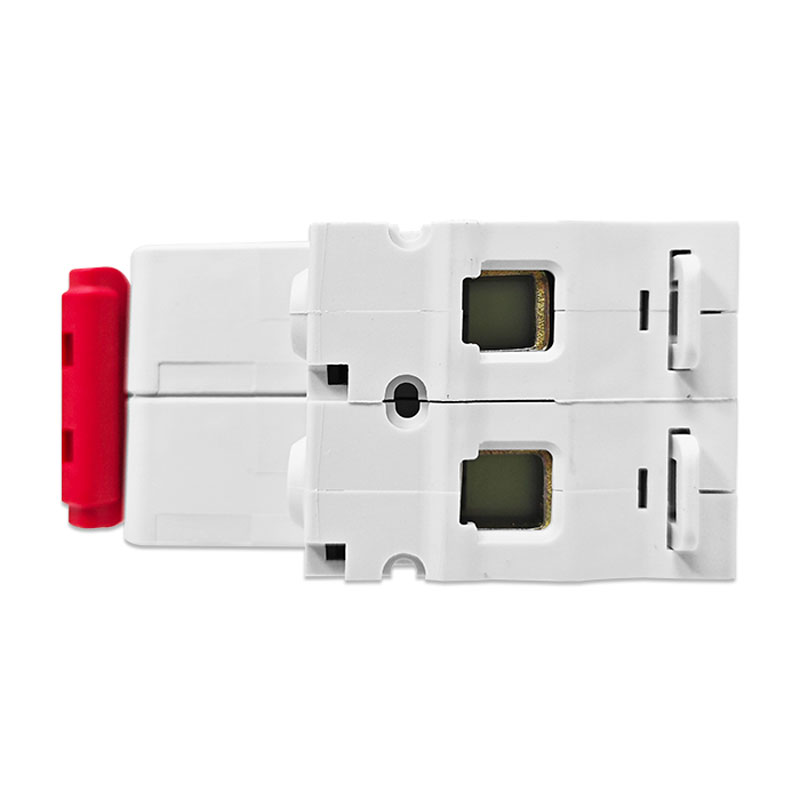

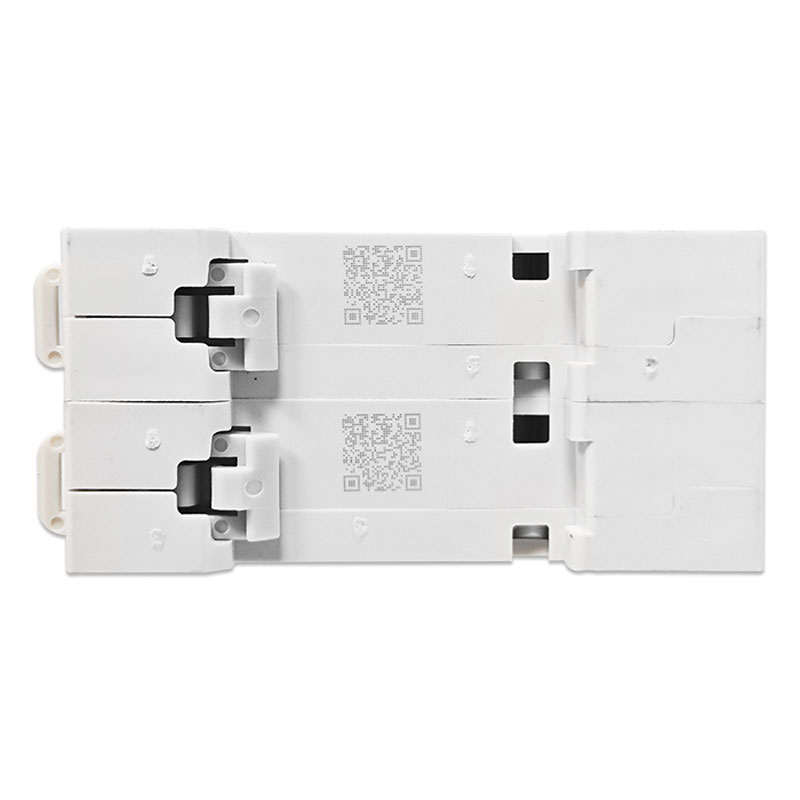

2P 16A Air Breaker C Curve 6kA DIN Rail Mount

High-performance 2P 16A air breaker for industrial distribution panels. Features 6kA breaking capacity and C curve. Ideal for solar control systems and OEMs.

Key features

2P16A Air Breaker
Poles:2P
Rated Current: 16A
Rated Voltage: 400V AC
Breaking Capacity: 6kA/10kA
Tripping Curve: C Curve
Frequency:50/60Hz
Mechanical Life:>20,000
Electrical Life:> 10.000
Mounting: DlN rail mount
Application: Suitable for solar, control, distribution, andindustrial panels

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

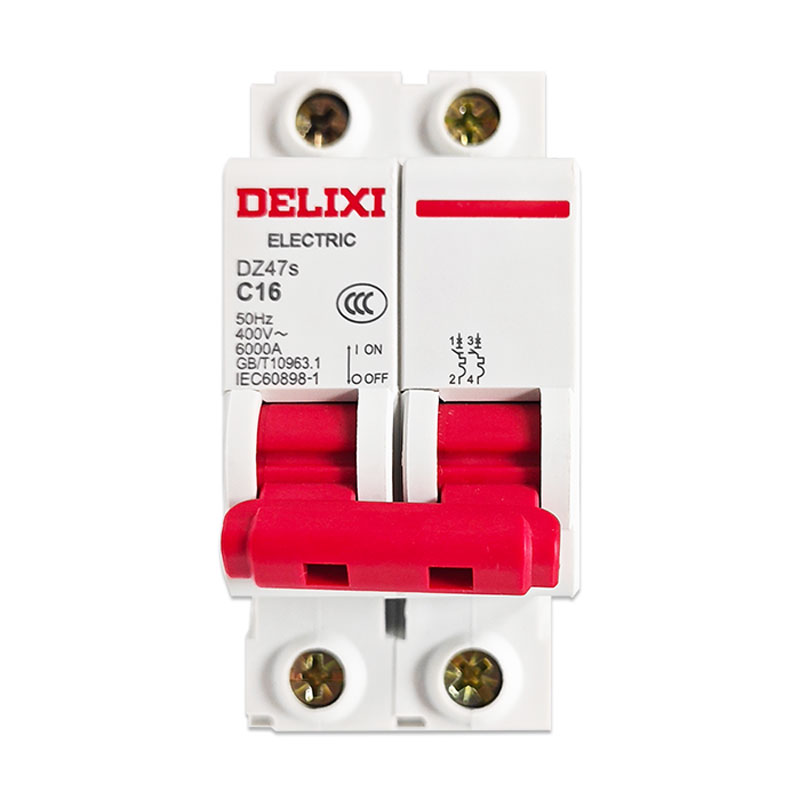

Model	DELIXI DZ47s-C16
Rated Current (In)	16A
Number of Poles / Voltage	2P / 400V
Tripping Curve	Type C
Breaking Capacity	6kA, compliant with IEC/EN 60898-1
Frequency	50 / 60 Hz
Protection Performance	Overload protection, short circuit protection, isolation control
Operating Temperature	–35°C to +70°C
Storage Temperature	–40°C to +85°C
Installation Height	Up to 2000 m above sea level
Protection Level	IP20
Installation	Standard 35 mm DIN rail
