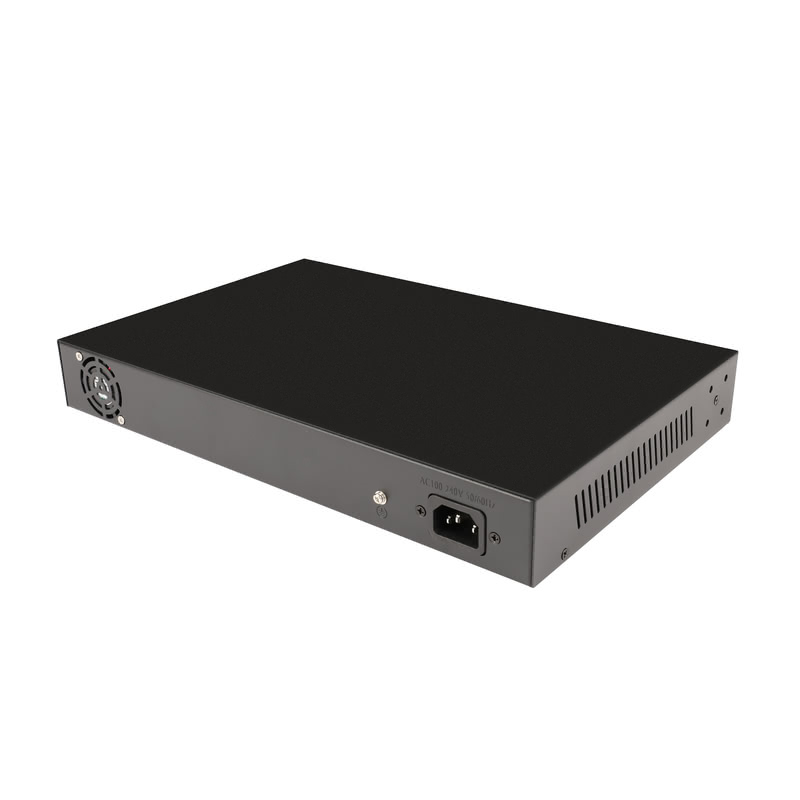

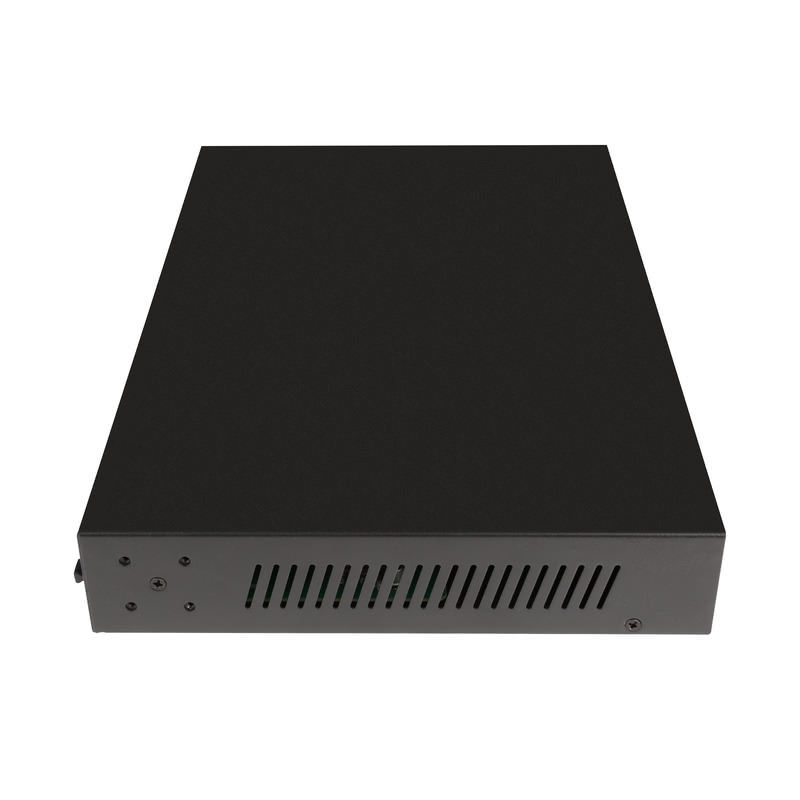

16-Port Gigabit PoE+ Switch with 2 Uplinks, 300W
Industrial 16-Port Gigabit PoE+ switch with 300W budget and 2 uplinks. Features AI Watchdog, VLAN, and long-range extend mode. Built for system integrators.
Key features
- 16GE+2GE Full Gigabit PoE Switch
- Ports 1–16 support IEEE 802.3af/at PoE, up to 30W per port
- Supports smart watchdog, VLAN, and Extend mode
- Internal 300W power supply included
- Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
- Wire-speed forwarding on all ports
- Supports desktop, wall-mounted, and rack-mount installation
Specification
Interfaces
- Model
- PS11602G
- Fixed Port
16*10/100/1000Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX RJ45 ports (Data)
PoE
- PoE Port
- Port 1-16 support PoE @ IEEE802.3af/at
- Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300 meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-16 Port support each port Isolation & VLAN;
D: Turn on, 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem & reduce after-sale.
- Fan
- Non-Fan, silent working status can satisfy more users with different requirement.
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3u 100Base-FX;
IEEE802.3x.
- PoE Standard
- IEEE802.3af/at
- Ethernet Port Feature
- 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
- Forwarding Mode
- Store and Forward
Switch Property
- Switching Capacity
- 40Gbps (non-blocking)
- Forwarding Rate
- 29.76Mpps
- MAC
- 8K
- Buffer Memory
- 4M
- Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total PWR / Input Voltage
- 300W (100-240V)
- Power Consumption
Standby:<5W
Full load:<300W
Physical Characteristics
- LED Indicator
Power indicator: PWR (Green)
Network indicator: 1-16(Link/Act) (Green),17-18(Link/Act) (Green)
- Power Supply
- Built in switching power supply, AC100~240V 50-60Hz
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
-40~+75°C
5%~95% RH non condensing
- Dimension
- 330*220*44mm
- Net /Gross Weight
<3kg / <4kg
- Installation Method
- desktop type, wall mounted, 19-inch 1U cabinet installation
- Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power: CM±4kV/DM±2kV; Port: ±6kV
- Protection Level
- IP30
Certification
- Certification
- CE, FCC, RoHS
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Hanging Ears
- 1 pcs
- Quick installation guide
- 1 pcs
