PS1802FG 8-Port Gigabit PoE+ Switch with RJ45 and SFP Uplinks
PS1802FG switch with 8 Gigabit PoE+ ports, 2 Gigabit RJ45 uplinks, 1 SFP slot, VLAN isolation, Extend mode and PoE watchdog for CCTV networks.
Key features
- 8GE+2GE+1GF Full Gigabit PoE Switch
- Ports 1–8 support IEEE 802.3af/at PoE, up to 30W per port
- Supports smart watchdog, VLAN, and Extend mode
- Internal 120W power supply included
- Supports 10/100/1000Mbps auto-negotiation, auto MDI/MDI-X
- Wire-speed forwarding on all ports
- Supports desktop, wall-mounted, and rack-mount installation
Specification
Interfaces
- Model
- PS1802FG
- Fixed Port
8*10/100/1000Base-T/TXPoEports(Data/Power)
2*10/100/1000Base-T/TXUplinkRJ45ports(Data)
1*10/100/1000Base-T/TXSFPPorts(Data)
PoE
- POE Port
- Port1-8supportPoE
- Feature
WiththeDialcodeswitch,supportportprioritybydefault.
E:AIExtend300meterstransmissionandautospeedchangeofsingleport(limit10Mbps),otherportsmaintain100M/1000Mwithin100meters;
V:Turnon,1-8PortsupporteachportIsolation&VLAN;
D:Turnon,1-8PortsupportAI-PoENetworkself-healingmode(PoEWatchdogfunction),Automaticsolvethecameraproblem&reduceafter-sale.
- Network Protocol
IEEE802.310BASE-T;IEEE802.3i10Base-T;
IEEE802.3u100Base-TX;
IEEE802.3ab1000Base-T;
IEEE802.3x
- Ethernet Port Feature
- 10/100Base-T(X)10/100/1000Base-Tautomaticdetection,full/halfDuplexMDI/MDI-Xadaptive
- Fiber Port Feature
- GigabitSFPPort(Fibremoduleisnotincluded,needtoorderseparately,moduleoptionsincludesingle/multi-mode,single/dualfiber,LC)
- Forwarding Mode
- StoreandForward
Switch Property
- Switching capacity
- 22Gbps
- Buffer Memory
- 4M
- MAC
- 4K
- Forwarding Rate
- 16.368Mpps
- Twisted Pair Transmission
10BASE-T:Cat5UTP(≤300meter)
100BASE-TX:Cat5orlaterUTP(≤100meter)
1000BASE-T:Cat5orlaterUTP(≤100meter)
- Power Supply Pin
- Default1/2(+),3/6(-);
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total PWR / Input Voltage
- 120W
- Power Consumption
Standby:<2W
Full load:<120W
Physical Characteristics
- LED Indicator
Powerindicator:PWR(Green)
Networkindicator:1-8(Link/Act)(Green),9-11(Link/Act)(Green)

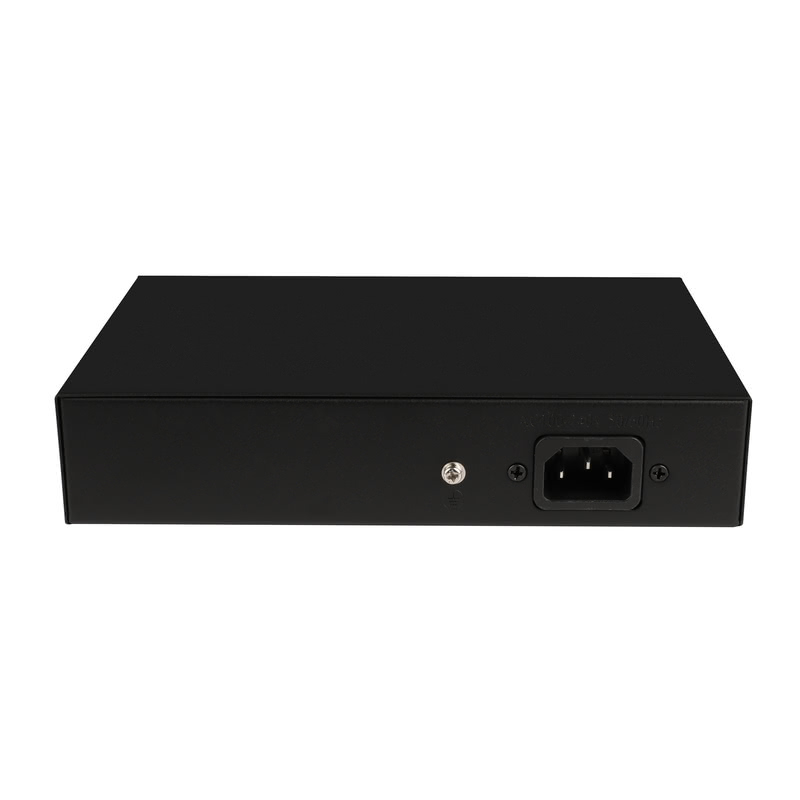

- Power Supply
- Build-inpoweradaptorAC100~240V50-60Hz,120W
- Operation TEMP / Humidity
- -20~+55°C:5%~90%RHnoncondensing
- Storage TEMP / Humidity
-40~+75°C
5%~95%RHnoncondensing
- Dimension
- 220*145*45mm
- Net /Gross Weight
<1kg / <1.2kg
- Installation Method
- desktotype,wallmounted
- Protection
IEC61000-4-2(ESD):±8kVcontactdischarge,±15kVairdischarge
IEC61000-4-5(Lightningprotection/Surge):Power:CM±4kV/DM±2kV;Port:±6kV
- Protection Level
- IP30
Certification
- Certification
- CE,FCC,RoHS
Package Contents
- Switch
- 1pcs
- Power cord
- 1pcs
- Quick installation guide
- 1pcs
Interfaces
- Model
- PS1802FG
- Fixed Port
8*10/100/1000Base-T/TXPoEports(Data/Power)
2*10/100/1000Base-T/TXUplinkRJ45ports(Data)
1*10/100/1000Base-T/TXSFPPorts(Data)
PoE
- POE Port
- Port1-8supportPoE
- Feature
WiththeDialcodeswitch,supportportprioritybydefault.
E:AIExtend300meterstransmissionandautospeedchangeofsingleport(limit10Mbps),otherportsmaintain100M/1000Mwithin100meters;
V:Turnon,1-8PortsupporteachportIsolation&VLAN;
D:Turnon,1-8PortsupportAI-PoENetworkself-healingmode(PoEWatchdogfunction),Automaticsolvethecameraproblem&reduceafter-sale.
- Network Protocol
IEEE802.310BASE-T;IEEE802.3i10Base-T;
IEEE802.3u100Base-TX;
IEEE802.3ab1000Base-T;
IEEE802.3x
- Ethernet Port Feature
- 10/100Base-T(X)10/100/1000Base-Tautomaticdetection,full/halfDuplexMDI/MDI-Xadaptive
- Fiber Port Feature
- GigabitSFPPort(Fibremoduleisnotincluded,needtoorderseparately,moduleoptionsincludesingle/multi-mode,single/dualfiber,LC)
- Forwarding Mode
- StoreandForward
Switch Property
- Switching capacity
- 22Gbps
- Buffer Memory
- 4M
- MAC
- 4K
- Forwarding Rate
- 16.368Mpps
- Twisted Pair Transmission
10BASE-T:Cat5UTP(≤300meter)
100BASE-TX:Cat5orlaterUTP(≤100meter)
1000BASE-T:Cat5orlaterUTP(≤100meter)
- Power Supply Pin
- Default1/2(+),3/6(-);
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total PWR / Input Voltage
- 120W
- Power Consumption
Standby:<2W
Full load:<120W
Physical Characteristics
- LED Indicator
Powerindicator:PWR(Green)
Networkindicator:1-8(Link/Act)(Green),9-11(Link/Act)(Green)
- Power Supply
- Build-inpoweradaptorAC100~240V50-60Hz,120W
- Operation TEMP / Humidity
- -20~+55°C:5%~90%RHnoncondensing
- Storage TEMP / Humidity
-40~+75°C
5%~95%RHnoncondensing
- Dimension
- 220*145*45mm
- Net /Gross Weight
<1kg / <1.2kg
- Installation Method
- desktotype,wallmounted
- Protection
IEC61000-4-2(ESD):±8kVcontactdischarge,±15kVairdischarge
IEC61000-4-5(Lightningprotection/Surge):Power:CM±4kV/DM±2kV;Port:±6kV
- Protection Level
- IP30
Certification
- Certification
- CE,FCC,RoHS
Package Contents
- Switch
- 1pcs
- Power cord
- 1pcs
- Quick installation guide
- 1pcs
