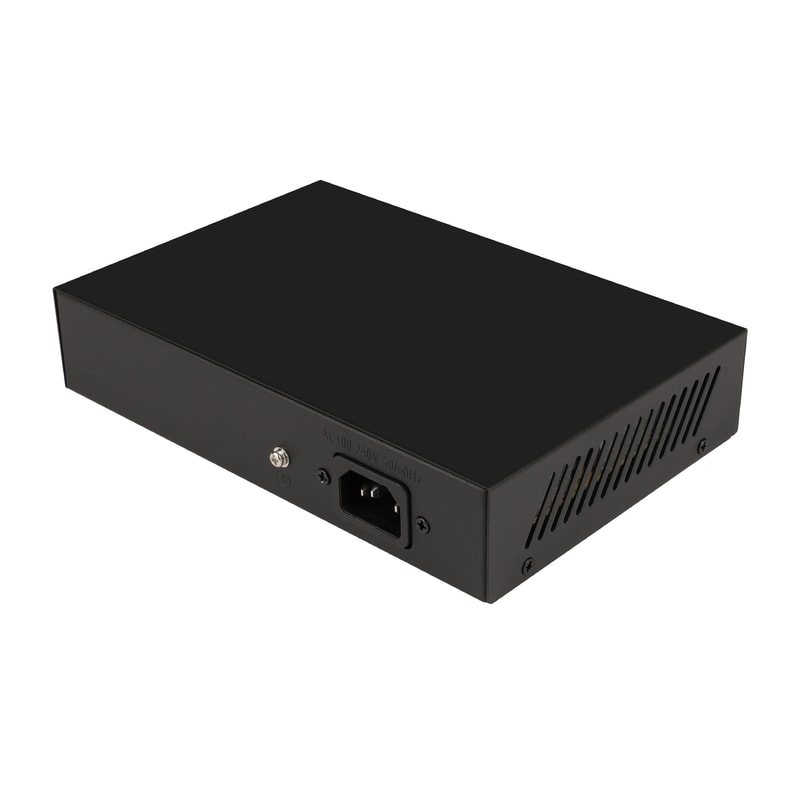

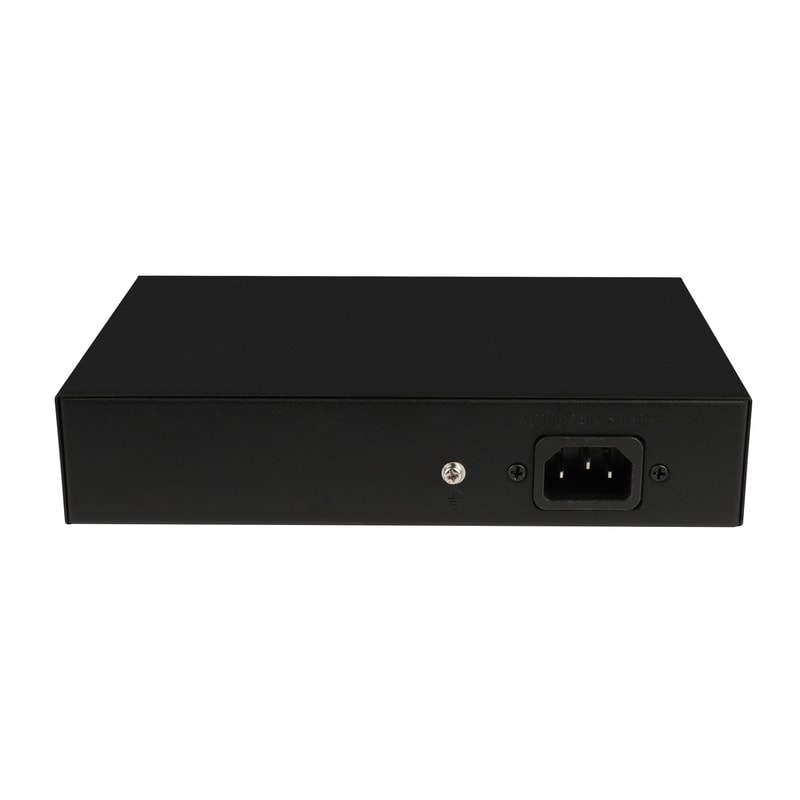

4-Port Long-Range Gigabit Unmanaged PoE Switch, 65W

4-port long-range Gigabit unmanaged PoE switch with 2 Gigabit uplinks, 65W PoE budget, 300m Extend mode, VLAN isolation, and AI watchdog.

Key features

4 Gigabit PoE ports and 2 Gigabit RJ45 uplink ports
Ports 1–4 support IEEE 802.3af/at; port 4 supports IEEE 802.3bt up to 60W
E/V/W DIP modes provide 300m Extend, VLAN isolation, and AI PoE watchdog functions
65W total PoE power budget with built-in AC power supply
Automatic 10/100/1000Mbps negotiation and auto MDI/MDI-X
Desktop or wall-mounted installation

Specification

Model: PS1402G
Fixed Ports: 4 × 10/100/1000Base-T/TX PoE ports (data/power); 2 × 10/100/1000Base-T/TX RJ45 uplink ports (data)
PoE Standard: Ports 1–4 support IEEE 802.3af/at; port 4 supports IEEE 802.3af/at/bt, up to 60W
Network Protocols: IEEE 802.3 10BASE-T; IEEE 802.3i 10Base-T; IEEE 802.3x; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T
DIP Switch Modes: E – Extend Mode: up to 300m transmission with automatic per-port speed adjustment (limited to 10Mbps); V – VLAN Mode: isolates PoE ports while retaining uplink communication; W – Watchdog Mode: detects unresponsive IP cameras and restarts PoE power automatically
Ethernet Port Features: 10/100/1000Base-T(X) auto-detection, full/half duplex, auto MDI/MDI-X

Switching Capacity: 12Gbps
Forwarding Rate: 8.9Mpps
MAC Address Table: 2K
Buffer Memory: 768K
Forwarding Mode: Store and forward
Twisted Pair Transmission: 10BASE-T: Cat5 UTP up to 300m; 100BASE-TX and 1000BASE-T: Cat5 or later UTP up to 100m
Power Supply Pin: 1/2(+), 3/6(-)
Power Supply: 65W, AC 100–240V, 50–60Hz
Power Consumption: Standby <2W; full load <65W

LED Indicators: PWR (green); Link/Act for ports 1–6 (green)
Operating Temperature / Humidity: -20°C to +55°C; 5%–90% RH, non-condensing
Storage Temperature / Humidity: -40°C to +75°C; 5%–95% RH, non-condensing
Installation: Desktop or wall-mounted
Protection: IEC 61000-4-2 ESD: ±8kV contact, ±15kV air; IEC 61000-4-5 surge: power CM ±4kV / DM ±2kV, ports ±4kV
Dimensions: 195 × 130 × 40mm
Net / Gross Weight: <0.8kg / <1.2kg
Protection Level: IP30
