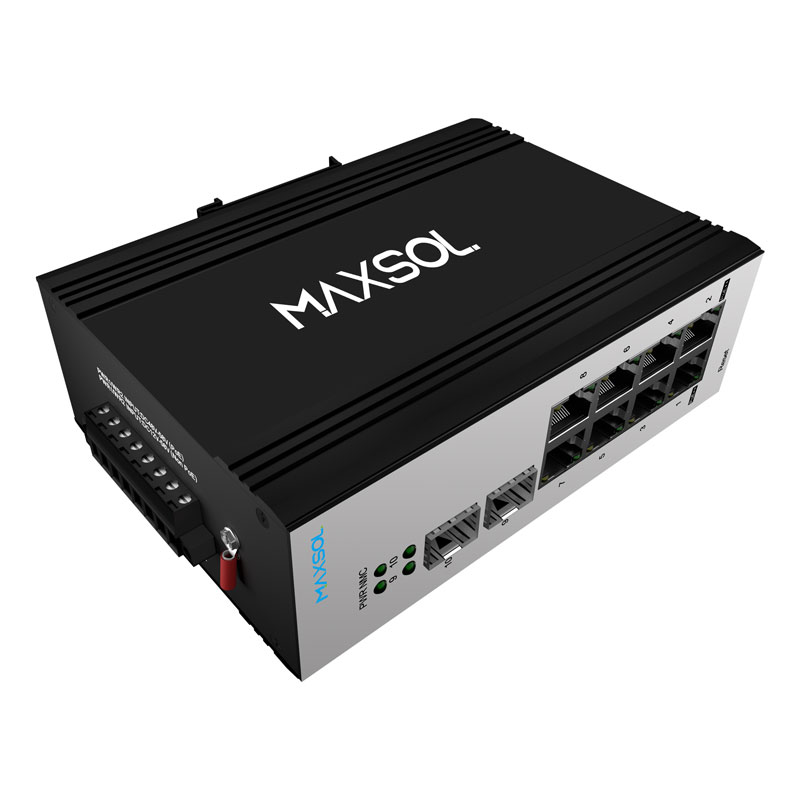

8-Port Managed Industrial Gigabit PoE++ Switch
Managed industrial switch with 8 Gigabit PoE ports, up to 90W PoE++ on ports 1–2, 2 SFP uplinks, static routing, ERPS and DIN-rail mounting.
Key features
- 8GE + 2GE SFP managed DIN-rail industrial PoE switch | Support 90W PoE Out
- Ports 1–8 support PoE / PoE+ (IEEE 802.3af/at); Ports 1–2 support PoE++ 90W (IEEE 802.3bt)
- Non-blocking architecture with Marvell chipset, DIN-rail mount, DC 48–58V wide voltage input
- Power surge protection: 6KV / 6KV; Ethernet port surge protection: 4KV / 4KV
- Web / SNMP management; VLAN, QoS, RMON, LLDP, IGMP Snooping, Port Mirroring, QinQ, Link Aggregation, DDM, ACL, SSH
- IPv4 / IPv6 management; DHCP, NTP, FTP, TFTP, Telnet, Ping, Traceroute; RSTP, MSTP, ERPS ring network; 802.1X / RADIUS; Remote PoE power-off alarm; IPv4 / IPv6 static routing
Specification
Provider Mode Ports
- Model
- PS2802SFG-I-BT

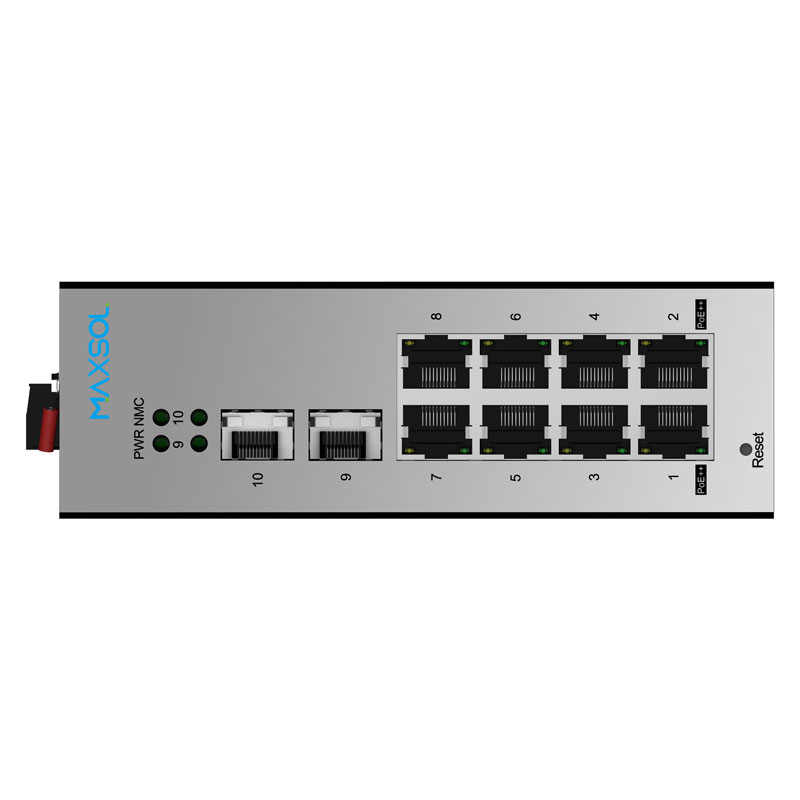

- Fixed port
2*1000 Base-X，8*10/100/1000 Base-T
- Management Port
- Support Console

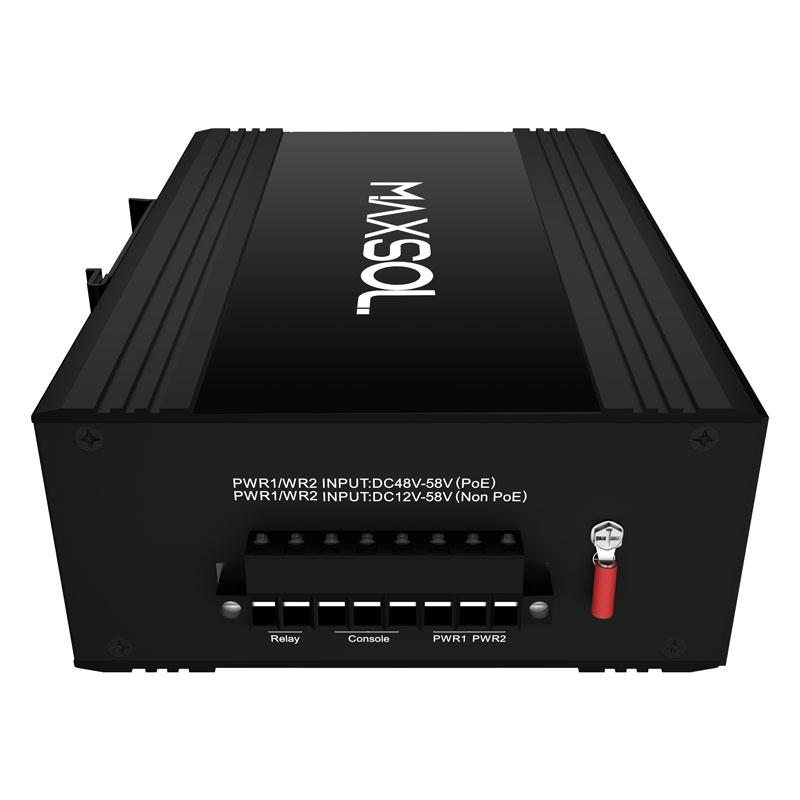

- Power interface
- Phoenix terminal, dual power input
- LED Indicators
- PWR，Link/ACT LED
Cable Type & Transmission Distance
- Twisted-pair
- 0-100m（CAT5e,CAT6）
- Monomode optical fiber
- 20/40/60/80/100KM
- Multimode optical fibre
- 550m
Network Topology
- Ring topology
- Support
- Star topology
- Support
- Bus topology
- Support
- Tree Topology
- Support
- Hybrid topology
- Support
Electrical Specifications
- Input voltage
- PoE：DC48-58V
- Total Power consumption
- PoE<250W
PoE Support (optional)
- PoE port
- 1-8
- PoE Protocol
- 802.3af，802.3at
- Pin Assignment
- 1,2+,3,6-
- PoE Management
- Support
PoE ++ Support (optional)
- PoE++ port
- 1-2
- PoE Protocol
- 802.3af，802.3at，802.3bt(1-2 Support)
- Pin Assignment
- 1245+ 3678-
- PoE Management
- Support
Layer 2 Switching
- Switching capacity
- 36G
- Packet forwarding rate
- 26.78Mpps
- MAC address table
- 16K
- VLAN
- Support 4K
- Buffer
- 12M
- Forwarding delay
- <10us
- MDI/MDIX
- Support
- Flow control
- Support
- Jumbo Frame
- Support 10Kbytes
- Spanning Tree
- Support STP/RSTP/MSTP
- Ring Protocol
- Support ERPS
- Link Aggregation
- Support 12 group
- Multicast
- Support IGMP Snooping
- Port Mirroring
- Support SPAN and RSPAN
- Port loopback detection
- Support
- Storm Control
- Support
- Interface Counters
- Support
- QINQ
- Support
- 802.1X
- Support
- MAC Authentication
- Support
- Port Isolation
- Support
- RMON
- Support
- NTP Client
- Support
- DHCP Client
- Support
- DHCP snooping
- Support
- Ping/tracert test
- Support
- Dying gasp
- Support
- DDM
- Support
- Port security
- Support
- IP Source Guard
- Support
- Device scanning
- Support
Layer 3 Function
- IPv4 static routing/IPv6 static routing
- Supports 256 static routes
- ARP
- ARP table entry aging
- DHCP server
- support
Convergence
- ACL
Supports 240 ACL entries;
Support IP standard ACL/ACLv6;
Support MAC extension ACL/ACLv6;
Support IP extension ACL/ACLv6;
Support L4 layer ACL
- QoS
Support QoS re-marking, priority mapping
Support SP, WRR queue scheduling
Support engress rate-limited, egress rate-limit
Support Policy-based QoS
Management
- CLI
- Support
- Console
- Support
- Management IP
- Support IPv4/IPv6
- Telnet/SSH
- Support
- WEB management
- Support
- SNMP
- Support SNMPv1/v2c/v3
- User Management
- Support
- User Rights Management
- Support
- System Log
- Support
- Configuration File Download/Upload
- Support
- Upgrade Firmware
- Support
Environment
- Operating temperature
- -40℃~+85℃
- Storage temperature
- -40℃~+85℃
- Relative humidity
- 5%~95% （non-condensing）
- Thermal methods
- Fanless, natural cooling
- MTBF
- 100,000 hours
Mechanical Dimensions
- Product size
- 48X104X143mm

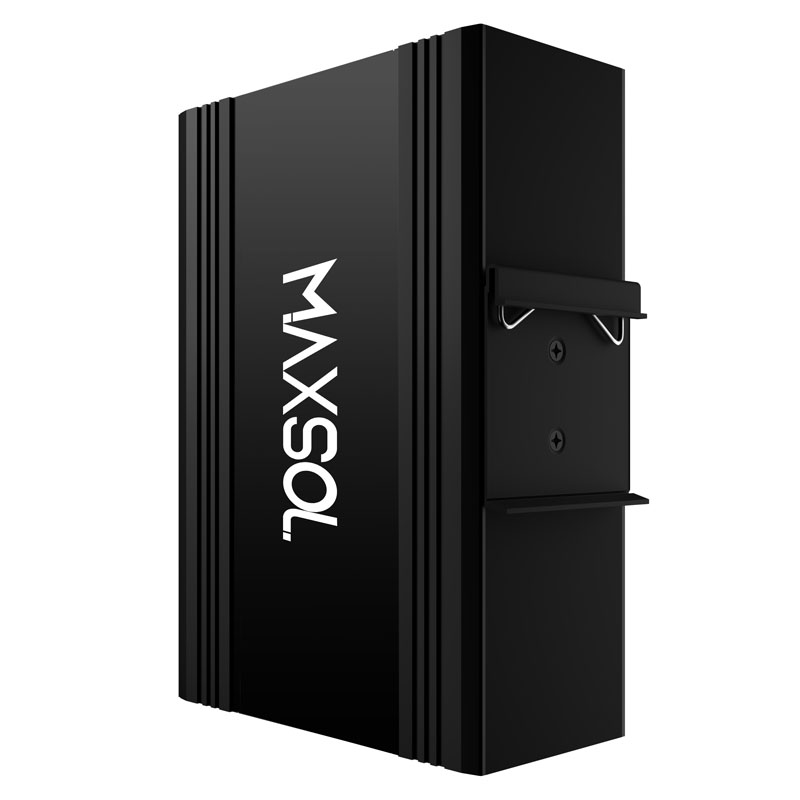

- Installation Method
- DIN-rail
- Weight
- 0.58KG
EMC&INGRESS PROTECTION
- IP Level
- IP40
- Surge protection of Power
- IEC 61000-4-5 Level X（6KV/6KV）（8/20us）
- Surge protection of Ethernet port
- IEC 61000-4-5 Level 4（4KV/4KV）（10/700us）
- RS
- IEC 61000-4-3 Level 3（10V/m）
- EFI
- IEC 61000-4-4 Level 3（1V/2V）
- CS
- IEC 61000-4-6 Level 3（10V/m）
- PFMF
- IEC 61000-4-8 Level 4（30A/m）
- DIP
- IEC 61000-4-11 Level 3（10V）
- ESD
- IEC 61000-4-2 Level 4（8K/15K）
- Free fall
- 0.5m
Authentication
- Authentication
- CE/FCC/RoHS
Accessories
- Accessories
Device, Terminals, Specification, Certificate
Adapter(optional)
