8-Port Gigabit PoE+ Switch, 2 SFP Uplinks
Model: PS1802SFG

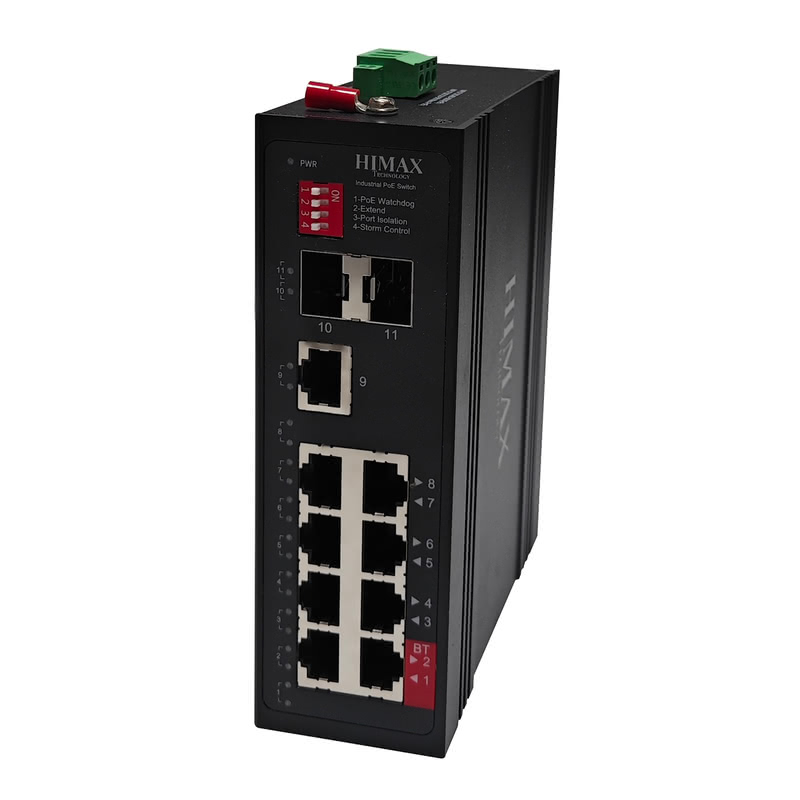

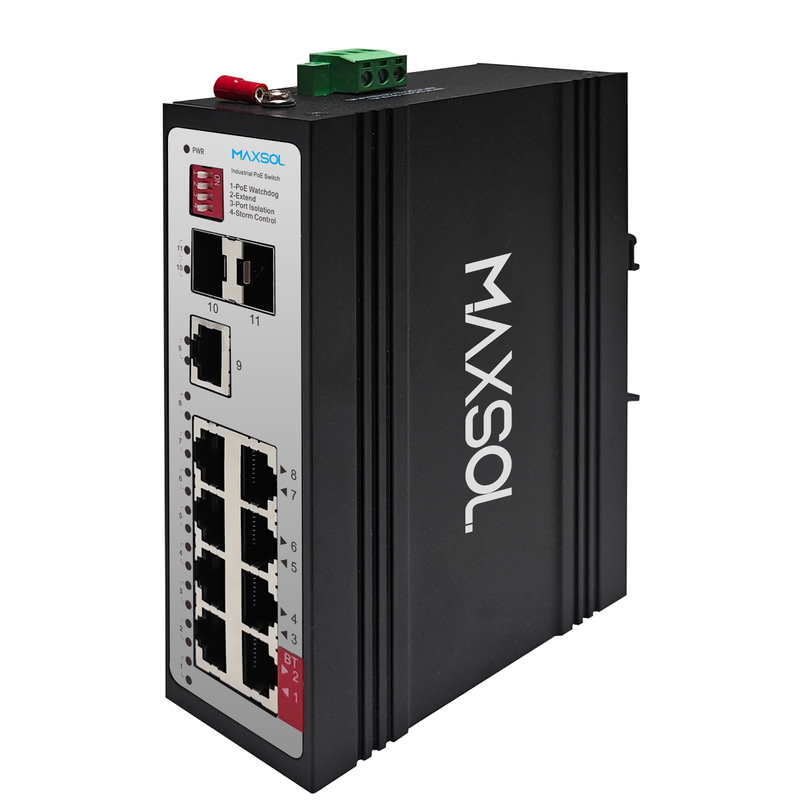

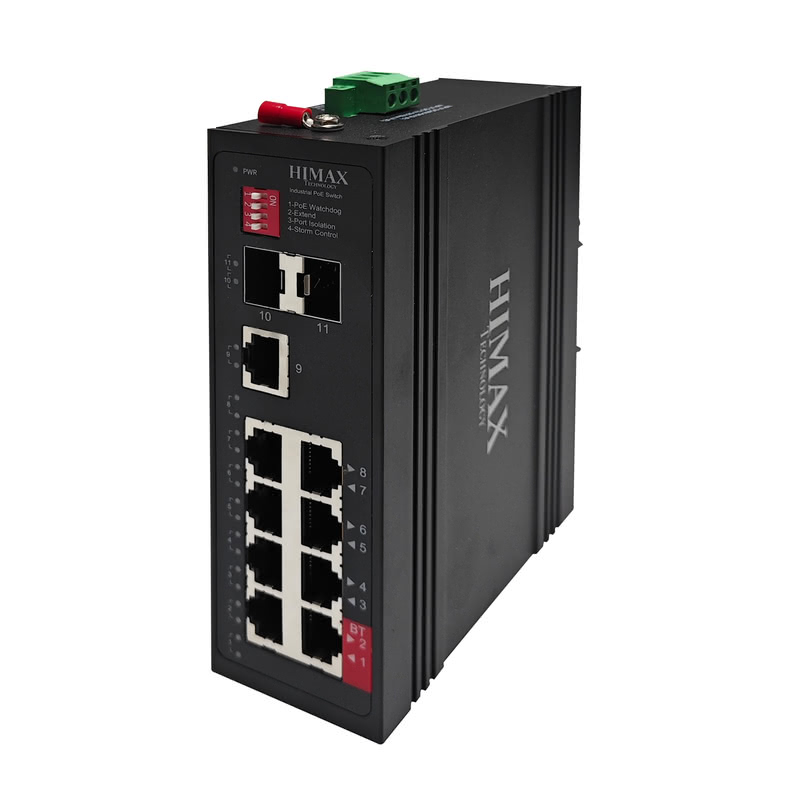

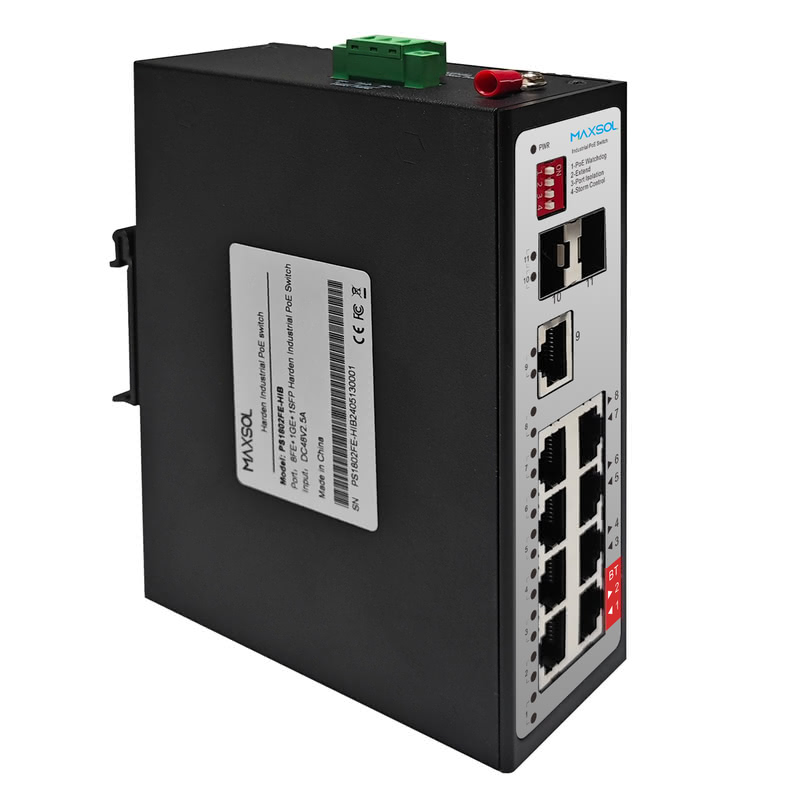

8-Port Industrial PoE++ Switch with SFP Uplinks
Rugged 8-port Industrial HiPOE switch features 90W BT and SFP uplinks. IP40 DIN-rail mount with watchdog. Reliable for heavy industrial network integration use.
Key features
- 8FE+1GE+2GF HiPOE Harden Industrial PoE Switch
- 1-2 ports support 90W, 3-8 ports support IEEE 802.3af/at
- With the Dial code switch, Watchdog+Extend+Vlan+Port Isolation
- Only support 1,2(+)/3,6(-)
- Input Voltage: DC48-58V
- IP protection level:IP40
- Rail-type installation.
- -30℃～65℃ working temperature
Specification
Interfaces
- Model
- PS1802FE-HIB
- Interfaces
8 × 10/100Base-T/TX PoE ports (Data/Power)
1 × 10/100/1000Base-T RJ45 port (Data)
2 × 100/1000Base-X SFP ports (Data)
PoE & Network
- PoE Ports
Ports 3–8: IEEE802.3af/at
Ports 1–2: IEEE802.3af/at/bt 90W
- Network Protocol
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-T/TX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3u 100BASE-FX
IEEE802.3x
- Topology Support
Ring: Unsupported
Star / Bus / Tree: Supported
- PoE Standard
- IEEE802.3af/at/bt
- Features
Dial code switch supports port priority
PoE watchdog, 250m long-distance transmission, VLAN, Storm suppression
- SFP Port
- Gigabit SFP, optical module not included (optional: multi/single-mode, single/dual fiber)
- Layer 2 Switching
Switching capacity: 7.6G
Forwarding rate: 5.65Mpps
MAC table: 16K
Buffer: 2K
Forwarding delay: <5µs
MDI/MDIX: Supported
Flow control: Supported
Jumbo frame: Supported 2K bytes
- Cable & Transmission
Twisted-pair: 0–100m (CAT5e/6)
Monomode fiber: 20–100km
Multimode fiber: 550m

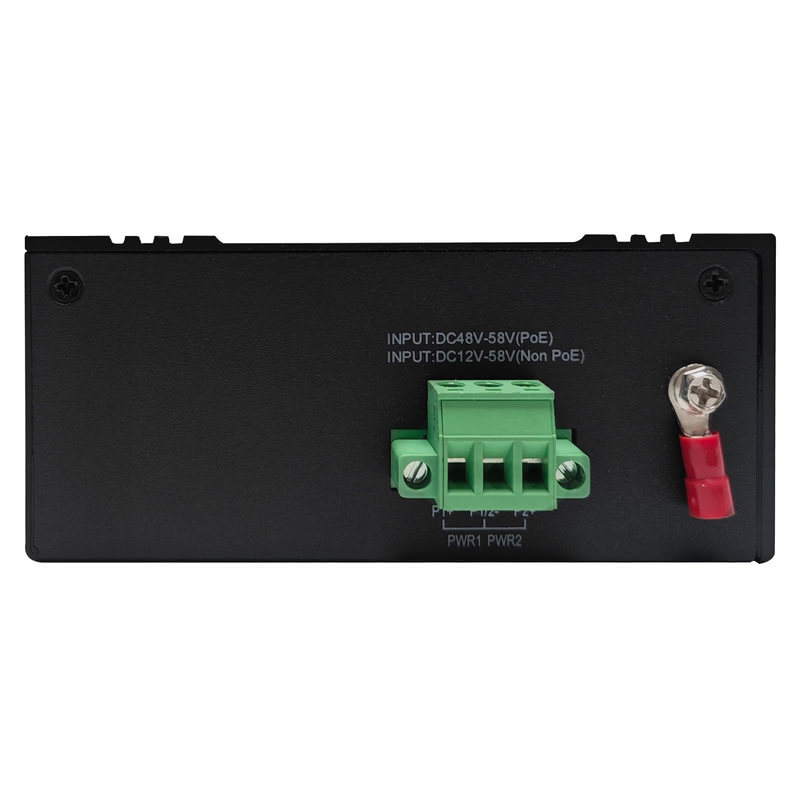

- Power
Input: DC48–58V
Main board: <10W
PoE pins: 1,2+/3,6- (AF/AT), 1–8 (BT)
- Environment
Operating: -30~+65°C
Storage: -40~+75°C
Humidity: 10–90% non-condensing
Cooling: Fanless, natural
MTBF: 100,000 hours
- Mechanical
Size: 46×104×143mm (W×D×H)
Installation: DIN rail
Weight: ~0.55kg
- EMC & Protection
IP Level: IP40
Surge Power: IEC61000-4-5 Level3 (4kV/2kV, 8/20µs)
Surge Ethernet: IEC61000-4-5 Level3 (4kV/2kV, 10/700µs)
ESD: IEC61000-4-2 Level4 (8kV/15kV)
- Certification
- CCC/CE/FCC/RoHS
- Warranty
- 5 Years
- Package Contents
- Switch, DIN-Rail accessories, Quick installation guide
Interfaces
- Model
- PS1802FE-HIB
- Interfaces
8 × 10/100Base-T/TX PoE ports (Data/Power)
1 × 10/100/1000Base-T RJ45 port (Data)
2 × 100/1000Base-X SFP ports (Data)
PoE & Network
- PoE Ports
Ports 3–8: IEEE802.3af/at
Ports 1–2: IEEE802.3af/at/bt 90W
- Network Protocol
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-T/TX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-X
IEEE802.3u 100BASE-FX
IEEE802.3x
- Topology Support
Ring: Unsupported
Star / Bus / Tree: Supported
- PoE Standard
- IEEE802.3af/at/bt
- Features
Dial code switch supports port priority
PoE watchdog, 250m long-distance transmission, VLAN, Storm suppression
- SFP Port
- Gigabit SFP, optical module not included (optional: multi/single-mode, single/dual fiber)
- Layer 2 Switching
Switching capacity: 7.6G
Forwarding rate: 5.65Mpps
MAC table: 16K
Buffer: 2K
Forwarding delay: <5µs
MDI/MDIX: Supported
Flow control: Supported
Jumbo frame: Supported 2K bytes
- Cable & Transmission
Twisted-pair: 0–100m (CAT5e/6)
Monomode fiber: 20–100km
Multimode fiber: 550m
- Power
Input: DC48–58V
Main board: <10W
PoE pins: 1,2+/3,6- (AF/AT), 1–8 (BT)
- Environment
Operating: -30~+65°C
Storage: -40~+75°C
Humidity: 10–90% non-condensing
Cooling: Fanless, natural
MTBF: 100,000 hours
- Mechanical
Size: 46×104×143mm (W×D×H)
Installation: DIN rail
Weight: ~0.55kg
- EMC & Protection
IP Level: IP40
Surge Power: IEC61000-4-5 Level3 (4kV/2kV, 8/20µs)
Surge Ethernet: IEC61000-4-5 Level3 (4kV/2kV, 10/700µs)
ESD: IEC61000-4-2 Level4 (8kV/15kV)
- Certification
- CCC/CE/FCC/RoHS
- Warranty
- 5 Years
- Package Contents
- Switch, DIN-Rail accessories, Quick installation guide
