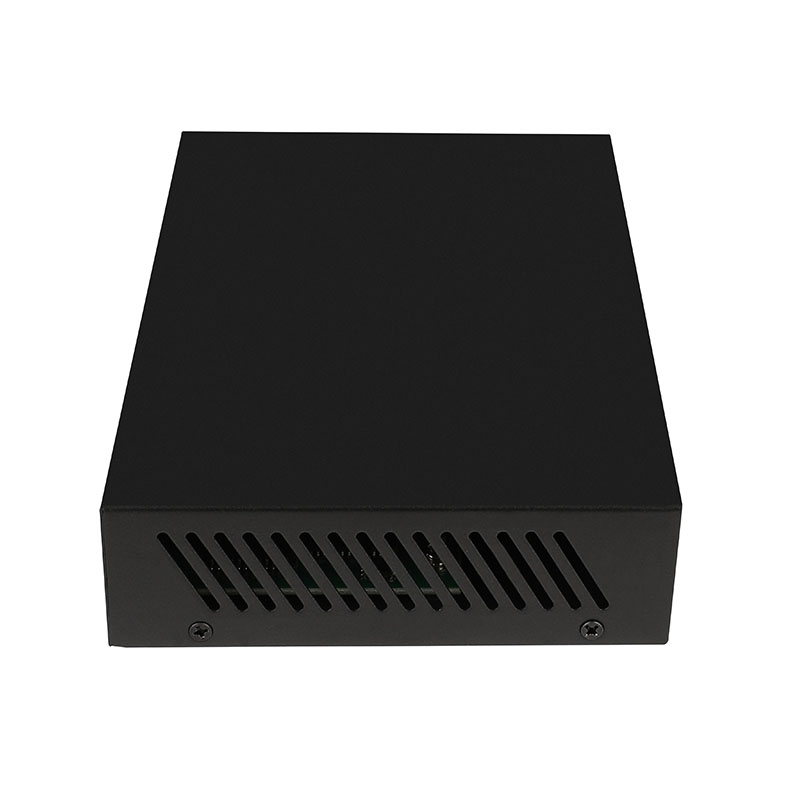

8-Port Long-Range Gigabit Unmanaged PoE Switch, 120W
Model: PS1802G
8-Port Fast Ethernet PoE+ Switch with 2 Gigabit Uplinks
Industrial 8-Port PoE switch with 2 GE uplinks. Supports 300m long-range power & AI Watchdog. High-performance network solution for security integrators.
Key features
- 8FE+2GE Uplink Lite Series 300M Long Range PoE Switch
- IEEE 802.3af/at compliant, up to 30 W per PoE port
- Internal power adapter supply 120W
- Support DIP switch to VLAN / Extend 300M / Watchdog
- Support AI network self-healing (watchdog) function
- Support desktop and wall-mounted installation
- 6KV surge protection function
Specification
Interfaces
- Model
- PS1802GE-L
- Fixed Port
8*10/100Base-T/TX PoE ports (Data/Power)
2*10/1000Base-T/TX Uplink RJ45 ports (Data)
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Store and Forwards
PoE
- PoE Port
- Port 1-8 support PoE
- Feature
With the Dial code switch,
E: AI Extend 300meters transmission;
V: Turn on, 1-8 Port support each port Isolation & VLAN;
Support Watchdog function by default: 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
W: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
Switch Property
- Switching Capacity
- 2.0Gbps
- Forwarding Mode
- 1.488Mpps
- MAC address table
- 4K
- Buffer Memory
- 1.25M
- Twisted Pair Transmission
10BASE-T:Cat5 UTP(≤300 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total PWR / Input Voltage
- 120W
- Power Consumption
Standby:<4W
Full load:<120W
Physical Characteristics
- LED Indicator
Power indicator: PWR (Green)
Network indicator: 1-8(Link/Act)/ (Green), 9-10(Link/Act)/ (Green)

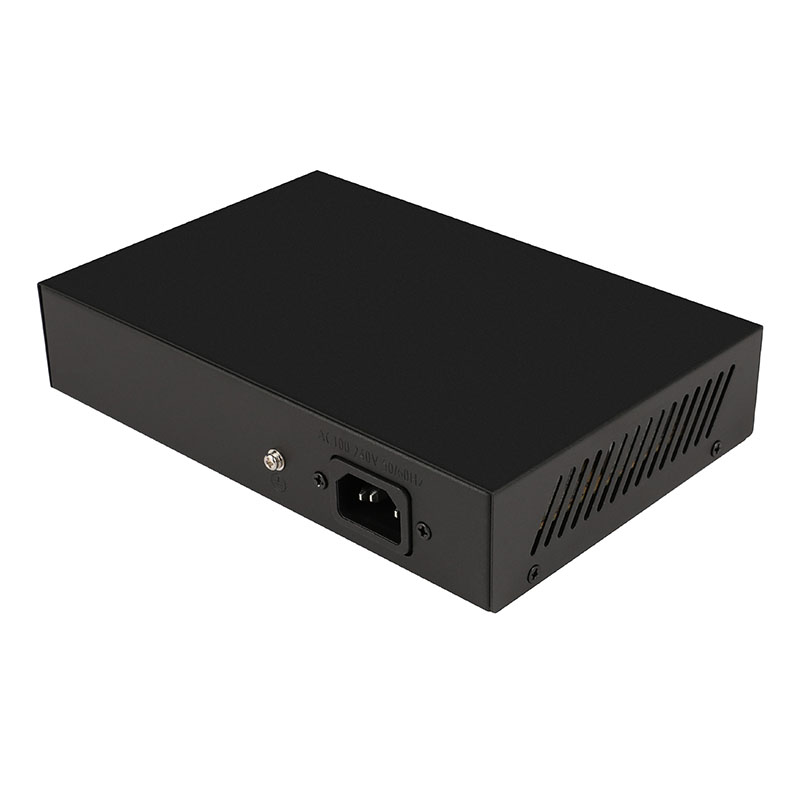

- Power Supply
- Built-in power adaptor AC100~240V 50-60Hz,120W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*135*40mm
- Net /Gross Weight
Net: <1.0kg
Gross: <1.2kg
- Installation Method
- desktop type, wall mounted
- Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±6kV
- Protection level
- IP30
Certification
- Certification
- CE, FCC, RoHS
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
Interfaces
- Model
- PS1802GE-L
- Fixed Port
8*10/100Base-T/TX PoE ports (Data/Power)
2*10/1000Base-T/TX Uplink RJ45 ports (Data)
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Store and Forwards
PoE
- PoE Port
- Port 1-8 support PoE
- Feature
With the Dial code switch,
E: AI Extend 300meters transmission;
V: Turn on, 1-8 Port support each port Isolation & VLAN;
Support Watchdog function by default: 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
W: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
Switch Property
- Switching Capacity
- 2.0Gbps
- Forwarding Mode
- 1.488Mpps
- MAC address table
- 4K
- Buffer Memory
- 1.25M
- Twisted Pair Transmission
10BASE-T:Cat5 UTP(≤300 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total PWR / Input Voltage
- 120W
- Power Consumption
Standby:<4W
Full load:<120W
Physical Characteristics
- LED Indicator
Power indicator: PWR (Green)
Network indicator: 1-8(Link/Act)/ (Green), 9-10(Link/Act)/ (Green)
- Power Supply
- Built-in power adaptor AC100~240V 50-60Hz,120W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*135*40mm
- Net /Gross Weight
Net: <1.0kg
Gross: <1.2kg
- Installation Method
- desktop type, wall mounted
- Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±6kV
- Protection level
- IP30
Certification
- Certification
- CE, FCC, RoHS
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
