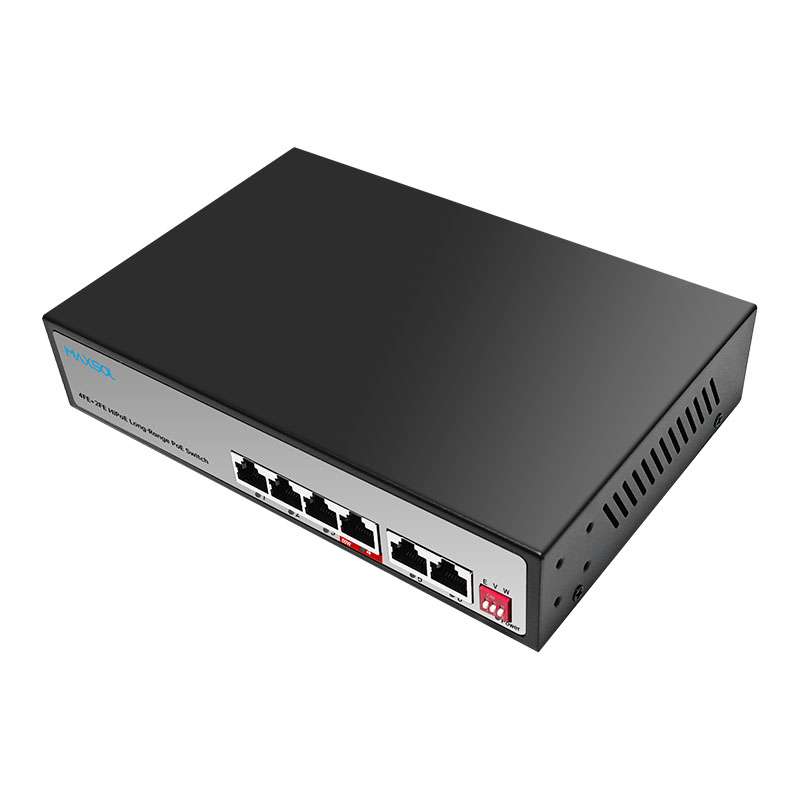

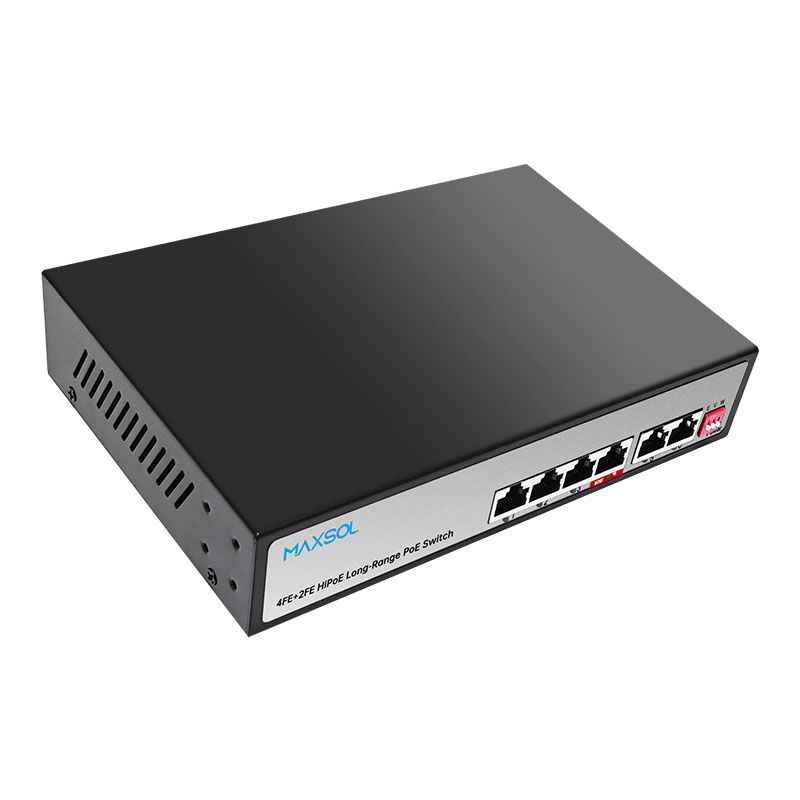

4-Port Hi-PoE Switch with VLAN and Extend Mode
4-port Hi-PoE switch with 300-meter transmission and a 65W power budget, featuring VLAN, AI Watchdog, and up to 60W output on the Hi-PoE port.
Key features

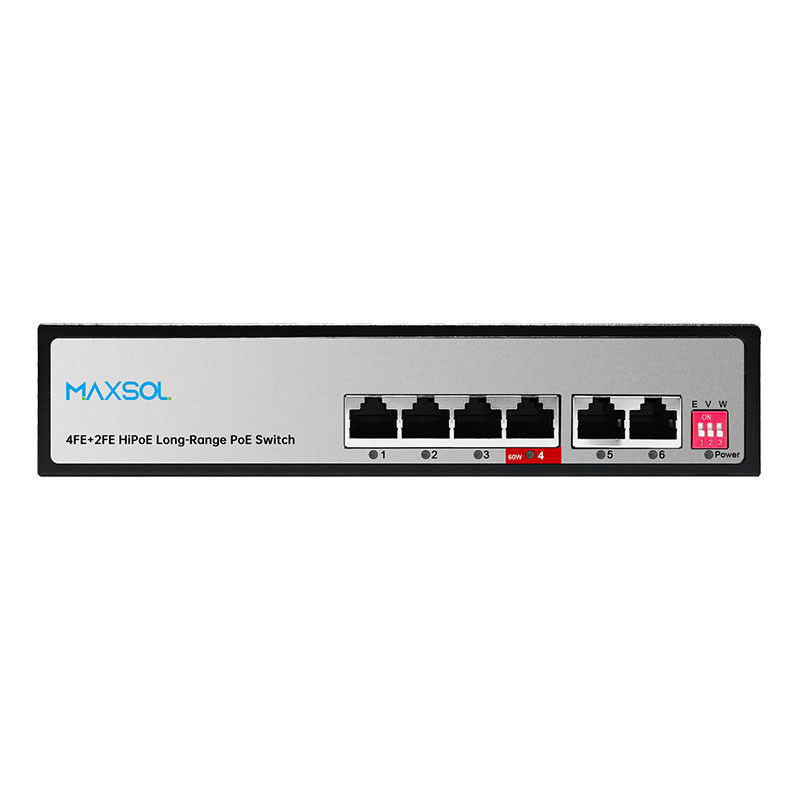

- 4FE+2FE Uplink HiPoE 300M Long Range PoE Switch
- Supports smart watchdog function to monitor compliant PD
- Port 4 supports Hi-PoE power up to 60W fit IEEE 802.3bt compliant PDs
- Port 1-3 supports PoE 30W fit IEEE 802.3af/at compliant PDs
- Support VLAN
- Internal power adapter supply 65W (included)
Specification
Interfaces
- Model
- PS1402E
- Fixed Port
4*10/100Base-T/TX PoE ports (Data/Power)
2*10/100Base-T/TX Uplink RJ45 ports (Data)
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Store and Forwards
PoE
- PoE Port
- Port 1-4 support PoE
- Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-4 Port support each port Isolation & VLAN;
W: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
Switch Property
- Switching Capacity
- 1.2Gbps
- Forwarding Mode
- 0.89Mpps
- MAC address table
- 2K
- Buffer Memory
- 768K
- Twisted Pair Transmission
10BASE-T:Cat5 UTP(≤300 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX power each port
- Port 1-3 30W, port 4 60W
- Total PWR / Input Voltage
- 65W (52VAC)
- Power Consumption
Standby:<2W
Full load:<65W
Physical Characteristics
- LED Indicator
Power indicator: PWR (Green);
Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act)/ (Green),
- Power Supply

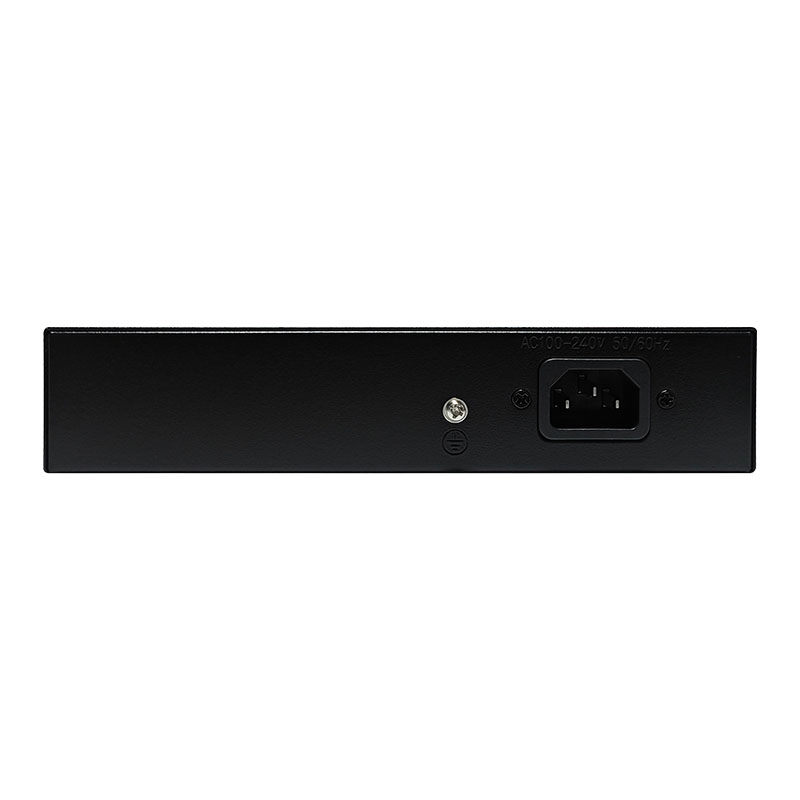

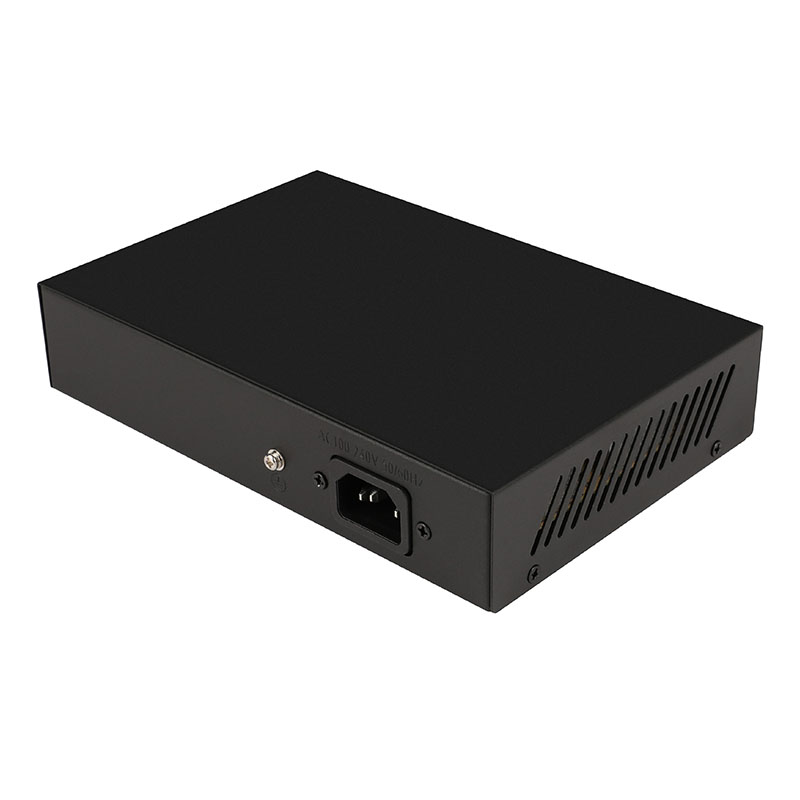

- Build-in power adaptor AC100~240V 50-60Hz,65W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*130*40mm
- Net /Gross Weight
Net: <0.8kg
Gross: <1.2kg
- Installation Method
- desktop type, wall mounted
- Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
- Protection level
- IP30
Certification
- Certification
- CE, FCC, RoHS

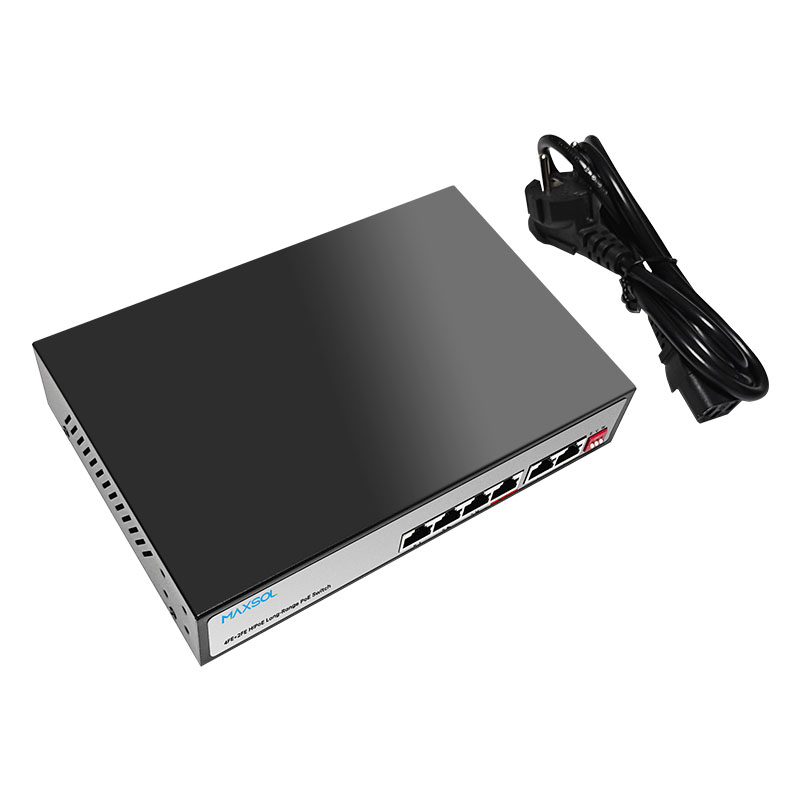

Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
Interfaces
- Model
- PS1402E
- Fixed Port
4*10/100Base-T/TX PoE ports (Data/Power)
2*10/100Base-T/TX Uplink RJ45 ports (Data)
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3x.
- Ethernet Port Feature
- 10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Store and Forwards
PoE
- PoE Port
- Port 1-4 support PoE
- Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-4 Port support each port Isolation & VLAN;
W: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
Switch Property
- Switching Capacity
- 1.2Gbps
- Forwarding Mode
- 0.89Mpps
- MAC address table
- 2K
- Buffer Memory
- 768K
- Twisted Pair Transmission
10BASE-T:Cat5 UTP(≤300 meter)
100BASE-TX:Cat5 or later UTP(≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX power each port
- Port 1-3 30W, port 4 60W
- Total PWR / Input Voltage
- 65W (52VAC)
- Power Consumption
Standby:<2W
Full load:<65W
Physical Characteristics
- LED Indicator
Power indicator: PWR (Green);
Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act)/ (Green),
- Power Supply
- Build-in power adaptor AC100~240V 50-60Hz,65W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 195*130*40mm
- Net /Gross Weight
Net: <0.8kg
Gross: <1.2kg
- Installation Method
- desktop type, wall mounted
- Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
- Protection level
- IP30
Certification
- Certification
- CE, FCC, RoHS
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Quick installation guide
- 1 pcs
