24-Port Fast Ethernet PoE+ Switch with Gigabit Uplinks

24-port Fast Ethernet PoE+ switch with 2 Gigabit RJ45 uplinks, 1 SFP slot, 300W power supply, VLAN isolation, Extend mode and PoE watchdog.

Key features

  • 24FE+2GE+1GF Uplink Lite Series 300M Long Range PoE Switch
  • IEEE 802.3af/at compliant, up to 30 W per PoE port
  • Internal power adapter supply 300W
  • Support DIP switch to VLAN / Extend 300M / Watchdog
  • Support AI network self-healing (watchdog) function
  • Support desktop and wall-mounted, and rack-mount installation
  • Plug and Play, no configuration requirements

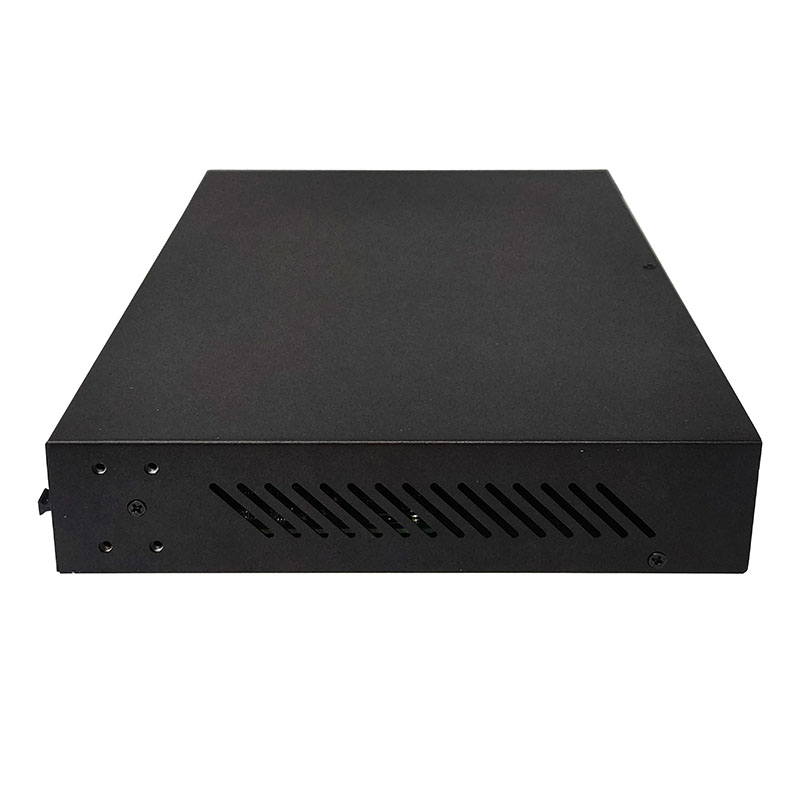

  • Metal case, internal power supply, excellent heat dissipation performance for long-term stable operation
  • 6KV surge protection function
Send Inquiry By Emailsales@maxsol-tech.com
DatasheetDownloadView

Specification

Interfaces

Model
PS12402FE-L
Fixed Port

24*10/100Base-TX PoE ports (Data/Power)

2*10/100/1000Base-T RJ45 ports (Data)

1*100/1000Base-X uplink SFP fiber slot (Data)

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000base-X;

IEEE802.3x.

Ethernet Port Feature
10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature
Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
Forwarding Mode
Store and Forward

PoE

POE Port
Port 1-24 support PoE @ IEEE802.3af/at
Feature

With the Dial code switch,

E: AI Extend 300meters transmission;

V: Turn on, 1-24 Port support each port Isolation & VLAN;

Support Watchdog function by default: 1-24 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

W: Turn on, 1-24 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.

Fan
Non-Fan, silent working status can satisfy more users with different requirement.
PoE Standard
IEEE802.3af/at

Switch Property

Switching Capacity
10.8Gbps (non-blocking)
Forwarding Mode
8.05Mpps
MAC address table
8K
Buffer Memory
4M
Twisted Pair Transmission

10BASE-T: Cat5 UTP (≤300 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5 or later UTP (≤100 meter)

Power Supply Pin
Default 1/2(+), 3/6(-)
MAX / AVERAGE Power Per Port
30W/15.4W
Total PWR / Input Voltage
300W (100-240V)
Power Consumption

Standby:<5W

Full load:<300W

Physical Characteristics

LED Indicator

Power indicator: PWR (Green)

Network indicator: 1-24(Link/Act)/ (Green),25-27(Link/Act)/ (Green)

Power Supply

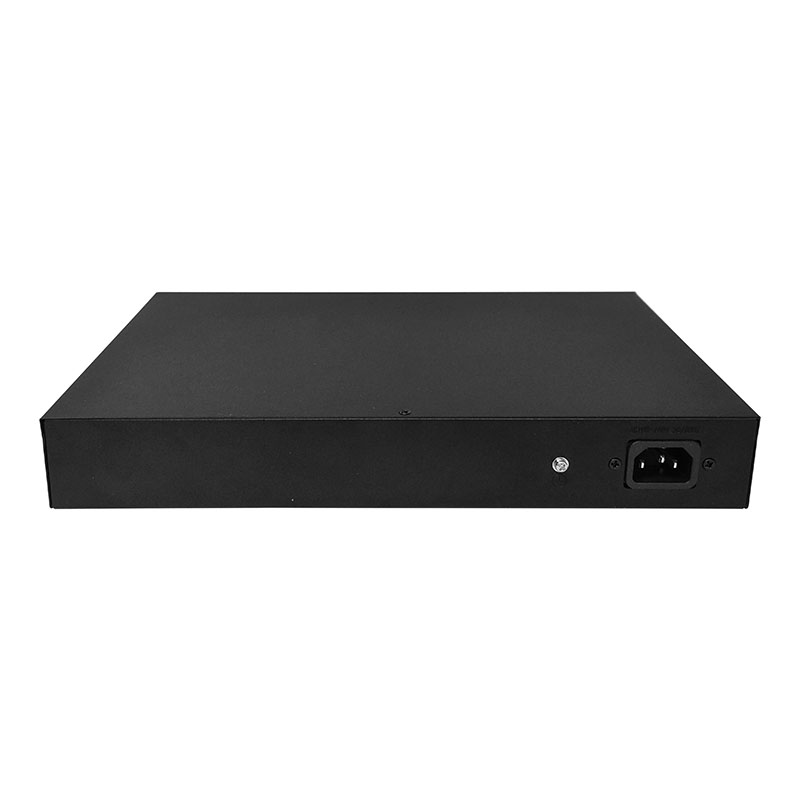

Built in switching power supply, AC100~240V 50-60Hz 4.1A
Operation TEMP / Humidity
-20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH non condensing
Dimension
310*205*44mm
Net /Gross Weight

Net: <2.5kg

Gross: <3kg

Installation Method
desktop type, wall mounted,19-inch 1U cabinet installation
Protection

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±6kV

Protection Level
IP30

Certification

Certification
CE, FCC, RoHS

Package Contents

Switch
1 pcs
Power cord
1 pcs
Hanging Ears
1 pcs
Quick installation guide
1 pcs
