MPPT vs PWM Solar Controllers for Outdoor Systems

For most outdoor solar power systems, MPPT is the better choice when panel voltage is substantially higher than battery voltage, solar collection area is limited, weather conditions vary, or reliable energy harvesting is important. PWM remains a practical option for small, cost-sensitive systems where the panel and battery voltages are closely matched.

The decision should not be based on an advertised efficiency percentage alone. A useful MPPT vs PWM solar charge controller outdoor comparison must consider panel voltage, cold-weather open-circuit voltage, array current, battery chemistry, controller standby demand and the cost of the entire system.

How MPPT and PWM charge controllers operate

Both controller types regulate the energy flowing from a solar panel to a battery, but they handle the panel’s operating voltage differently.

How a PWM controller works

A pulse-width modulation controller effectively connects the panel to the battery in controlled pulses. When connected, the panel’s operating voltage is pulled towards the battery’s charging voltage.

This can work well when:

The panel is designed for the nominal battery voltage.
The panel’s maximum-power voltage is reasonably close to the required charging voltage.
The system is small and has enough panel capacity for the load.
Low upfront controller cost is more important than extracting the maximum possible panel power.

The main limitation is that a PWM controller does not convert surplus panel voltage into additional charging current. If a high-voltage panel is connected to a lower-voltage battery through PWM, much of the panel’s available voltage cannot be used effectively.

How an MPPT controller works

A maximum power point tracking controller searches for the panel voltage and current combination that produces the most available power under the current conditions. Its DC-to-DC conversion stage then transforms that power into a voltage suitable for battery charging.

This lets the panel operate nearer its preferred maximum-power voltage rather than being pulled down towards battery voltage. Subject to conversion losses and controller limits, the corresponding battery-side charging current may be higher than the panel-side current.

MPPT is particularly useful where:

Panel voltage is significantly above battery charging voltage.
Higher-voltage arrays are used to reduce cable current and voltage drop.
Available mounting area is limited.
Seasonal temperatures cause substantial panel-voltage changes.
The system supports an important continuous load such as CCTV, wireless networking or site monitoring.

MPPT is not automatically superior in every operating condition. In a small, correctly voltage-matched system, the additional harvest may be too limited to justify the extra controller cost and standby consumption.

Panel and battery voltage matching

Voltage compatibility is the first technical check when choosing between PWM and MPPT.

With PWM, the panel should normally have an operating voltage suited to the battery’s charging range. A panel with a much higher maximum-power voltage is generally a poor match because PWM cannot convert the voltage difference into useful battery-side current.

MPPT allows a wider voltage difference, but that does not mean any panel can be connected to any controller. Confirm all of the following:

Maximum PV open-circuit voltage, or Voc
MPPT operating-voltage range
Minimum PV voltage needed to start and continue charging
Maximum PV input current
Maximum supported array power
Maximum battery charging current
Supported nominal battery voltage
Permitted series and parallel panel arrangements

Series-connected panels raise array voltage. Parallel-connected panels raise array current. Either arrangement can exceed a controller limit if it is not checked correctly.

Why cold-weather Voc matters

A solar panel’s open-circuit voltage normally increases as cell temperature falls. The array may therefore remain within the controller’s voltage limit on a hot afternoon but exceed it on a cold, clear morning.

The correct calculation uses:

The panel’s rated Voc.
The manufacturer’s Voc temperature coefficient.
The lowest credible panel temperature at the site.
The number of panels connected in series.
A design margin where required by the equipment documentation.

This check remains relevant in South Africa. Cold winter conditions can occur in inland and elevated areas, even where daytime solar heating is strong. Use a realistic site temperature rather than relying only on average ambient conditions.

A controller’s maximum PV voltage is a hard electrical limit, not a target operating value. Exceeding it can damage the controller, even if the array’s rated power appears acceptable.

Hypothetical voltage-conversion example

Assume, purely for illustration, that a panel could produce 40V at 10A at its maximum power point: 400W under that assumed condition. Also assume the battery is charging at 14V.

A PWM controller would pull the panel towards the battery voltage. In a simplified approximation, 10A at 14V would represent about 140W before other losses. The exact result depends on the panel’s current-voltage curve.

An MPPT controller could, in principle, convert the higher-voltage 400W input into approximately 28.6A at 14V before losses. However, if the controller’s charge-current limit were 20A, output would be restricted to that limit. It would not deliver the full calculated current.

This hypothetical example is not measured product performance. It shows why panel wattage, voltage and controller charge-current limits must be evaluated together.

For complete site design, controller selection should follow load and array calculations rather than replace them. The practical process is covered in this guide to sizing an off-grid solar power system for CCTV.

Temperature, shading and seasonal solar yield

Outdoor solar performance changes with panel temperature, irradiance, shade, battery state of charge and load behaviour. The controller cannot remove these environmental constraints, but its operating method affects how much available panel power reaches the battery.

High panel temperatures

As solar cells become hotter, panel operating voltage generally falls. This can reduce the voltage headroom available to a controller.

For PWM, lower panel voltage may narrow the gap between panel and battery voltage. That may appear favourable from a matching perspective, but total panel power can still fall.

For MPPT, the controller adjusts its operating point as panel voltage changes. However, the array must remain inside the controller’s MPPT operating range and provide enough voltage above the battery’s charging requirement.

Check hot-condition voltage as well as cold-condition Voc. A design that is safe in cold weather may still charge poorly if its operating voltage becomes too low in heat.

Partial shading and dirt

Shade from poles, antennas, cabinets, vegetation or nearby structures can alter the panel’s current-voltage curve. Dirt and uneven soiling can have a similar effect.

MPPT may recover more available energy than PWM from some uneven conditions, but it cannot restore energy that the shaded panel is not producing. Tracking performance also differs between controllers, particularly when an array presents several possible power peaks.

Good site design remains essential:

Position panels away from predictable shadows.
Consider how shadows move throughout the day and across seasons.
Avoid allowing antennas or equipment to shade even a small part of the module.
Follow the panel supplier’s cleaning and inspection requirements.
Check whether panel bypass-diode behaviour affects the proposed layout.

Tracking efficiency is not overall system efficiency

An MPPT controller may quote a high tracking efficiency, but this indicates how closely its algorithm operates to the panel’s available maximum power point. It does not describe the efficiency of the complete solar system.

Overall delivered energy is also affected by:

DC-to-DC conversion losses
Controller standby consumption
Cable resistance and connector losses
Panel temperature and orientation
Shading and soiling
Battery charging losses
Battery temperature
BMS operation
Output conversion losses
Load start-up peaks and duty cycles

A high tracking-efficiency figure therefore cannot be treated as a universal percentage gain over PWM. In some systems the difference may be important; in a well-matched low-power system it may be modest.

Controller standby demand

The controller consumes some energy to power its electronics, display, communications and monitoring functions. This quiescent or self-consumption current matters in small systems and during long low-solar periods.

As a hypothetical calculation, a controller drawing 20mA continuously from a 12.8V battery would consume approximately:

0.02A × 12.8V × 24 hours = 6.14Wh per day

That is an assumed example, not a Maxsol specification. Obtain standby figures for the exact controller, including any display, relay or communications module. If the controller has different sleep and active modes, check the conditions under which each figure applies.

LiFePO4 charging profile and BMS checks

An MPPT controller is not automatically suitable for LiFePO4 simply because it can regulate voltage. PWM is not automatically unsuitable either. The decisive issue is whether the controller provides the battery manufacturer’s required charging profile and protection behaviour.

Confirm:

Bulk or constant-current charging voltage
Absorption or constant-voltage setting
Absorption duration
Float setting or whether float should be disabled
Recharge or recovery threshold
Maximum permitted charge current
Temperature compensation behaviour
Low-temperature charging restrictions
Equalisation settings
Recovery after BMS disconnection

Many lead-acid controller profiles include equalisation or temperature compensation that may not be appropriate for a LiFePO4 battery. Do not select a generic “lithium” mode without checking its actual voltage and timing settings.

The battery management system provides cell-level protection, but it should not be treated as the normal charging regulator. If the BMS repeatedly disconnects the battery because the controller is using unsuitable settings, the system has not been coordinated correctly.

Cold-temperature charging also needs specific attention. Verify the battery’s permitted charging-temperature range and whether charging is blocked by the battery, controller or an external temperature sensor. Do not assume that discharge permission means charging is also permitted.

For more detail on chemistry-specific considerations, see the guide to LiFePO4 battery benefits and limits for solar CCTV.

Compare total cost and controller limits

The least expensive controller is not always the lowest-cost system. Conversely, MPPT is not automatically the best financial choice for every small installation.

Decision factor	PWM controller	MPPT controller
Initial controller cost	Usually lower	Usually higher
Panel-to-battery voltage matching	Must be close	Allows a wider voltage difference within rated limits
Use of higher-voltage panels	Limited benefit	Can convert surplus voltage into charging current
Long PV cable runs	Higher current may require thicker cable	Higher array voltage may reduce cable current
Seasonal voltage adjustment	Basic regulation	Tracks changing panel operating point
Partial shading	Cannot recover unavailable panel power	May improve extraction in some conditions, but results depend on controller and array
Standby demand	Often simple, but must be checked	May be higher due to conversion and tracking electronics
Charge-profile flexibility	Model-dependent	Model-dependent; MPPT does not guarantee LiFePO4 suitability
Controller sizing	PV and battery current limits apply	PV voltage, power, input current and charge-current limits all apply
Best-value use case	Small, closely matched, budget-led system	Voltage-mismatched, space-constrained or energy-critical system

Lifecycle cost may include more than the controller:

Additional panel capacity needed to compensate for poor voltage matching
Thicker PV cabling required by a lower-voltage, higher-current design
Larger enclosure and thermal-management requirements
Replacement labour at a remote site
Travel and access costs for troubleshooting
Energy consumed by the controller itself
Monitoring hardware or communications modules
Consequences of inadequate charging during poor solar conditions

Also determine what happens when the array can produce more power than the controller can process. Some controllers safely limit or “clip” output when correctly configured; others impose strict PV power limits. Follow the current datasheet rather than assuming oversizing is permitted.

Nominal battery watt-hours are not the same as usable energy delivered to the load. Charging losses, protection thresholds, temperature, ageing, cable losses and load conversion all affect the energy available in practice. A controller choice alone cannot guarantee autonomy, service life or continuous 24/7 operation.

When each controller approach is appropriate

Choose PWM when these conditions apply

PWM can be a sensible choice when:

The system is small and non-critical.
Panel operating voltage is closely matched to battery charging voltage.
There is enough panel area to meet the energy requirement without maximum harvesting.
Cable runs are short and voltage drop is controlled.
The battery profile is explicitly supported.
The expected environmental temperature range has been checked.
The lower initial cost has more value than design flexibility.
Maintenance or replacement access is straightforward.

Do not use PWM merely because the battery is nominally 12V. The panel voltage and battery charging voltage still need to be compared under operating conditions.

Choose MPPT when these conditions apply

MPPT is generally more appropriate when:

The panel’s maximum-power voltage is materially higher than battery voltage.
Higher PV voltage is needed to control current over a longer cable run.
Panel mounting area is limited.
Winter, heat or variable irradiance makes energy collection more demanding.
The load is operationally important.
Future array changes may be needed.
LiFePO4 charging requires configurable voltage and timing settings.
Monitoring or communications functions are part of the project requirement.

MPPT should still be rejected if its voltage range, current rating, battery settings, environmental rating or standby consumption does not suit the design.

Outdoor solar system examples using MPPT

Maxsol documents two outdoor solar system configurations that can serve as selection references rather than as universally compatible bundles.

The CS8040 80W 45Ah 576Wh solar system documents an 80W monocrystalline panel, 12.8V 45Ah 576Wh LiFePO4 battery, MPPT controller and three DC12V outputs. RS485 is optional.

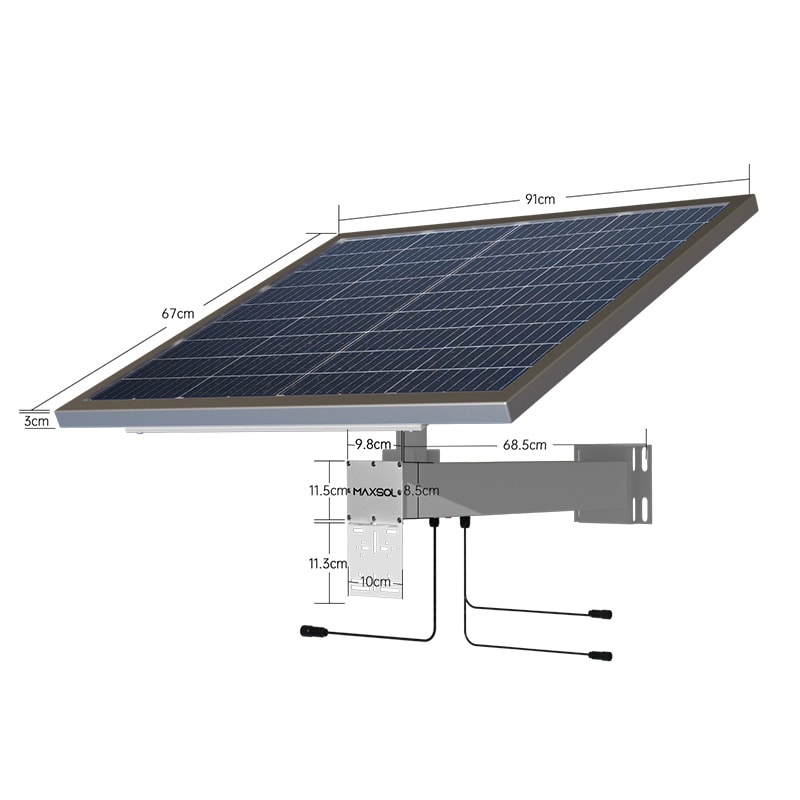

The CS12060 120W 60Ah 768Wh solar system documents a 120W monocrystalline panel, 12.8V 60Ah 768Wh LiFePO4 battery, MPPT controller and three DC12V outputs. RS485 is optional.

These configurations do not establish guaranteed runtime or suitability for a particular camera, radio, router or surveillance site. Before selection, verify the current datasheet and supplied configuration for:

Controller PV voltage, current and power limits
Maximum charging current
LiFePO4 charging settings
Battery charging-temperature limits
Battery and controller protection behaviour
Continuous and peak load demand
DC output count and rating
RS485 inclusion where management is required

Practical selection checklist

Before approving either controller type, record the following values:

Load energy: Average and peak watts, operating hours and start-up demand.
Battery requirements: Nominal voltage, charging profile, current limit and temperature range.
Panel data: Voc, Vmp, Isc, Imp, power rating and temperature coefficients.
Array arrangement: Number of panels in series and parallel.
Cold-voltage result: Maximum corrected array Voc.
Hot-voltage result: Minimum expected operating voltage.
Controller limits: PV voltage, input current, power and battery-side charge current.
Cable design: Length, conductor size, voltage drop and protection.
Environmental conditions: Temperature, shade, dust, moisture and enclosure heat.
Controller consumption: Active, sleep and communications demand.
Maintenance implications: Access, monitoring and replacement cost.
Expansion margin: Only where the controller documentation permits it.

For most professional outdoor CCTV and network sites, MPPT provides greater design flexibility and makes better use of higher-voltage panels. PWM remains valid where the electrical match is close and the simpler, lower-cost design meets the energy requirement.

As a practical next step, compare the linked Maxsol models against the required output port count, actual load, equipment and cable distance, panel and battery power, environmental conditions, and local or RS485 management requirements. Confirm every limit against the current datasheet and supplied configuration before procurement.
