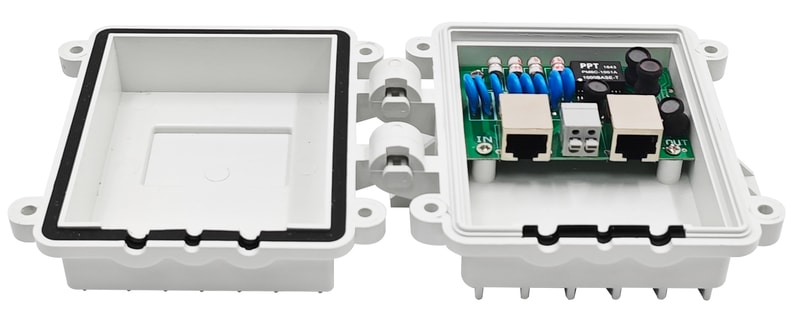

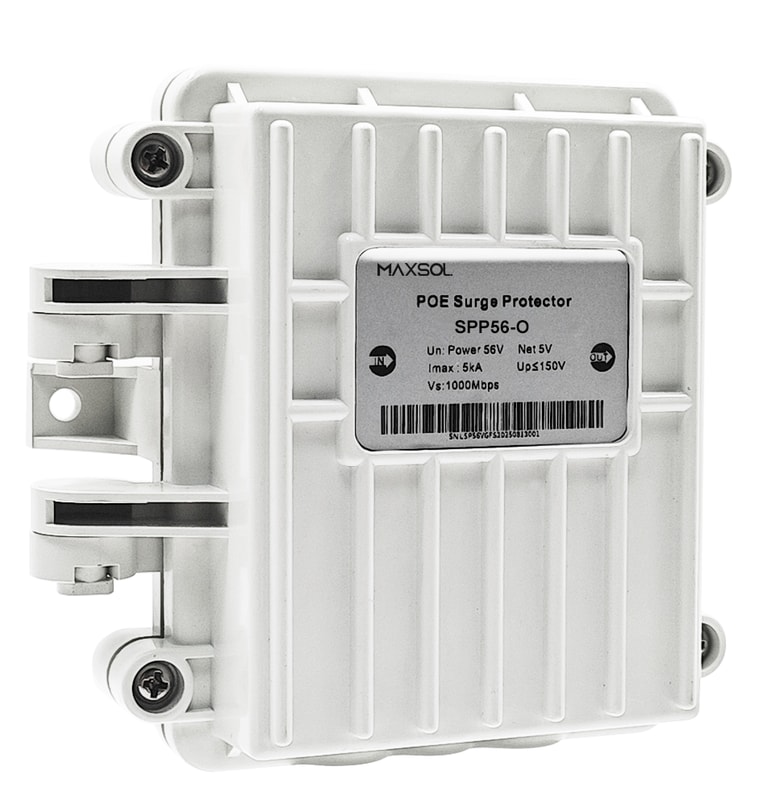

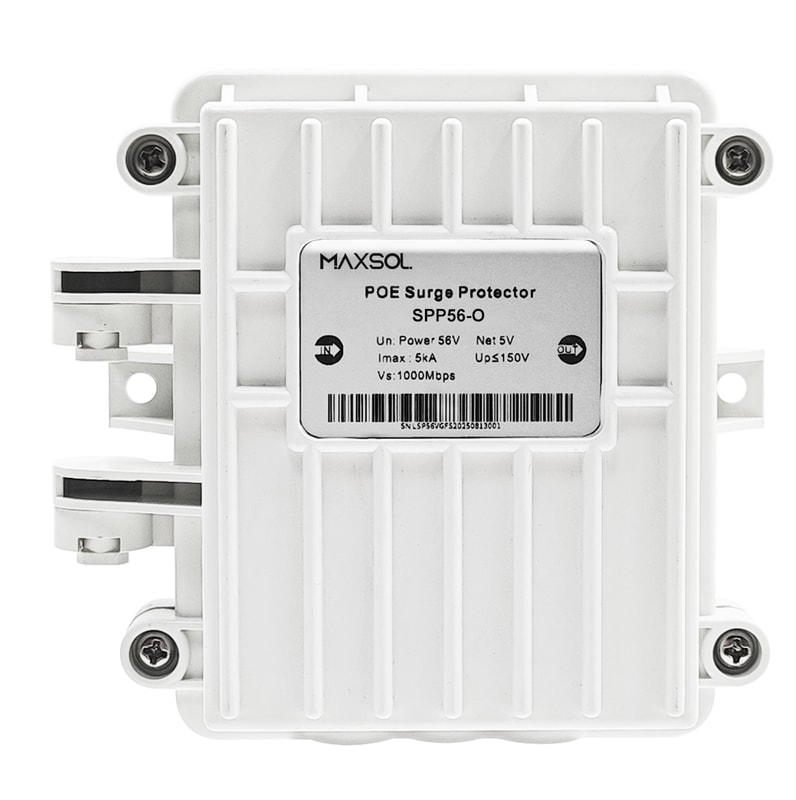

IP65 Outdoor Gigabit PoE Surge Protector
IP65 outdoor PoE surge protector with GDT and TVS protection for Gigabit Ethernet power and data lines in CCTV, wireless, and industrial networks.
Key features
- GDT and low-capacitance TVS multi-stage surge protection
- Common-mode and differential-mode protection for power and data
- Gigabit Ethernet support with low insertion loss
- IP65 stainless-steel enclosure for indoor or outdoor installation
- Fast response and multi-strike surge protection
Specification
Electrical Protection
- Model
- SPP56-O
- Nominal Operating Voltage
- 56V
- Maximum Continuous Operating Voltage
- 65V
- Nominal Discharge Current
- 5kV / 2.5kA, 8/20μs
- Maximum Discharge
- 5kV, 8/20μs
- Limiting Voltage
- Line-line ≤100V; line-PE ≤150V
- Response Time
- ≤1ns
- Load Current
- 850mA
Network & Physical
- Transmission Rate
- 1000Mbps
- Insertion Loss
- ≤0.3dB
- Protected Lines
- Pins 1–8
- Application
- 10/100/1000Base-T
- Dimensions
- 155 × 135 × 55mm
- Weight
- 230 ± 5g
- Enclosure
- IP65 stainless steel
- Operating / Storage Temperature
- -20°C to +60°C / -40°C to +85°C
- Compliance
- IEC 61000, RoHS, IEEE 802.3af
Electrical Protection
- Model
- SPP56-O
- Nominal Operating Voltage
- 56V
- Maximum Continuous Operating Voltage
- 65V
- Nominal Discharge Current
- 5kV / 2.5kA, 8/20μs
- Maximum Discharge
- 5kV, 8/20μs
- Limiting Voltage
- Line-line ≤100V; line-PE ≤150V
- Response Time
- ≤1ns
- Load Current
- 850mA
Network & Physical
- Transmission Rate
- 1000Mbps
- Insertion Loss
- ≤0.3dB
- Protected Lines
- Pins 1–8
- Application
- 10/100/1000Base-T
- Dimensions
- 155 × 135 × 55mm
- Weight
- 230 ± 5g
- Enclosure
- IP65 stainless steel
- Operating / Storage Temperature
- -20°C to +60°C / -40°C to +85°C
- Compliance
- IEC 61000, RoHS, IEEE 802.3af
