24W 2GE Gigabit PoE Injector
Model: POE48-24
12–36V DC to Adjustable PoE Power Converter
High-efficiency DC-to-PoE converter with 12–36V input, adjustable 12–57V PoE output, Gigabit Ethernet, and up to 30W continuous 48V operation.
Key features
- Wide 12–36V DC input for solar and low-voltage power systems
- Adjustable 12–57V PoE output with LCD voltage display
- Gigabit 10/100/1000Mbps Ethernet port
- Up to 94% conversion efficiency
- Supports 24V wireless CPE and 48V IP camera deployments
Specification
Electrical Parameters
- Model
- POE24V
- DC Input
- 12–36V DC
- PoE Output
- 12–57V
- Isolation Transformer Current
- 0.8A
- 12V Input to 24V Output
- Up to 2A / 48W
- 12V Input to 48V Output
- Up to 0.8A / 38.4W; continuous load ≤30W
- Conversion Efficiency
- Up to 94%
Network & Interfaces
- Data Rate
- 10/100/1000Mbps
- PoE Pin Assignment
- Data: pins 1–8; power: 1/2/4/5(+), 3/6/7/8(-)
- PoE Port
- RJ45

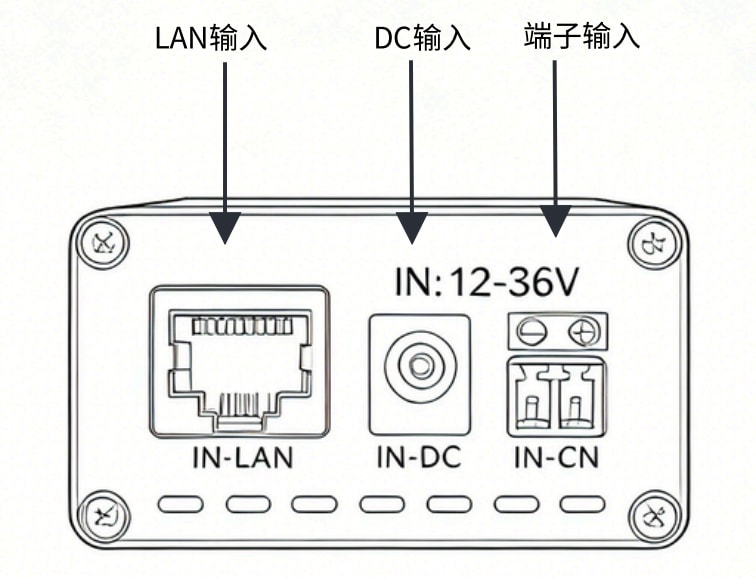

- LAN Input
- RJ45
- DC Input
- 5.5 × 2.1mm DC jack
- Terminal Input
- 2-pin 3.81mm terminal block
- Display
- LCD output-voltage display
- Certification
- CE, MSDS, UN38.3, DGM, sea transportation certificate
Electrical Parameters
- Model
- POE24V
- DC Input
- 12–36V DC
- PoE Output
- 12–57V
- Isolation Transformer Current
- 0.8A
- 12V Input to 24V Output
- Up to 2A / 48W
- 12V Input to 48V Output
- Up to 0.8A / 38.4W; continuous load ≤30W
- Conversion Efficiency
- Up to 94%
Network & Interfaces
- Data Rate
- 10/100/1000Mbps
- PoE Pin Assignment
- Data: pins 1–8; power: 1/2/4/5(+), 3/6/7/8(-)
- PoE Port
- RJ45
- LAN Input
- RJ45
- DC Input
- 5.5 × 2.1mm DC jack
- Terminal Input
- 2-pin 3.81mm terminal block
- Display
- LCD output-voltage display
- Certification
- CE, MSDS, UN38.3, DGM, sea transportation certificate
