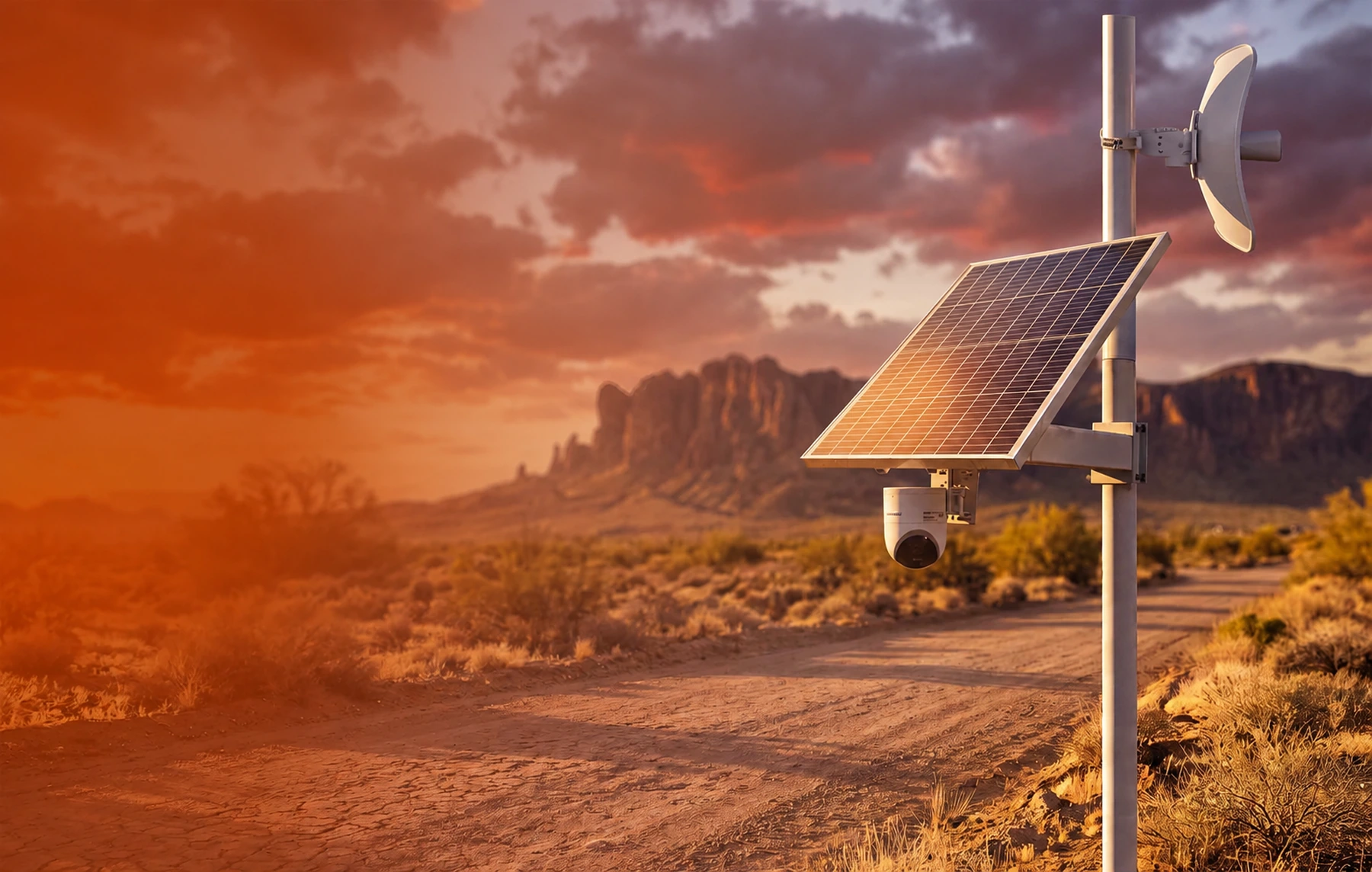

Outdoor Solar Power for IP Surveillance & Wireless CPE
Off-Grid. Self-Sustaining. Scalable.
Your complete solar-powered security hub for
critical remote assets.
Application Background of the Solution

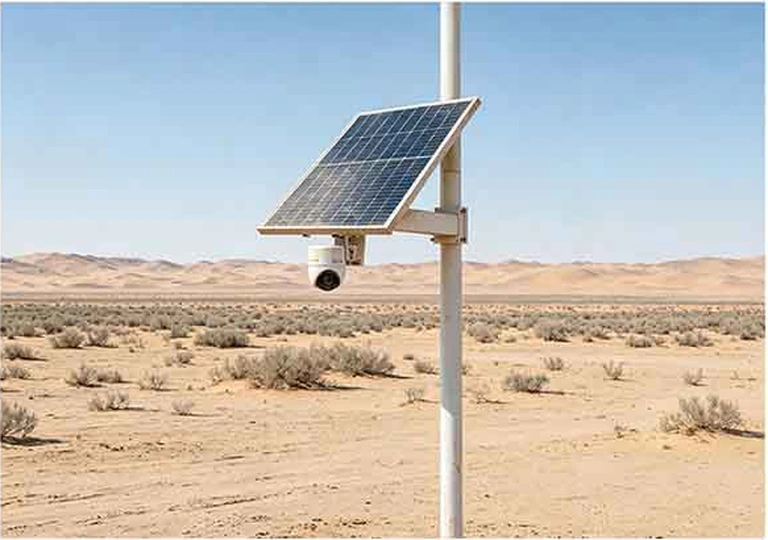

In scenarios such as remote farmlands, forest areas, mining zones, rivers, construction sites, border points, and remote roads where there is no municipal power supply and no wired optical fiber, there are two major pain points when deploying surveillance cameras:

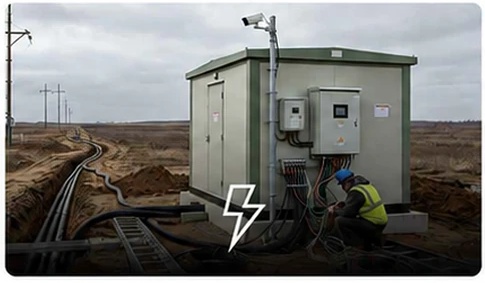

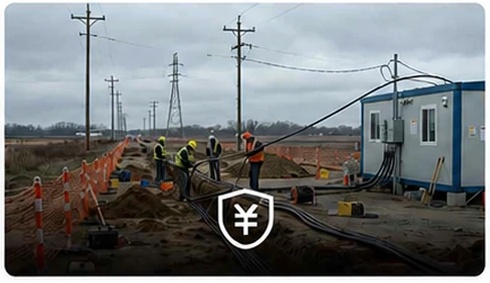

There is no access to the main power supply, and the cost of wiring construction is high while the approval process is complicated.
The video footage captured by the camera needs to be remotely transmitted to the monitoring center over a long
distance. It requires a wireless CPE bridge for point-to-point wireless transmission.
Traditionally, solar panels, batteries, controllers, and bracket components were purchased separately, which re-
sulted in cumbersome wiring, poor water resistance, and low compatibility. The MAXSOL CS12060 integrated solar
power supply system solves the all-day stable power supply needs of IPC camera equipment + wireless CPE bridge in one go.
Front-end load power consumption calculation
Power consumption of a single device
Normal operating power consumption 2W - 5W
Total power consumption of the entire system
Total power consumption during full-load synchronous operation = Maximum CPE power of 7W + Maximum IPC power of 5W = 12W. The average continuous operating power consumption is stable at around 10W. Power consumption for 24-hour uninterrupted operation in a single day: 10W × 24h = 240Wh (0.24 kWh / day).

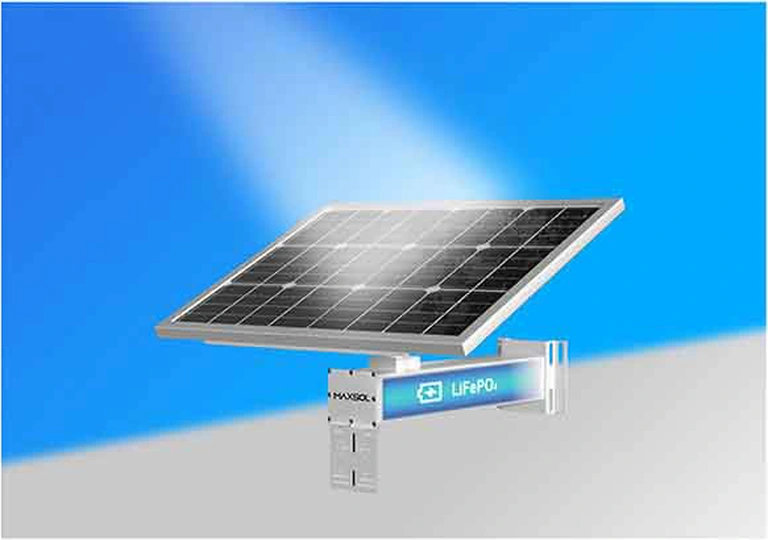

Recommended Solution — CS12060
120W Mono Solar Panel + 60Ah LiFePO4 Battery (720Wh)
12V DC / 24V & 48V PoE Output(by PoE injector)
Powers IP Camera + Wireless CPE 24/7
Built-in MPPT & IP65 Waterproof Design
Ideal for Remote CCTV & Wireless Surveillance

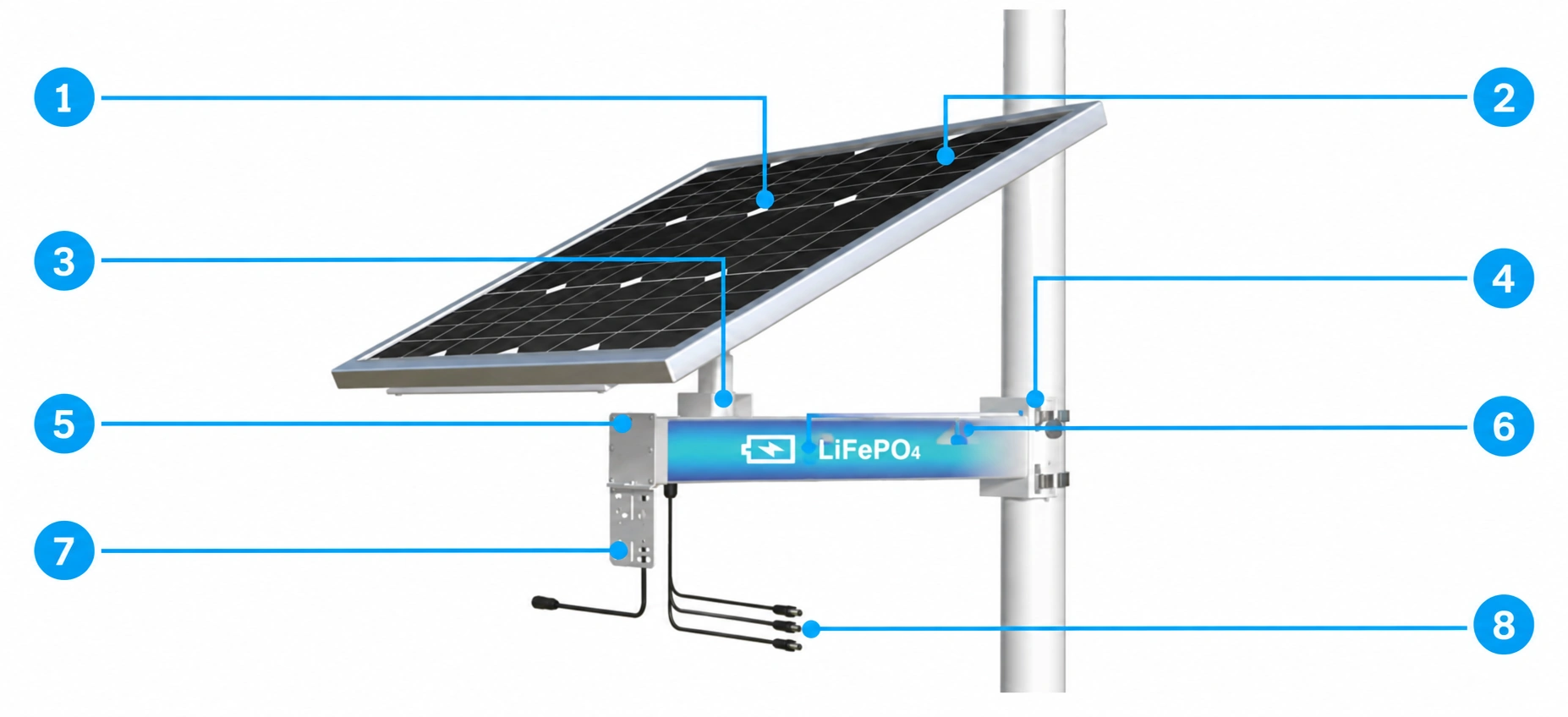

- Grade A High-Efficiency Mono Solar Panel
25+ Years Lifespan · 21.6% Conversion Efficiency
- MPPT Controller Boosts Charging Efficiency
Optimizes solar power, reduces losses, and improves charging efficiency by 20% compared with PWM controllers.
- Solar Panel Rotating Stand
Rotates 360 degrees to simplify installation in different environments.
- Multi-Mounting Support
Supports wall-mount or pole-mount installation for different scenarios.

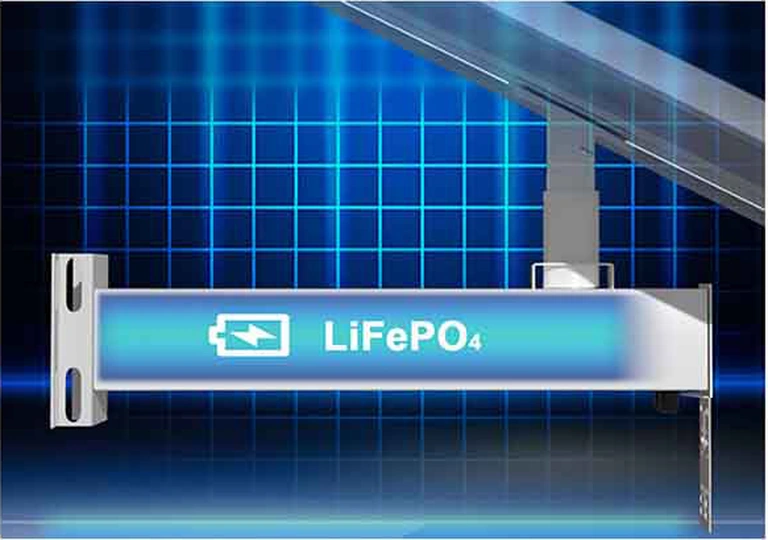

- Outdoor IP65 Battery Box
A durable enclosure built for harsh temperature environments and a longer service life.
- Grade A Full-Capacity LiFePO4 Battery
A+ grade iron phosphate battery with high safety and strong high- and low-temperature resistance.
- Mounting Plate for Device Installation
Devices such as IP cameras or 4G routers can be installed here easily.
- DC12V Output to IP Cameras
Can be customized to 24V or 48V DC output for 4G routers, outdoor APs, CPEs, PoE switches, and more.
| Item | Specification/Calculation |
|---|---|
| Solar Panel | 120W Mono Solar Panel |
| Peak Sun Hours | 5 Hours |
| System Efficiency | 60% |
| Daily Solar Output | 60Ah LiFePO4 (720Wh) |
| Battery Capacity | 120W x 5h x 60% = 360Wh/day |
| System Load | IP Camera + Wireless CPE = 10W |
| Daily Power Consumption | 10W x 24h = 240Wh/day |
| Battery Backup | 720Wh ÷ 10W = 72 hours = 3 days |

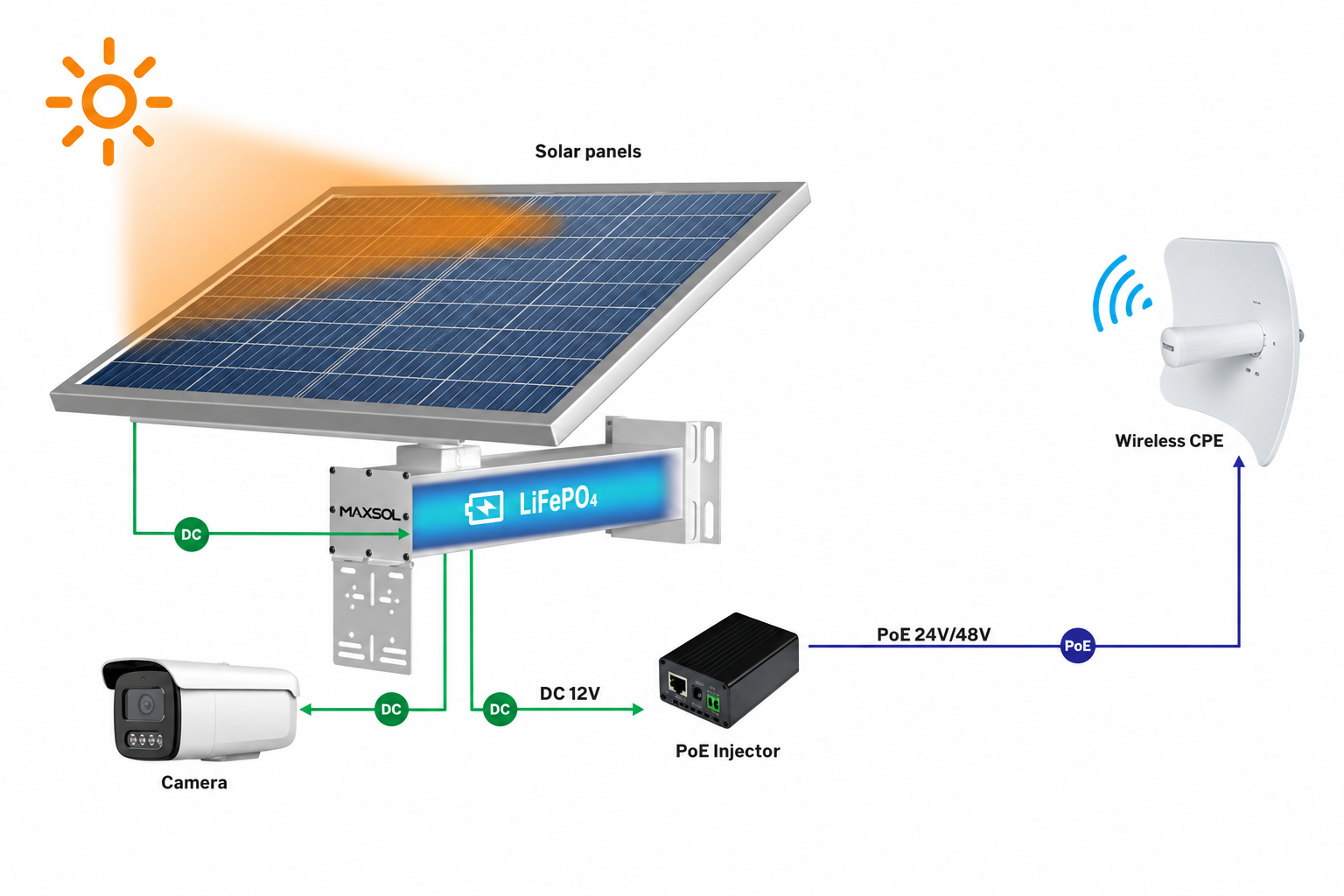

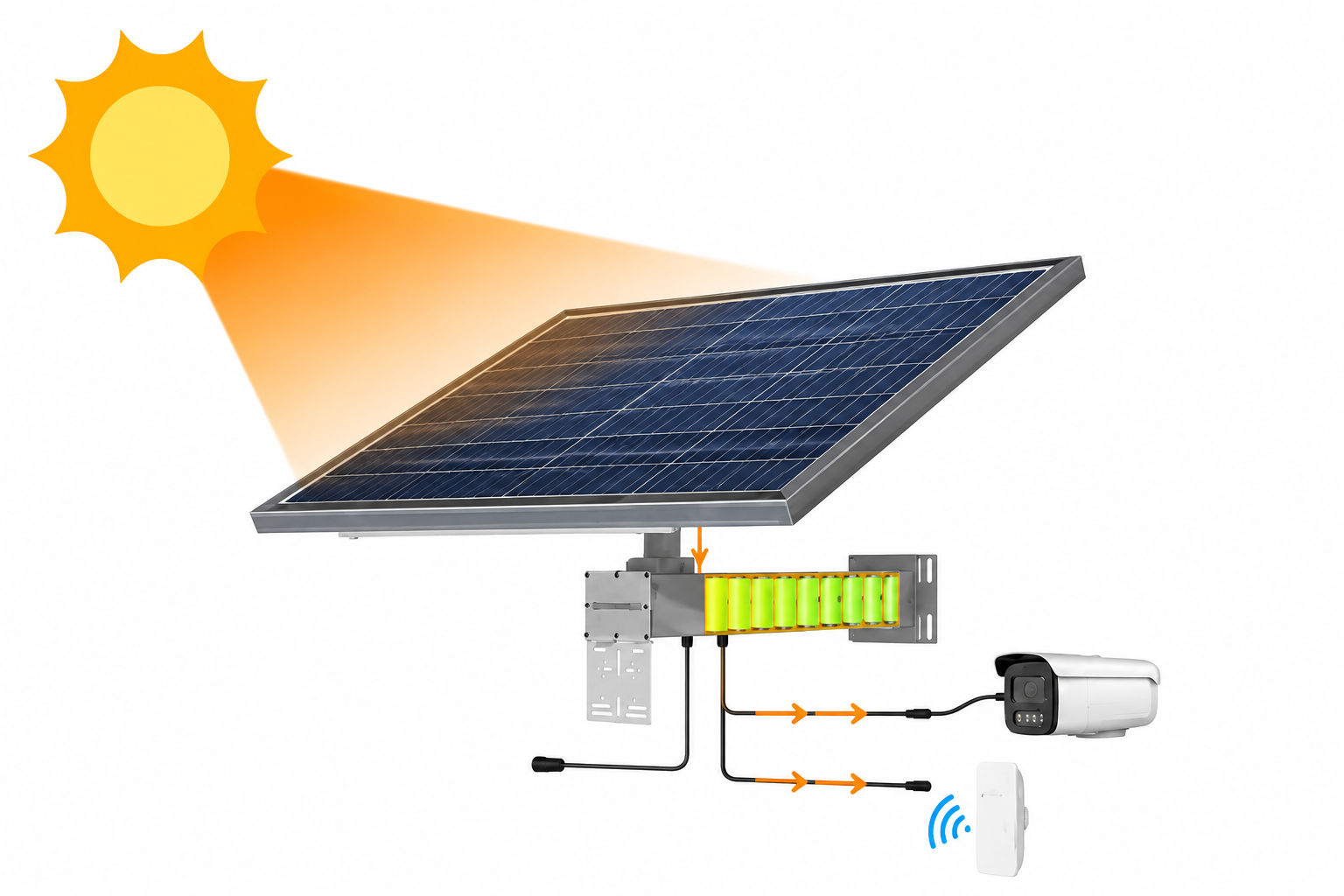

Complete System Architecture
Power Generation Unit: CS12060 120W solar panel — absorbs solar energy and converts it into direct current for input to the controller.
Energy Storage Control Unit: Integrated enclosure (MPPT controller + 60Ah LiFePO4 battery).

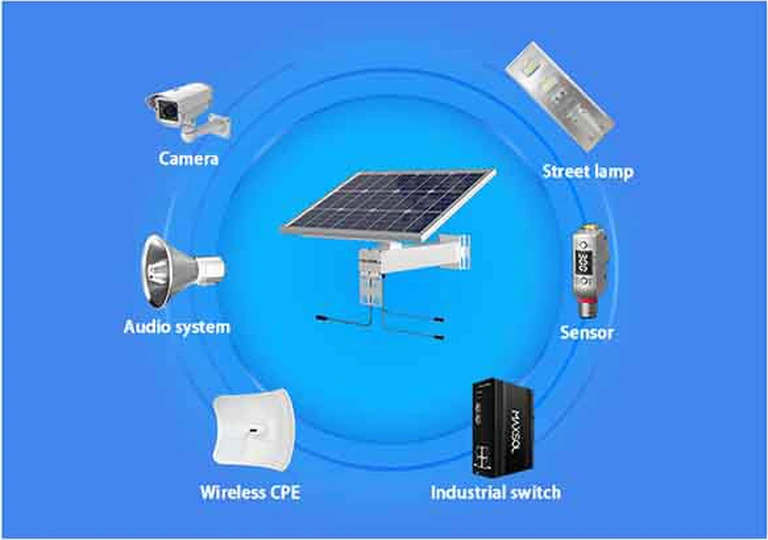

- Solar Panels
- Wireless CPE
- IP Cameras
- PoE Injector
Installation accessories: The same set of integrated metal upright pole brackets, solar panels, cameras, and CPE can be uniformly fixed on the same upright pole, making the construction simple and aesthetically pleasing.
Core advantages of the solution
One Cable Powers Everything
A single waterproof PoE line runs both IP cameras and wireless CPEs. Eliminates dual solar kits, extra wiring, and mounting labor.

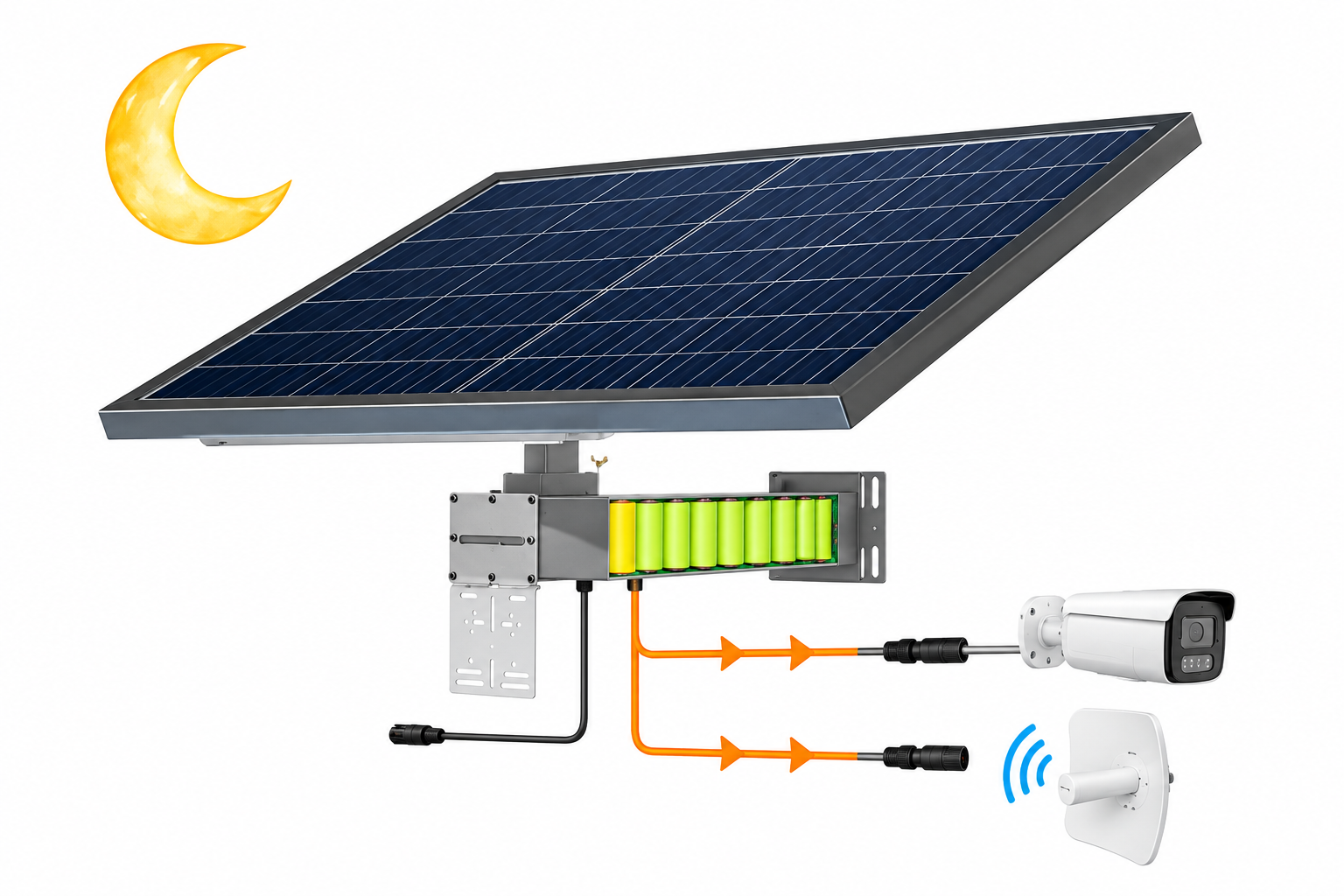

72-Hour Battery Backup
Oversized battery bank rides through 3 days of storms. True 24/7 off-grid operation where grid power doesn't reach.

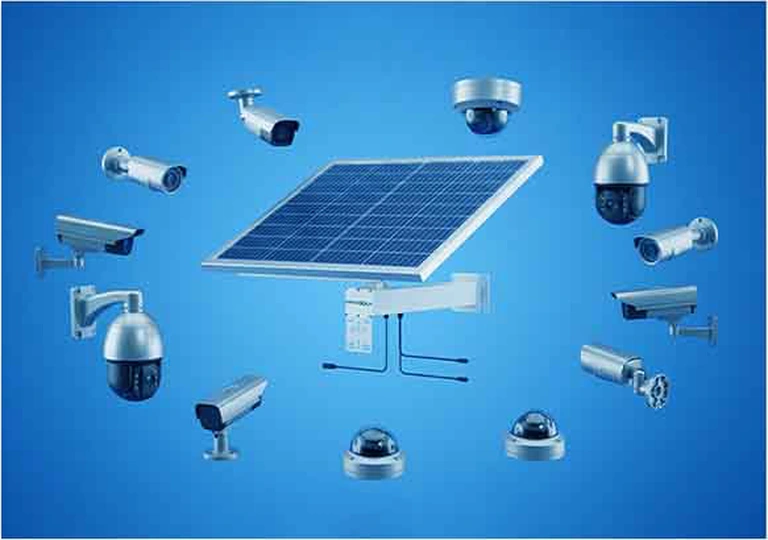

Universal Compatibility
Switchable 24V/48V PoE fits any brand of IP camera or wireless bridge. No proprietary adapters needed.
30-Minute Setup
Pre-integrated solar panel, battery, charge controller, and bracket ship as one kit. Standard waterproof connectors. One person, one pole, plug and play.
Built for Harsh Environments
Powder-coated steel resists UV, rust, and salt spray. Designed for farms, mines, and coastal sites.
Zero Operating Costs
100% solar. No electricity bills. Minimal maintenance — just an annual panel wipe-down.
Designed for Diverse Outdoor Applications
Reliable connectivity and backup power for critical infrastructure deployments.

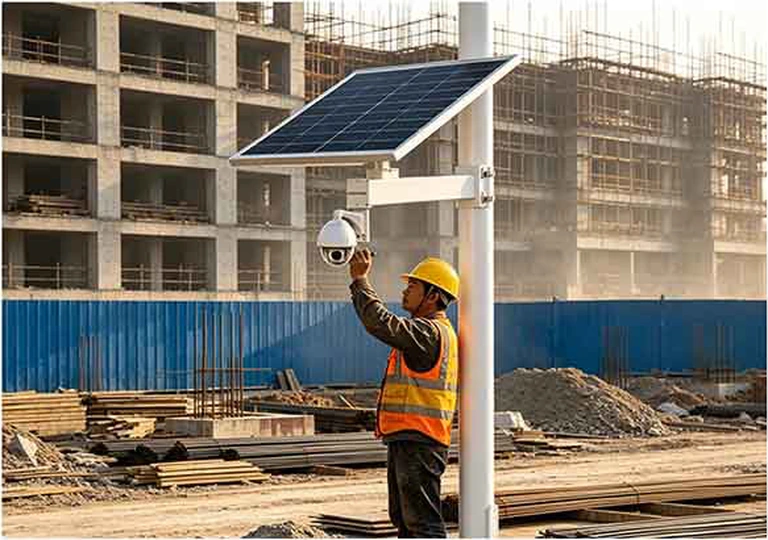

Construction site
Remote rural area
Farm
Highway
