30W Solar Power System for Industrial CCTV
Deploy 30W solar power for CCTV with 192Wh LiFePO4 battery & MPPT. IP65 industrial design ensures stable off-grid performance. Ideal for security integrators.
Key features
- CCTV Solar Power Supply 30W15AH 192WH Solution
- Solar panel: 30W monocrystalline silicon solar panel
- Battery: 15AH12.8V LifePO4 Battery, total: 192WH
- MPPT Solar Controller, 3*DC12V Output Port
- Installation Bracket for Solar Panel and Battery
- Other accessories: Battery Mount, Screws, DC Cable, etc
- Optional Selection: RS485
Specification
Solar Panel Specification
- Model
- CS3015 (30W15AH12.8V)
- Communication interface
- Mono-crystalline silicon
- Maximum power
- 30W (1000W/m² standard lighting test conditions)
- Open circuit voltage
- 22VDC
- Maximum current
- 4.4A

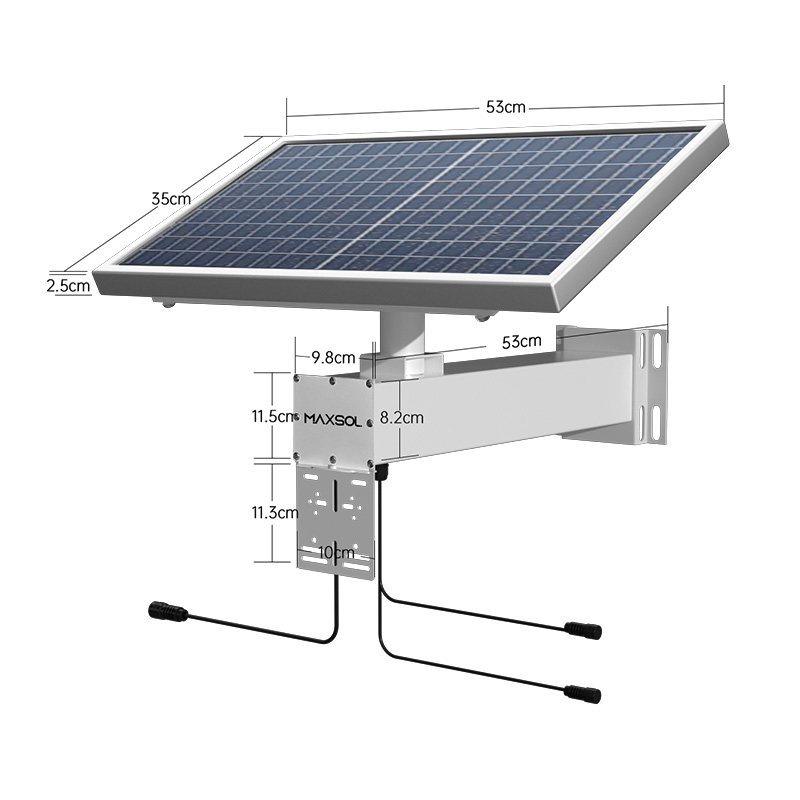

- Solar Panel Dimensions
- 530mm*350mm*25mm
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/15AH (192WH)
- Charging indication
- LED status indicator
- Charging voltage
- 15-18VDC
- Maximum charging current
- 6A
- Output voltage
- 12±0.2VDC
- Maximum output current
- 3A (total of 2 outputs)
- Battery pack overcharge voltage
- 14.6VDC
- Battery pack over-discharge voltage
- 10VDC
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 2 outputs in total
- Power on power consumption
- 0.5±0.1W (normal temperature, no load when powered on)
- Waterproof level
- IP65
- Storage temperature
- 0~45℃
- Operating temperature
Charging: -10~50℃
Discharging: -10~60℃
- Battery case Dimensions
- 500mm*98mm*82mm
Battery life and charging
- Battery life when powered off
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Battery life when powered on
- About 25 days (normal temperature, no load)
- Battery life with load
- About 1-2 days (room temperature, no charging, mobile camera mounted)
- Recharge time (0~100% battery)
- Conditions: normal temperature, 30W photovoltaic panel, standard light duration 4~5 hours/day
All-in-one Package
- Size
- 730mm*380mm*240mm
- Weight (Include bracket and accessories)
- 7.9KG
Solar Panel Specification
- Model
- CS3015 (30W15AH12.8V)
- Communication interface
- Mono-crystalline silicon
- Maximum power
- 30W (1000W/m² standard lighting test conditions)
- Open circuit voltage
- 22VDC
- Maximum current
- 4.4A
- Solar Panel Dimensions
- 530mm*350mm*25mm
Battery Specification
- Solution
- MPPT (input maximum power tracking algorithm), constant voltage output,
- Battery capacity
- 12.8V/15AH (192WH)
- Charging indication
- LED status indicator
- Charging voltage
- 15-18VDC
- Maximum charging current
- 6A
- Output voltage
- 12±0.2VDC
- Maximum output current
- 3A (total of 2 outputs)
- Battery pack overcharge voltage
- 14.6VDC
- Battery pack over-discharge voltage
- 10VDC
- Input interface
- Photovoltaic aviation plug
- Output interface
- DC5.5mm diameter standard male plug, 2 outputs in total
- Power on power consumption
- 0.5±0.1W (normal temperature, no load when powered on)
- Waterproof level
- IP65
- Storage temperature
- 0~45℃
- Operating temperature
Charging: -10~50℃
Discharging: -10~60℃
- Battery case Dimensions
- 500mm*98mm*82mm
Battery life and charging
- Battery life when powered off
- 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
- Battery life when powered on
- About 25 days (normal temperature, no load)
- Battery life with load
- About 1-2 days (room temperature, no charging, mobile camera mounted)
- Recharge time (0~100% battery)
- Conditions: normal temperature, 30W photovoltaic panel, standard light duration 4~5 hours/day
All-in-one Package
- Size
- 730mm*380mm*240mm
- Weight (Include bracket and accessories)
- 7.9KG
