Datasheet
Network Switch

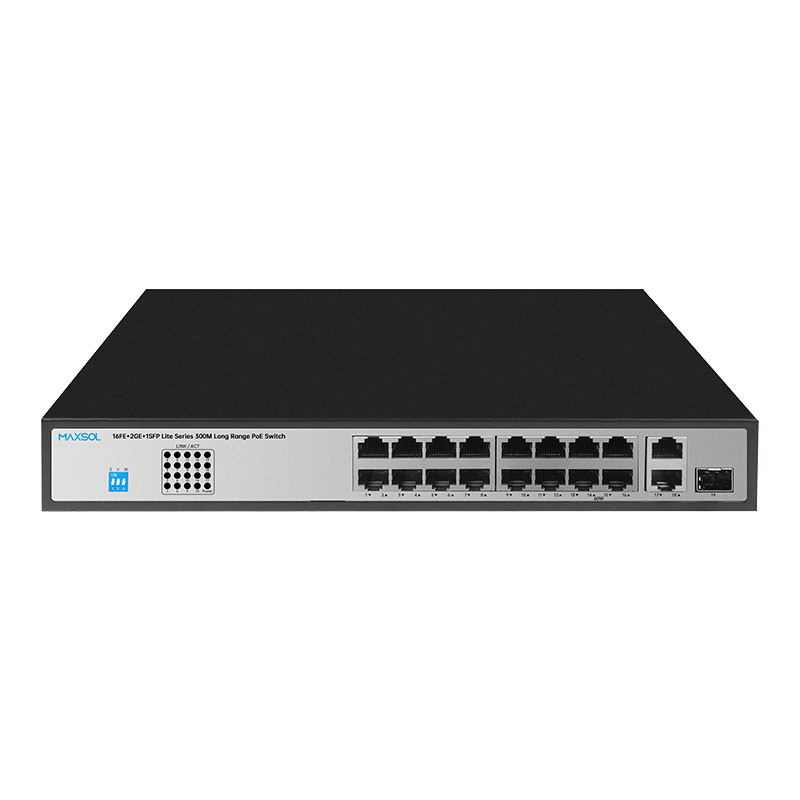

16-Port Fast Ethernet PoE+ Switch with Gigabit Uplinks
ModelPS11602FE-L
16-port Fast Ethernet PoE+ switch with 2 Gigabit RJ45 uplinks, 1 SFP slot, 200W power supply, VLAN isolation, Extend mode and PoE watchdog.
Features
- 16FE+2GE+1GF Uplink Lite Series 300M Long Range PoE Switch
- IEEE 802.3af/at compliant, up to 30 W per PoE port
- Internal power adapter supply 200W
- Support DIP switch to VLAN / Extend 300M / Watchdog
- Support AI network self-healing (watchdog) function
- Support desktop and wall-mounted, and rack-mount installation
- Metal case, internal power supply, excellent heat dissipation performance for long-term stable operation
- 6KV surge protection function
PS11602FE-L
Specification
Interfaces
- Model
- PS11602FE-L
- Fixed Port
16*10/100Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX RJ45 ports (Data)
1*100/1000Base-X uplink SFP fiber slot (Data)
- Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000base-X;
IEEE802.3x.
- Ethernet Port Feature
- 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
- Fiber Port Feature
- Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
- Forwarding Mode
- Store and Forward
PoE
- POE Port
- Port 1-16 support PoE @ IEEE802.3af/at
- Feature
With the Dial code switch,
E: AI Extend 300meters transmission;
V: Turn on, 1-16 Port support each port Isolation & VLAN;
Support Watchdog function by default: 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
W: Turn on, 1-16 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
- Fan
- Non-Fan, silent working status can satisfy more users with different requirement.
- PoE Standard
- IEEE802.3af/at
Switch Property
- Switching Capacity
- 9.2Gbps (non-blocking)
- Packet forwarding rate
- 6.85Mpps
- MAC address table
- 8K
- Buffer Memory
- 4M
- Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-TX: Cat5 or later UTP (≤100 meter)
- Power Supply Pin
- Default 1/2(+), 3/6(-)
- MAX / AVERAGE Power Per Port
- 30W/15.4W
- Total PWR / Input Voltage
- 200W
- Power Consumption
Standby:<5W
Full load:<200W
Physical Characteristics
- LED Indicator
Power indicator: PWR (Green)
Network indicator: 1-16(Link/Act)/ (Green),17-19(Link/Act)/ (Green)
- Power Supply
- Built-in power adaptor AC100~240V 50-60Hz,200W
- Operation TEMP / Humidity
- -20~+55°C:5%~90% RH non condensing
- Storage TEMP / Humidity
- -40~+75°C;5%~95% RH non condensing
- Dimension
- 310x205x44mm
- Net /Gross Weight
Net: <2.5kg
Gross: <3kg
- Installation Method
- desktop type, wall mounted,19-inch 1U cabinet installation
- Protection
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±6kV
- Protection Level
- IP30
Certification
- Certification
- CE, FCC, RoHS
Package Contents
- Switch
- 1 pcs
- Power cord
- 1 pcs
- Hanging Ears
- 1 pcs
- Quick installation guide
- 1 pcs
